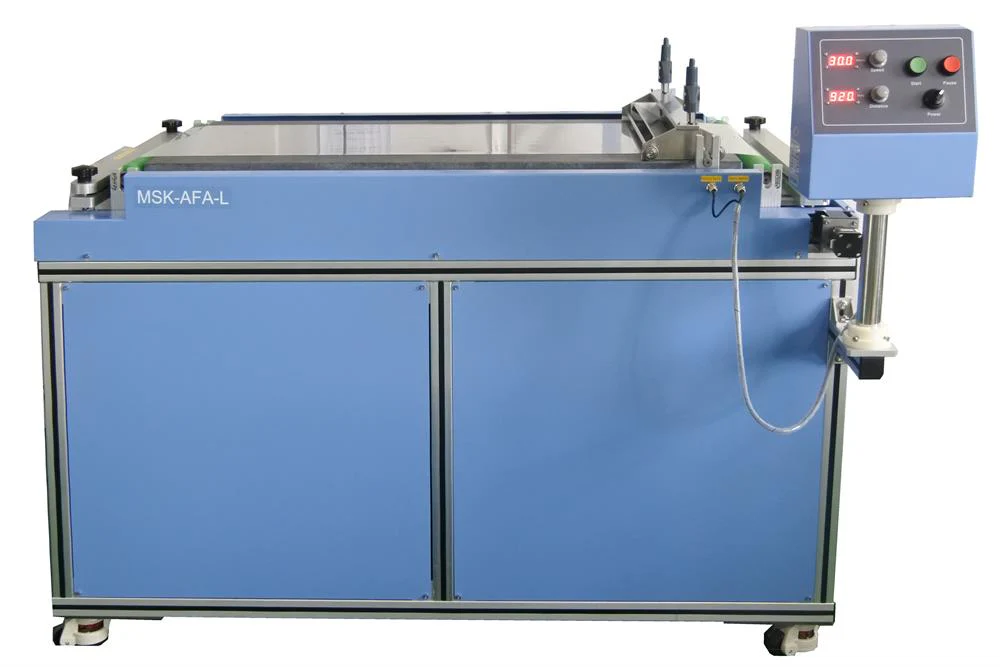

Tape Casting Machine with 22"W x 44"L Marble Bed with 500mm Film Applicator- MSK-AFA-L

Tape Casting Machine with 22"W x 44"L Marble Bed with 500mm Film Applicator- MSK-AFA-L

MSK-AFA-W500 is a Large Automatic Film Coater designed for producing films up to 500 mm Width x 1000 mm length. One pair of digital micrometers is included for adjusting film thickness up to 5 mm. It has a unique driving system to produce a smooth coating on all types of materials

SPECIFICATIONS:

Power
  • AC220V 60Hz
  • 50W
Traverse Speed
  • 500 - 5000 mm/minute
  • Accuracy: 10mm/sec
Coating Length

10 to 999 mm (adjustable in continuous mode, ±1 mm deviation, recommend ≤ 920 mm)
Coating Speed

 2 to 30 mm/s (deviation ≤ 1 mm/s)

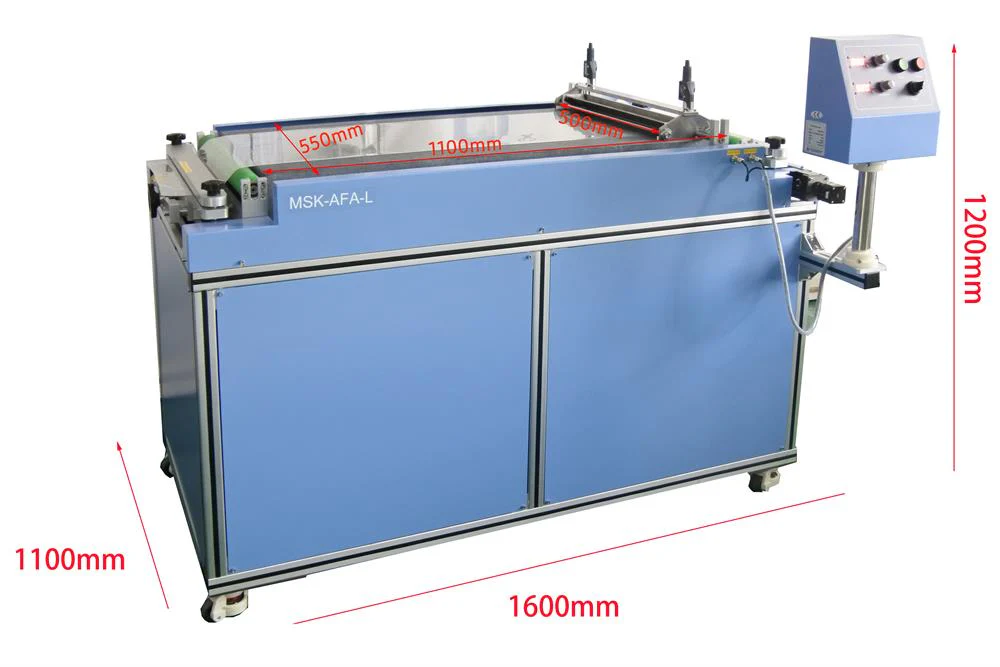

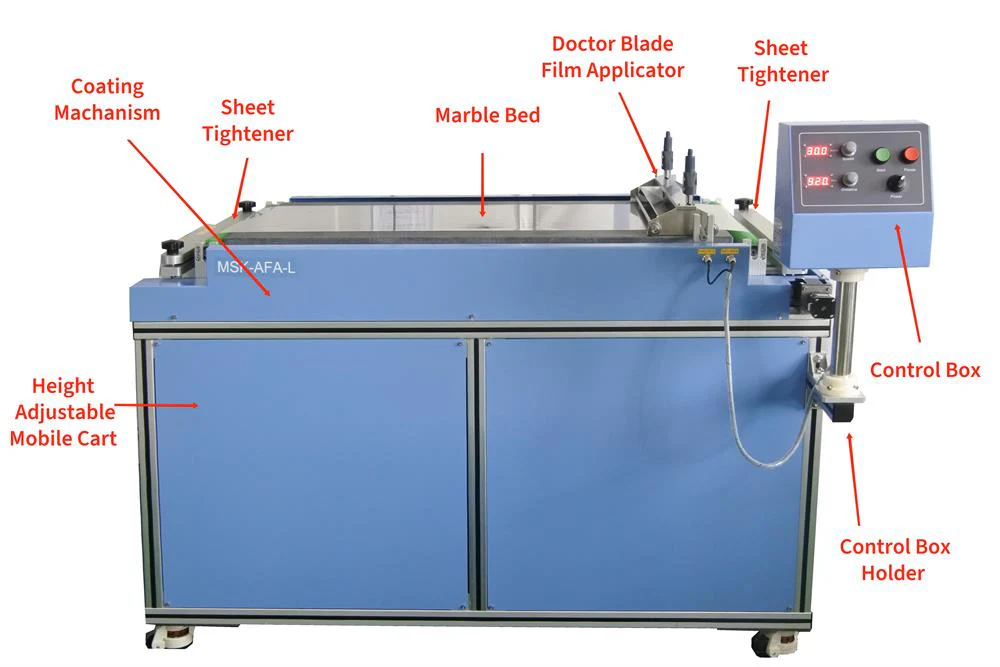

Platform
  • The platform is made of precision marble
  • Surface flatness is < +/- 2 microns
  • Area: 550 mm width x 1100 mm Length
  • One tightened fixture built-in right side for fixing the substrate
  • Magnetic clampings are installed on two sides of the stage.
  • One tray is included in the left end to collect The residual slurry
  • The platform is installed on the mobile cart with the wheel height adjustable.

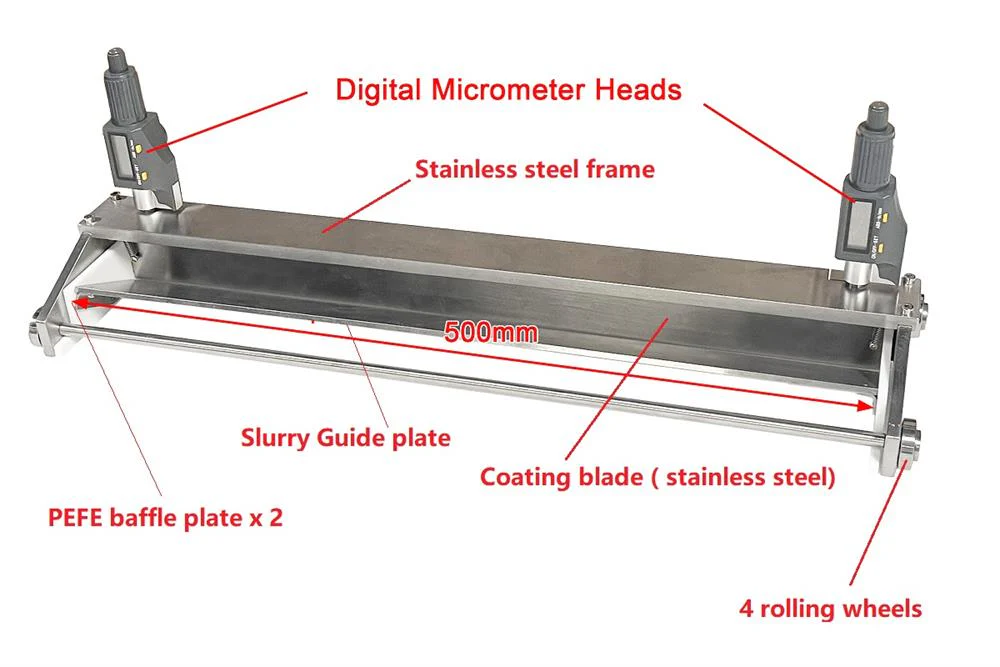

Film Applicator
  • One doctor-blade Film Applicator with 4 precision rolling wheels for easy moving
  • PEFE baffle plats with slurry guide plates is put inside the frame ( see picture left for details)
  • Standard Width 500 mm
  • Coating thickness accuracy: +/- 5 microns or 10% of film thickness
Optional for slot-die coating
  • 500 mm width Slot die coating head is available as the picture left at an extra cost.
  • This coater can be upgraded up to 650 mm width x 2000 mm length slot-die coating. Please contact us for details
Heating cover (Extra Cost)

  • Optional top-side heating cover is available up to 100oC for drying
Compliance
  • CE certified
  • NRTL or CSA certificate is available upon request at an extra cost.



Select Cover Feature
From $6,054.30

Original: $17,298.00

-65%
Tape Casting Machine with 22"W x 44"L Marble Bed with 500mm Film Applicator- MSK-AFA-L—

$17,298.00

$6,054.30

More Images

Tape Casting Machine with 22"W x 44"L Marble Bed with 500mm Film Applicator- MSK-AFA-L - Image 2
Tape Casting Machine with 22"W x 44"L Marble Bed with 500mm Film Applicator- MSK-AFA-L - Image 3
Tape Casting Machine with 22"W x 44"L Marble Bed with 500mm Film Applicator- MSK-AFA-L - Image 4

Tape Casting Machine with 22"W x 44"L Marble Bed with 500mm Film Applicator- MSK-AFA-L

MSK-AFA-W500 is a Large Automatic Film Coater designed for producing films up to 500 mm Width x 1000 mm length. One pair of digital micrometers is included for adjusting film thickness up to 5 mm. It has a unique driving system to produce a smooth coating on all types of materials

SPECIFICATIONS:

Power
  • AC220V 60Hz
  • 50W
Traverse Speed
  • 500 - 5000 mm/minute
  • Accuracy: 10mm/sec
Coating Length

10 to 999 mm (adjustable in continuous mode, ±1 mm deviation, recommend ≤ 920 mm)
Coating Speed

 2 to 30 mm/s (deviation ≤ 1 mm/s)
Platform
  • The platform is made of precision marble
  • Surface flatness is < +/- 2 microns
  • Area: 550 mm width x 1100 mm Length
  • One tightened fixture built-in right side for fixing the substrate
  • Magnetic clampings are installed on two sides of the stage.
  • One tray is included in the left end to collect The residual slurry
  • The platform is installed on the mobile cart with the wheel height adjustable.
Film Applicator
  • One doctor-blade Film Applicator with 4 precision rolling wheels for easy moving
  • PEFE baffle plats with slurry guide plates is put inside the frame ( see picture left for details)
  • Standard Width 500 mm
  • Coating thickness accuracy: +/- 5 microns or 10% of film thickness
Optional for slot-die coating
  • 500 mm width Slot die coating head is available as the picture left at an extra cost.
  • This coater can be upgraded up to 650 mm width x 2000 mm length slot-die coating. Please contact us for details
Heating cover (Extra Cost)

  • Optional top-side heating cover is available up to 100oC for drying
Compliance
  • CE certified
  • NRTL or CSA certificate is available upon request at an extra cost.



Product Information

Shipping & Returns

Description

MSK-AFA-W500 is a Large Automatic Film Coater designed for producing films up to 500 mm Width x 1000 mm length. One pair of digital micrometers is included for adjusting film thickness up to 5 mm. It has a unique driving system to produce a smooth coating on all types of materials

SPECIFICATIONS:

Power
  • AC220V 60Hz
  • 50W
Traverse Speed
  • 500 - 5000 mm/minute
  • Accuracy: 10mm/sec
Coating Length

10 to 999 mm (adjustable in continuous mode, ±1 mm deviation, recommend ≤ 920 mm)
Coating Speed

 2 to 30 mm/s (deviation ≤ 1 mm/s)
Platform
  • The platform is made of precision marble
  • Surface flatness is < +/- 2 microns
  • Area: 550 mm width x 1100 mm Length
  • One tightened fixture built-in right side for fixing the substrate
  • Magnetic clampings are installed on two sides of the stage.
  • One tray is included in the left end to collect The residual slurry
  • The platform is installed on the mobile cart with the wheel height adjustable.
Film Applicator
  • One doctor-blade Film Applicator with 4 precision rolling wheels for easy moving
  • PEFE baffle plats with slurry guide plates is put inside the frame ( see picture left for details)
  • Standard Width 500 mm
  • Coating thickness accuracy: +/- 5 microns or 10% of film thickness
Optional for slot-die coating
  • 500 mm width Slot die coating head is available as the picture left at an extra cost.
  • This coater can be upgraded up to 650 mm width x 2000 mm length slot-die coating. Please contact us for details
Heating cover (Extra Cost)

  • Optional top-side heating cover is available up to 100oC for drying
Compliance
  • CE certified
  • NRTL or CSA certificate is available upon request at an extra cost.
