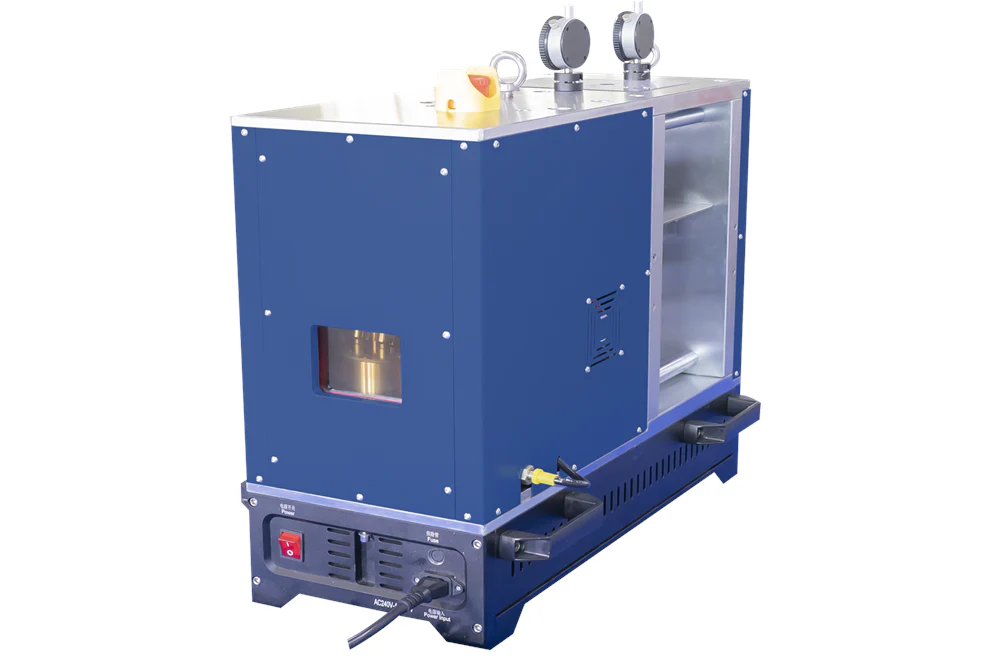

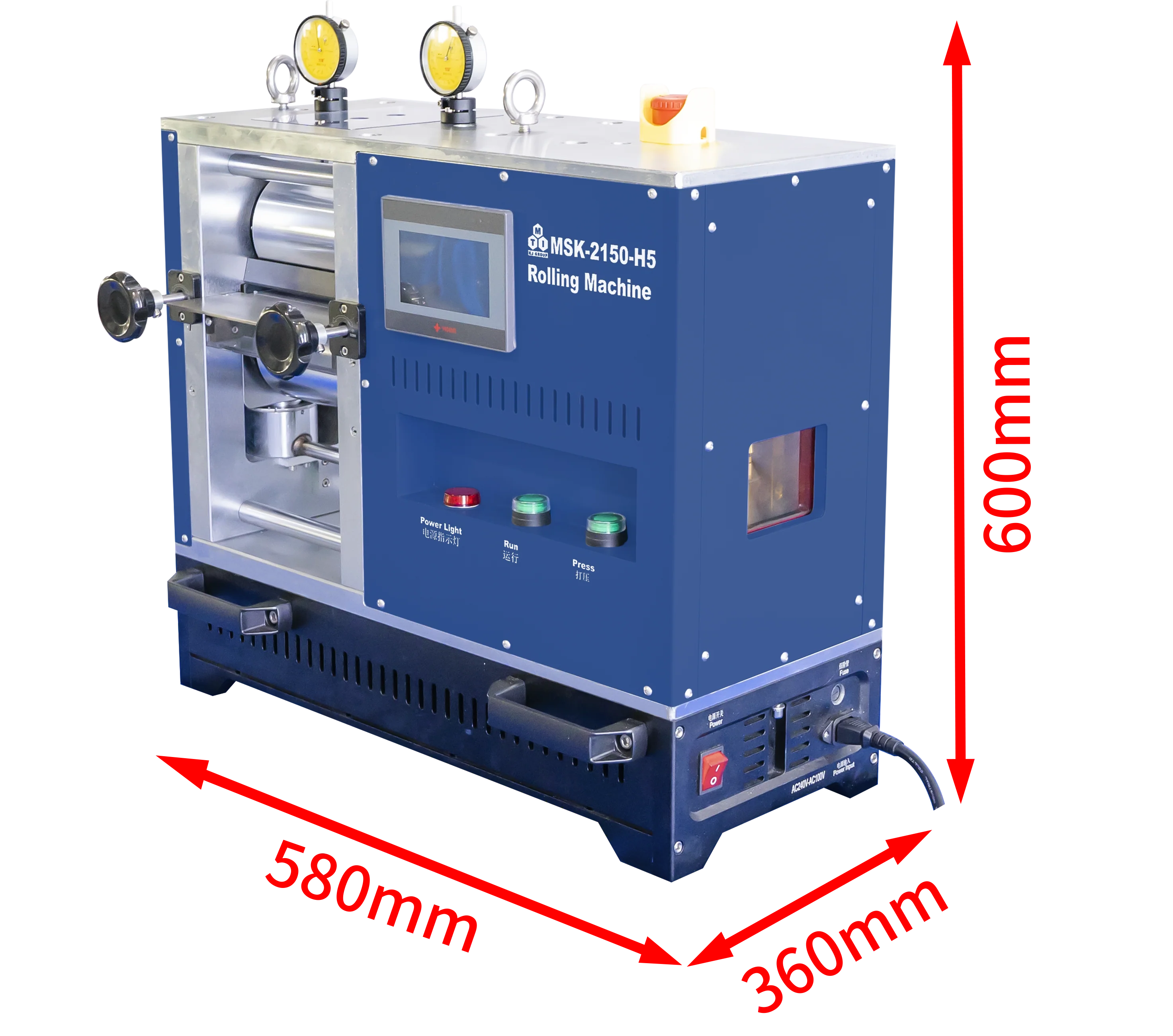

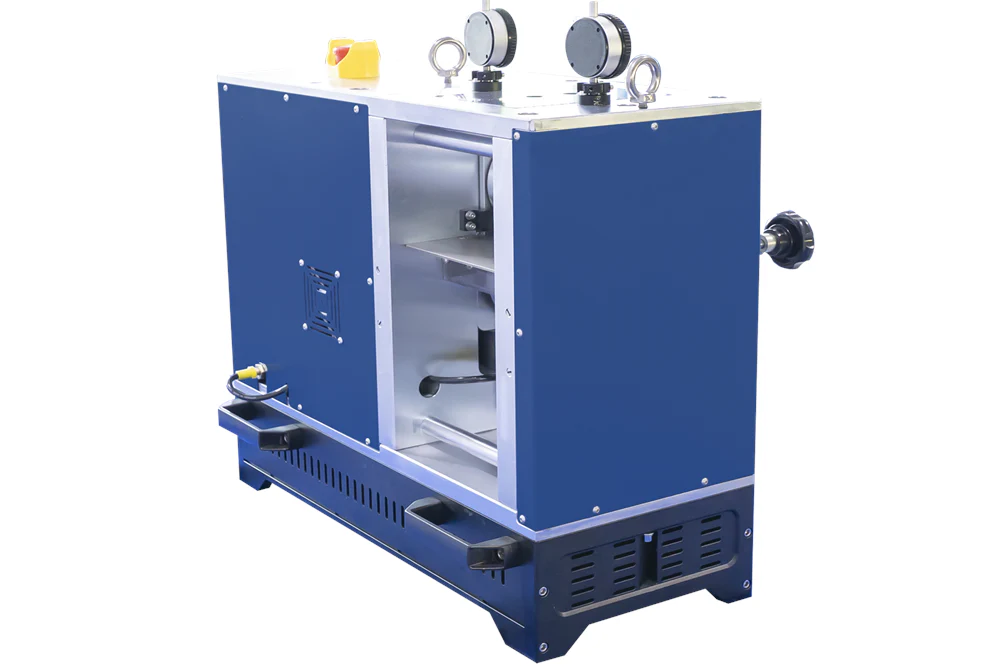

5T Max. Pressure-Control Cold Rolling Press (6" or 8" W x 4"Dia.), Glovebox Compatible & R2R Option - MSK-2150-H5

Features

• Loading force up to 5T adjustable by touchscreen control
• Rolling speed adjustable in the range of 0.1-2.5 m/min
• Roller size: 147mm or 200mm width x 100 mm Dia, made of hardened steel (RC: 58 - 60) with Cr electroplated coating
• Dual micrometer for accurate thickness adjustment in the range 0 - 2.0 mm (Roller Gap, adjustable)

• Rolling speed, pressure, and real pressure display are shown on main page.
• Rolling direction can be changed in forward or reverse.
• Rolling start or stop button for easy operation
• Alarm alert and details will be displayed

• AC110-220V, single phase, 50/60Hz, 1000W

• ± 1.5 μm

• 750W reduced AC motor with frequency speed controller

• HRC 58 - 60
• Never roll materials with hardness > 50 HRC
• Sample width max 140 mm or 180 mm
• If customer want to extend the roller width up to 200 mm, we can upgrade it to be MSK-2200-H5.
• The surface can be coated with PTFE for Li-metal rolling press.

• Range: 0 - 10mm
• Resolution: 0.01mm (or 0.001in)
• Unit interchangeable (mm / in)

• Power supply: CR2032 3V Li-ion battery
• Operating temperature: 0 ~ 40°C

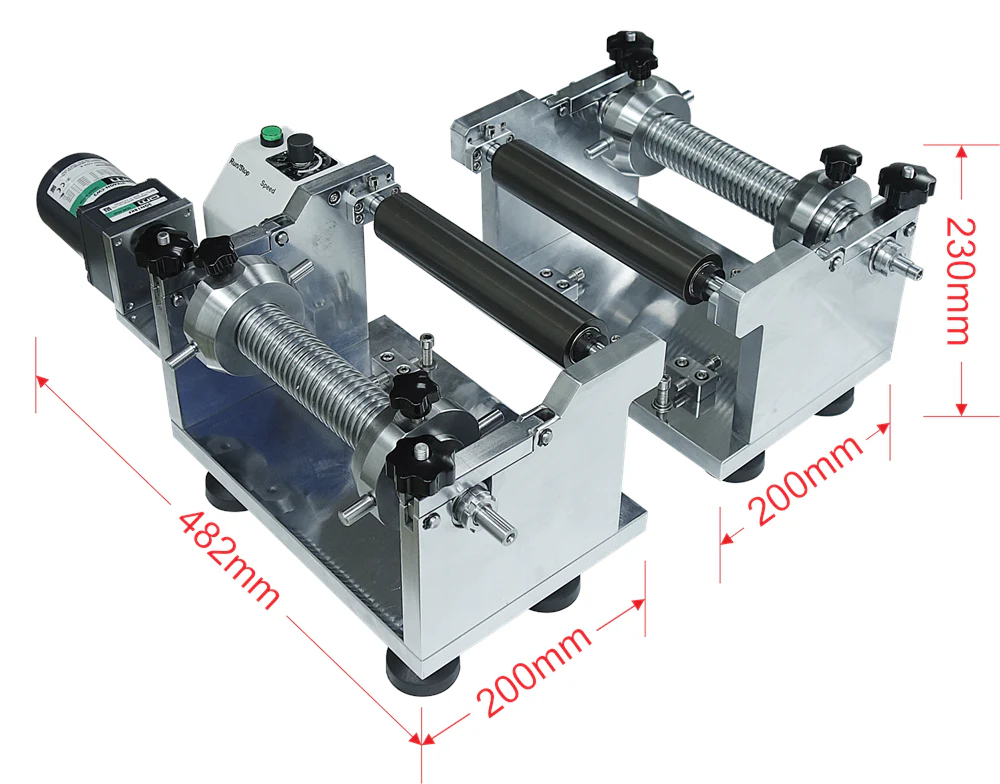

• Roll to Roll function is available by combining a roll-to-roll unit (MSK-2150-RD or MSK-2200-RD)
• 208 - 240 VAC, 50/60Hz, Single Phase
• 220V AC Power plug is not included (Please click here to order the plug)

• CE Certified
• NRTL or CSA certification is available upon request at an extra cost

• The MSK-2150-H5 or MSK-2200-H5 rollers are specially designed for electrode calendaring of battery R&D in terms of its advantages as affordable, compact, and precise. Please strictly follow the instructions to operate:
• Must use acetone to clean rollers' surface after each use
• If the machine will be idle for a long period of time, please apply anti-rust lubricant on the rollers
• The minimum thickness of the rolled sheet should depend on the physical property of the material. If you have other materials to process. Please mail us your samples and we are willing to do the test for you

• Never roll materials with hardness > 50HRC
• Multi-step thickness calendaring needed: while calendering the sample sheet, make each calendering decrement of 0.02mm comparing with sheet original thickness
• Never calendering decrement over 0.02mm comparing with original sheet thickness each calendering
• Must clean the roller surface for each rolling and use acetone to clean and lubricate when not in use to avoid corrosion
