6"W x 3.7" Dia Electric Cold Rolling Press w/ Variable Speed (Ar Glove-box Compatible) - MSK-2150-DC
HomeStore

6"W x 3.7" Dia Electric Cold Rolling Press w/ Variable Speed (Ar Glove-box Compatible) - MSK-2150-DC

6"W x 3.7" Dia Electric Cold Rolling Press w/ Variable Speed (Ar Glove-box Compatible) - MSK-2150-DC

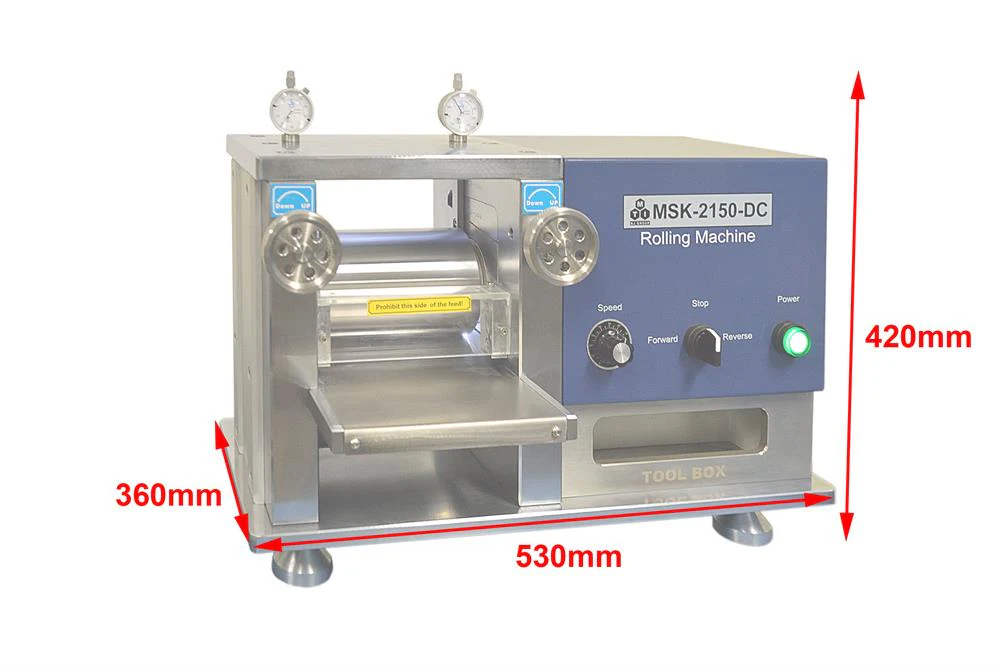

MSK-2150-DC is a 150mm width (6") precision electric Rolling Speed Adjustable press with a 94 mm diameter roller. It is an ideal rolling press for adjusting the thickness calendaring the material density of the electrodes in Li-Ion batteries research after coating and drying. This calendar machine can be used in AR glove box

SPECIFICATIONS:


Structure
  • Rolling Speed Adjustable (0 - 25 mm/ second)
  • Heavy-duty steel frame, gears, and handle
  • Roller size: 150mm width x 94mm Dia (dual rollers), made of hardened steel (RC > 60) with Cr electroplated coating
  • Dual micrometer for accurate thickness adjustment in the range 0 - 3 mm. (Pic. 1)
  • Built-in toolbox for easy operation & safety barricades (front and behind rollers) (Pic. 2)
  • The lighting on the back of the roller for sample observation. (Pic. 3)

Pic.1  Pic.2  Pic.3
Rolling Gap
  • 0 mm ~ 1.0mm
Rolling Speed
  • Max. 50 mm/ second (Rolling Speed Adjustable)
    Forward, Stop and backward switchable
  • Forward, Stop and backward switchable
  • Digital controlled with constant output power
Torque Capability
  • 850N
Surface Hardness of Rollers
  • HRC 60-62
  • Never roll materials with hardness > 20HRC
Note: The benchtop rolling press is not suitable for calendering thick metals. For applications with such needs, please consult with MTI engineers.
Digital Micrometer
  • Range: 0 - 10mm
  • Resolution: 0.01mm (or 0.001in)
  • Unit interchangable (mm / in)
  • Zeroing
  • Power supply: CR2032 3V Li-ion battery
  • Operating temperature: 0 ~ 40°C
Working Voltage
  • AC 110 or 220V single phase, 50/60H
  • INPUT: 24VDC
  • UL/CSA listed 100-240VAC IN - 24VDC OUT power adapter is included
Roll to Roll System
 (Optional)
MSK-2150-RD R2R system can be integrated with the calendaring machine at extra cost to enable the automatic film unwinding -> winding after calendaring. Please click underline to view product details.


Compliance
  • CE Certified
  • NRTL or CSA certification is available upon request at an extra cost
Application Notes
  • The MSK-2150 rollers are specially designed for battery R&D in terms of its advantages as affordable, compact, and precise. Please strictly follow the instructions to operate
    • Must use acetone to clean rollers' surface after each use
    • If the machine will be idle for a long period of time, please apply anti-rust lubricant on the rollers
    • The minimum thickness of the rolled sheet should depend on the physical property of the material. If you have other materials to process. Please mail us your samples and we are willing to do the test for you
    • Warning: Never roll materials with hardness > 50HRC
  • This roller is suitable for using under Ar/N2 gas glovebox
  • If rolling Lithium metal foil, high purity mineral oil shall be used as a lubricant to avoid Li sticks on the roller. Click the link below to learn how to clean mineral oil from sample
  • Please refer to this instruction on how to calculate rolling pressure from roller gap (reference only)
Article
Warnings
  • Never roll materials with hardness > 50HRC
  • Multi-step thickness calendaring needed: While calendaring the sample sheet, make each calendering decrement of 0.02mm comparing with sheet original thickness.
  • Never calendering decrement over 0.02mm comparing with original sheet thickness each calendering.
  • Must clean roller surface for each rolling and Use acetone to clean and lubricate when not in use to avoid corrosion



$6,296.00
