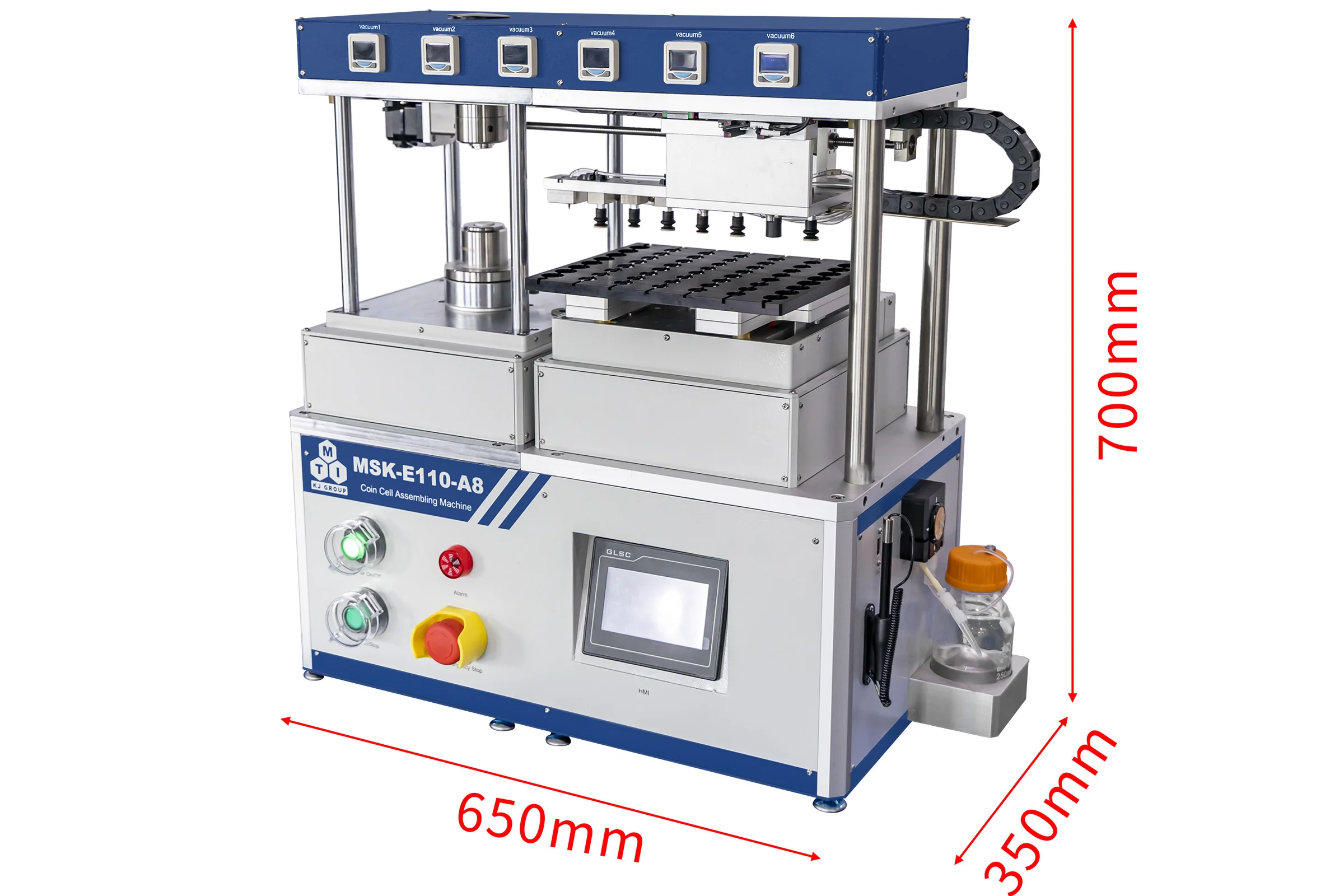

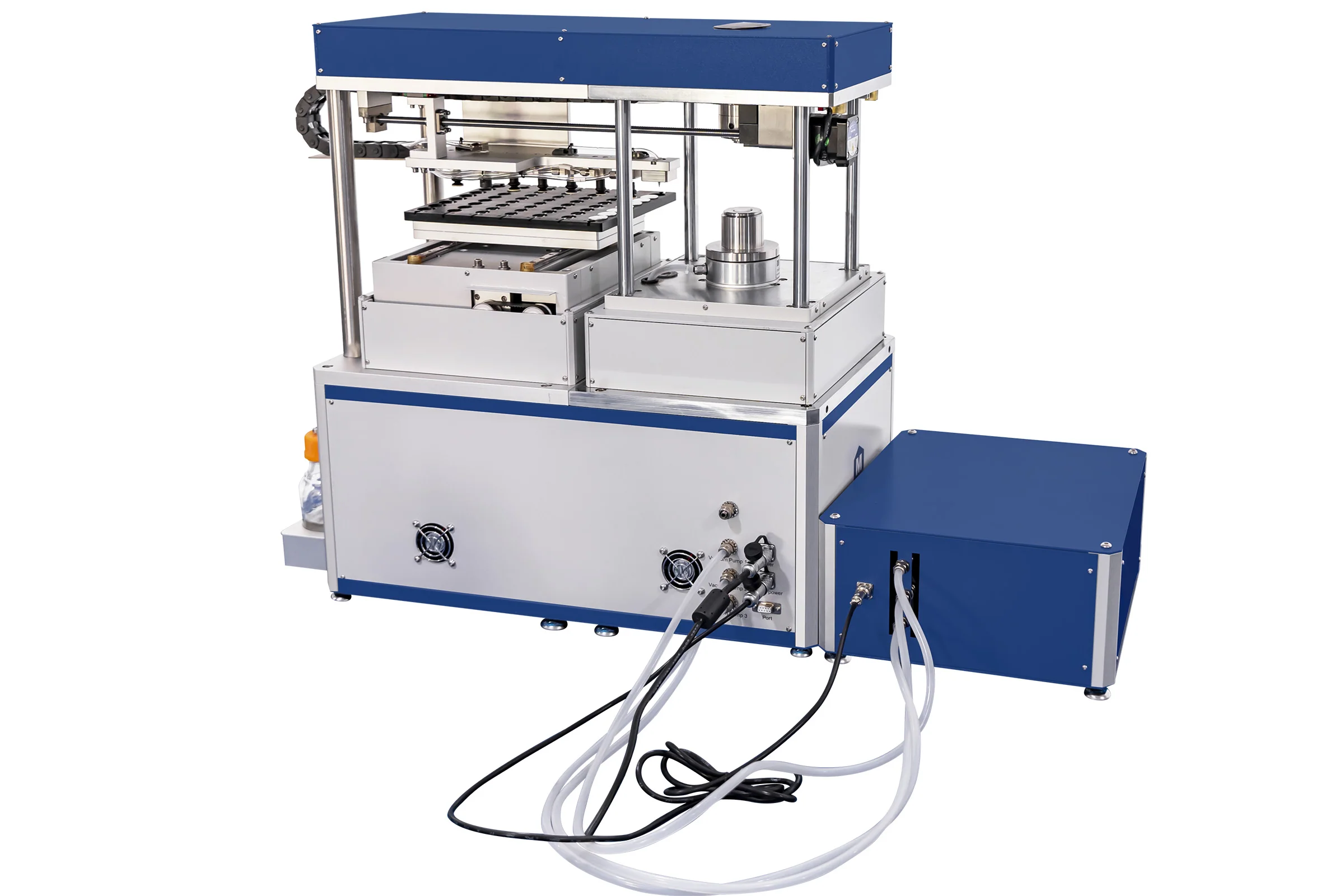

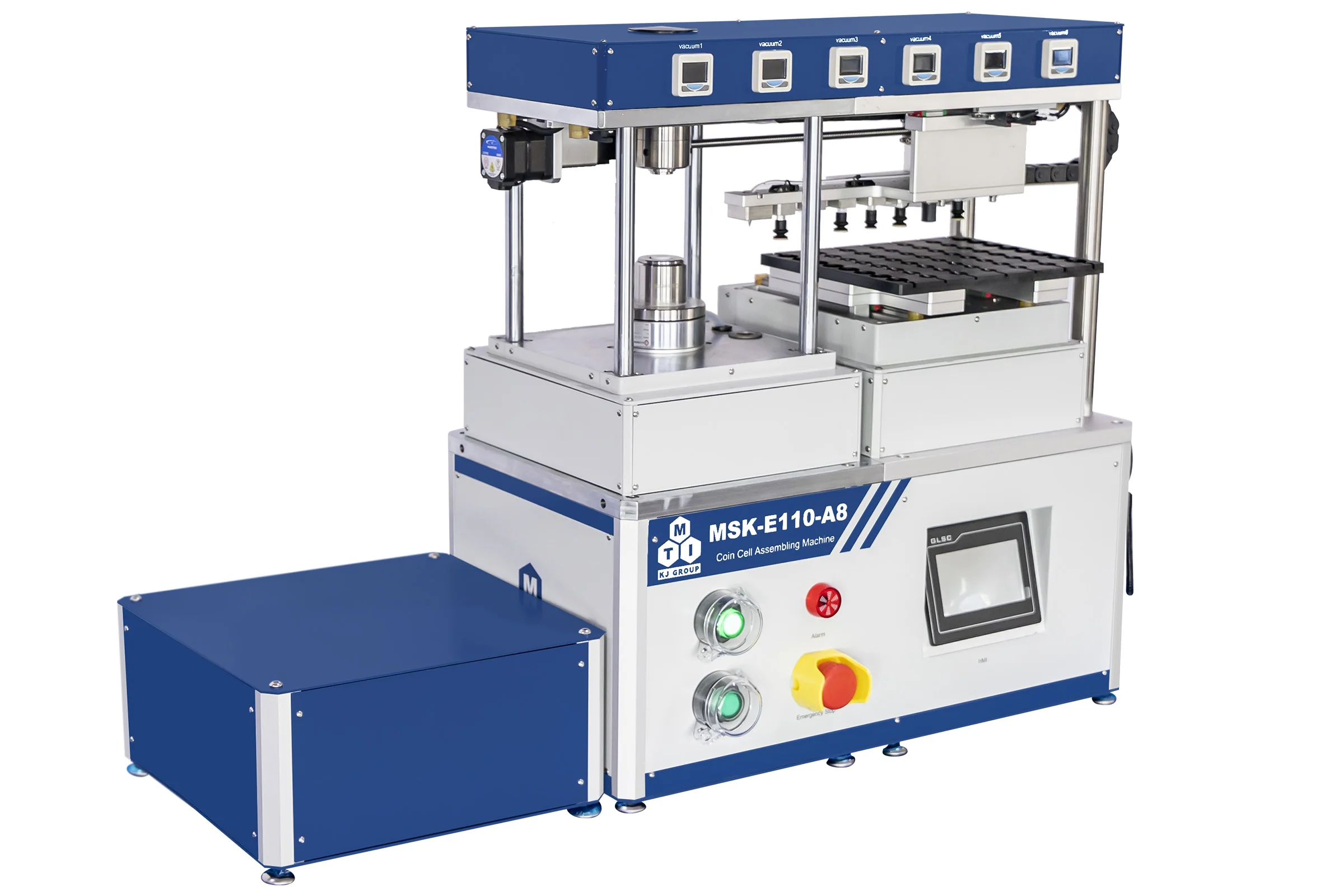

8-Channel Automatic Coin Cell Assembling Machine (Glovebox-Compatible) - MSK-E110-A8

MSK-E110-A8 is a compact benchtop, 8-channels automatic assembling machine designed for CR20XX and other 20mm-diameter coin cells. It performs fully automated sequential operations from assembling, electrolyte injection, and cell sealing. The system utilizes servo-motor and a precision load sensor to ensure stable and reliable pressure. Its compact design allows operation inside a glovebox or dry room.

SPECIFICATION

Feature	Easy touchscreen control Fully automated assembly sequence, including component assembling, electrolyte injection, and cell sealing Compact design suitable for operation inside a glovebox Adjustable electrolyte injection volume A vacuum module to provide p 8 coin cells can be automated assemble per single load
Power	AC110V±10% or AC220V±10%, Single Phase, 50/60 Hz, selected under the optional bar Output Power: 350W
Assembling Sequence	Two assembly sequences are available for CR2032 coin cell assembling. The negative assembling sequence is default mode, the positive assembling sequence can be configured upon request. Please contact MTI before purchase Negative Assembling Sequence (default): anode case, spacer, anode disc, separator, cathode disc, spacer, spring, and cathode case Positive Assembling Sequence: cathode case, cathode disc, separator, anode disc, spacer, spring, and anode case Different assembling sequences can be customized upon request. Please contact MTI for details
Assembling Efficiency	Approximately 90 seconds per cell  ( after loading components
Loading Method	Manual loading the materials into the stations.  Subsequently, assemble the coin cell as the assembly sequence
Positioning Accuracy	Stacking Concentricity: ±0.1 mm
Assembling Accuracy	Tray Processing: ±0.05mm
Sealing Pressure	Adjustable sealing pressure Max. sealing pressure: 1000KG Pressure Sensor Accuracy: ±0.5% F.S For the CR20 series coin cell, 500-700KG sealing pressure is recommended
Injection Mechanism	Equipped with a peristaltic pump with adjustable electrolyte injection volume Minimum Single Injection Volume: 0.01 g (accuracy ± 7%) Maximum Injection Volume: 10g (accuracy ± 1%)
Sealing Die	A CR2032 sealing die is included in the standard package Other sealing dies are available upon request

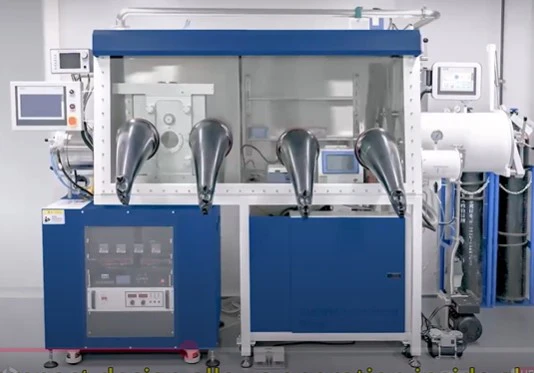

Glovebox Compatibility
Maintenance & Equipment Care	Electrolytes are highly corrosive; therefore, the die set must be cleaned with ethanol after each use to avoid any corrosion damage Please be aware that MTI is not responsible for any damages resulting from improper use and abuse of the product
