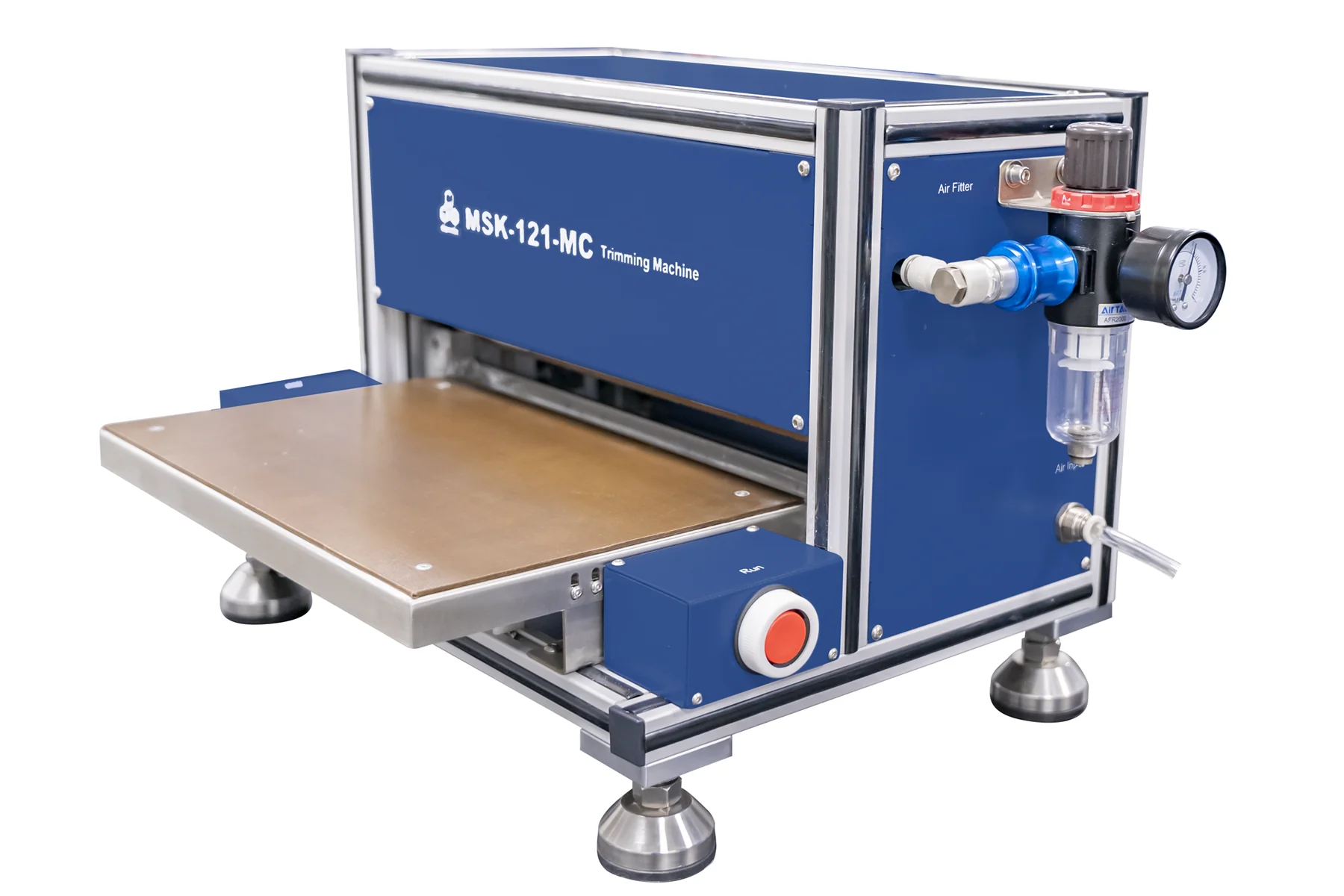

Pneumatic Slitting Machine for Pouch Cell Case Cutting (Max. L300 mm) - MSK-121-MC
HomeStore

Pneumatic Slitting Machine for Pouch Cell Case Cutting (Max. L300 mm) - MSK-121-MC

Pneumatic Slitting Machine for Pouch Cell Case Cutting (Max. L300 mm) - MSK-121-MC

MSK-121-MC is a pneumatic slitter for pouch cell case cutting. The pouch cell case was loaded with a fixture for cutting with defined size.


SPECIFICATIONS:

Cutting Blade
  • Total length is 300 mm and effective cutting length is 280 mm.

Fixture

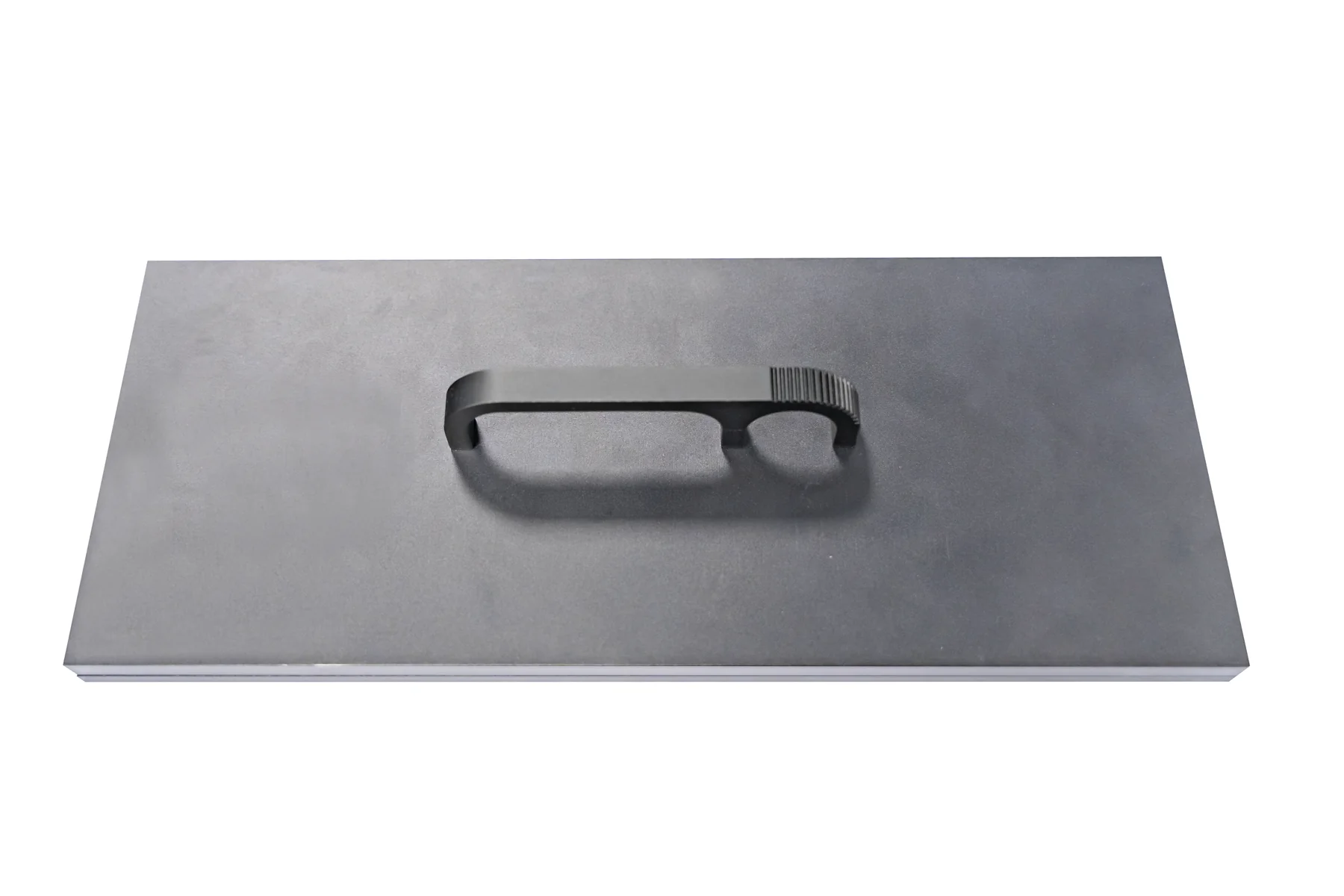

  • The standard 4662 pouch cell fixture is included. The customized fixture can be supplied upon request.
Cutting Thickness
  • Max. 15 mm
Cutting Pressure
  • Max. 150 kgf
Efficiency
  • 300-500 times/hour
Platform Dimension
  • W310mm * D200mm

$1,958.25

Original: $5,595.00

-65%
Pneumatic Slitting Machine for Pouch Cell Case Cutting (Max. L300 mm) - MSK-121-MC—

$5,595.00

$1,958.25

More Images

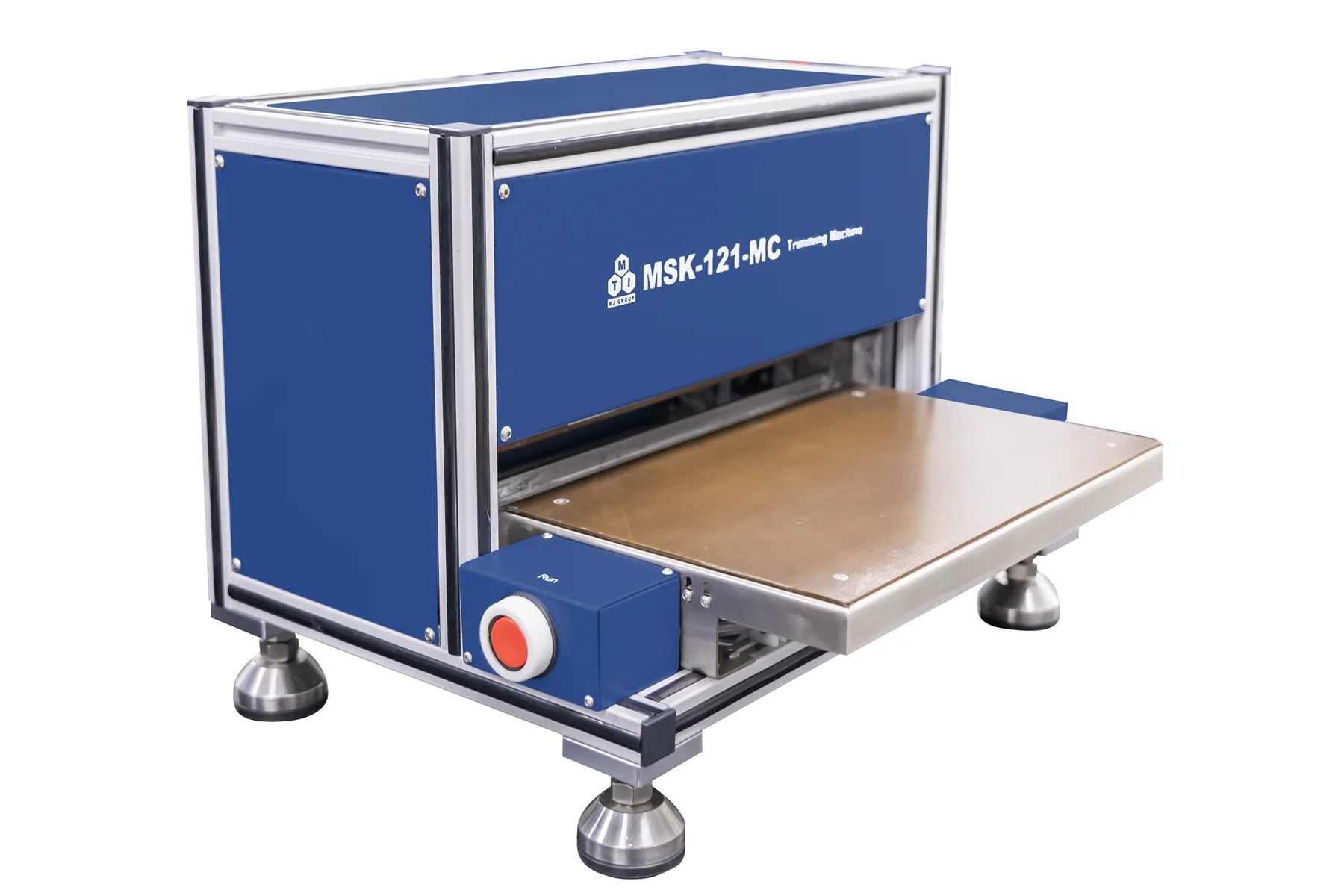

Pneumatic Slitting Machine for Pouch Cell Case Cutting (Max. L300 mm) - MSK-121-MC - Image 2

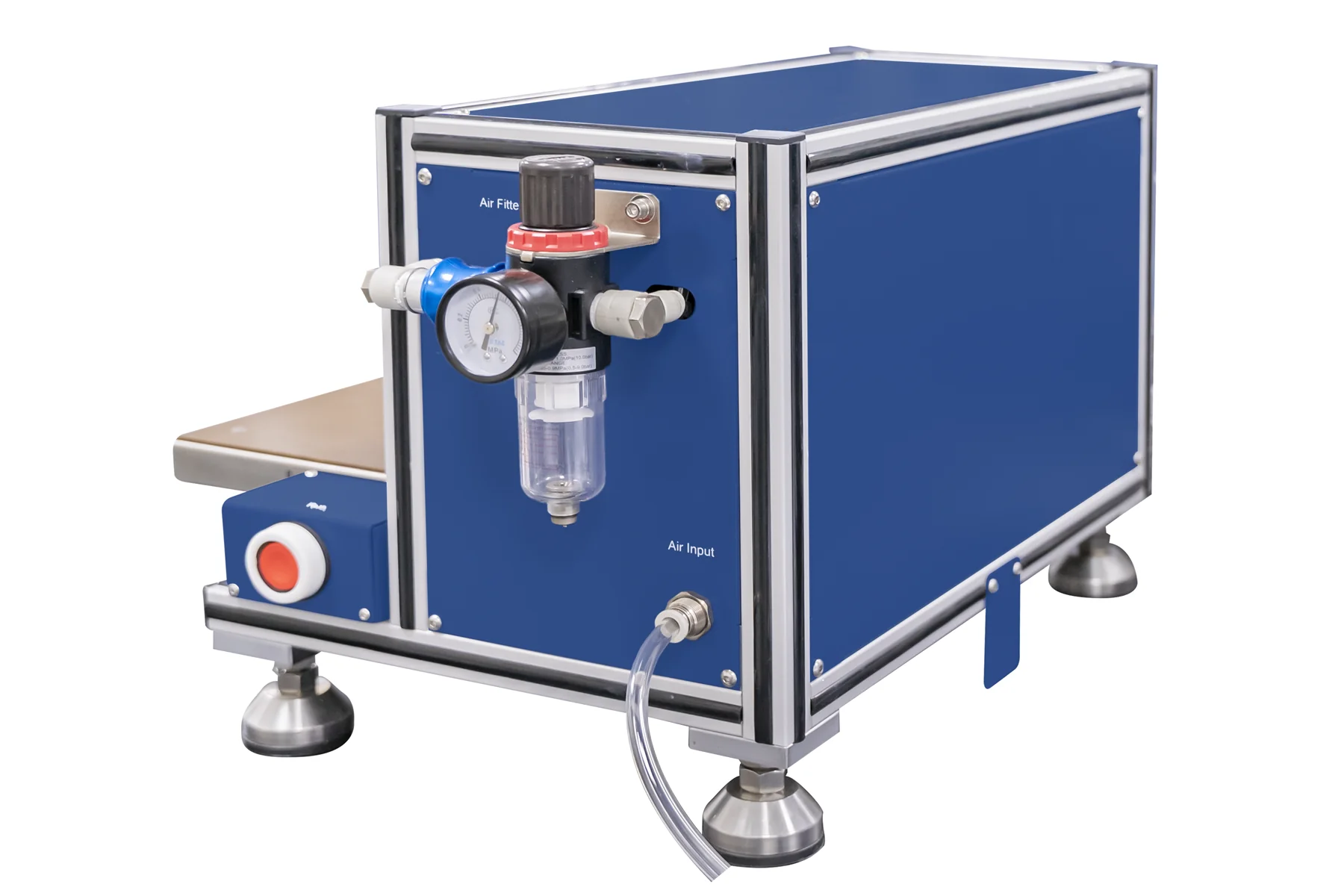

Pneumatic Slitting Machine for Pouch Cell Case Cutting (Max. L300 mm) - MSK-121-MC - Image 3

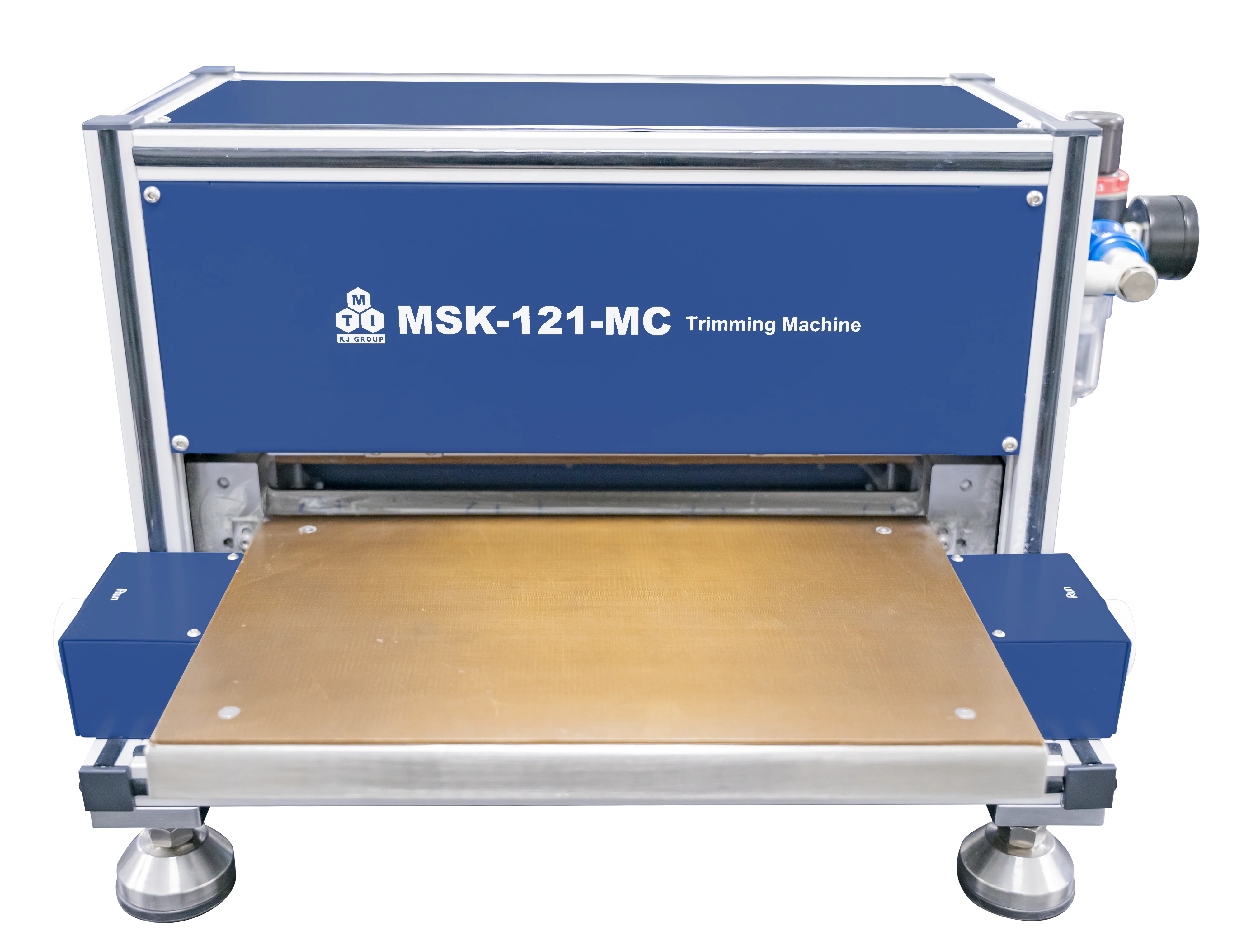

Pneumatic Slitting Machine for Pouch Cell Case Cutting (Max. L300 mm) - MSK-121-MC - Image 4

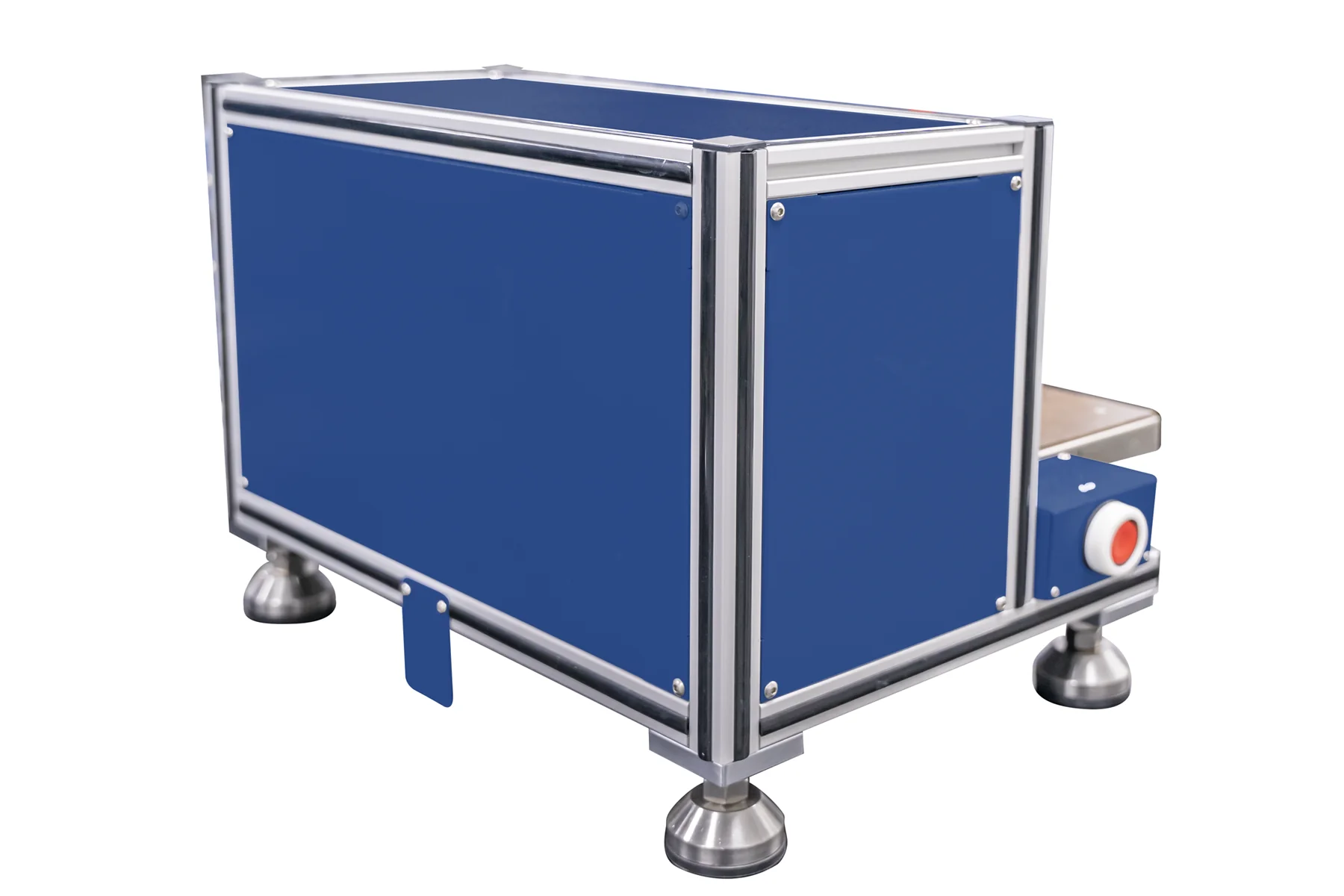

Pneumatic Slitting Machine for Pouch Cell Case Cutting (Max. L300 mm) - MSK-121-MC - Image 5
Pneumatic Slitting Machine for Pouch Cell Case Cutting (Max. L300 mm) - MSK-121-MC - Image 6
Pneumatic Slitting Machine for Pouch Cell Case Cutting (Max. L300 mm) - MSK-121-MC - Image 7

Pneumatic Slitting Machine for Pouch Cell Case Cutting (Max. L300 mm) - MSK-121-MC

MSK-121-MC is a pneumatic slitter for pouch cell case cutting. The pouch cell case was loaded with a fixture for cutting with defined size.


SPECIFICATIONS:

Cutting Blade
  • Total length is 300 mm and effective cutting length is 280 mm.

Fixture
  • The standard 4662 pouch cell fixture is included. The customized fixture can be supplied upon request.
Cutting Thickness
  • Max. 15 mm
Cutting Pressure
  • Max. 150 kgf
Efficiency
  • 300-500 times/hour

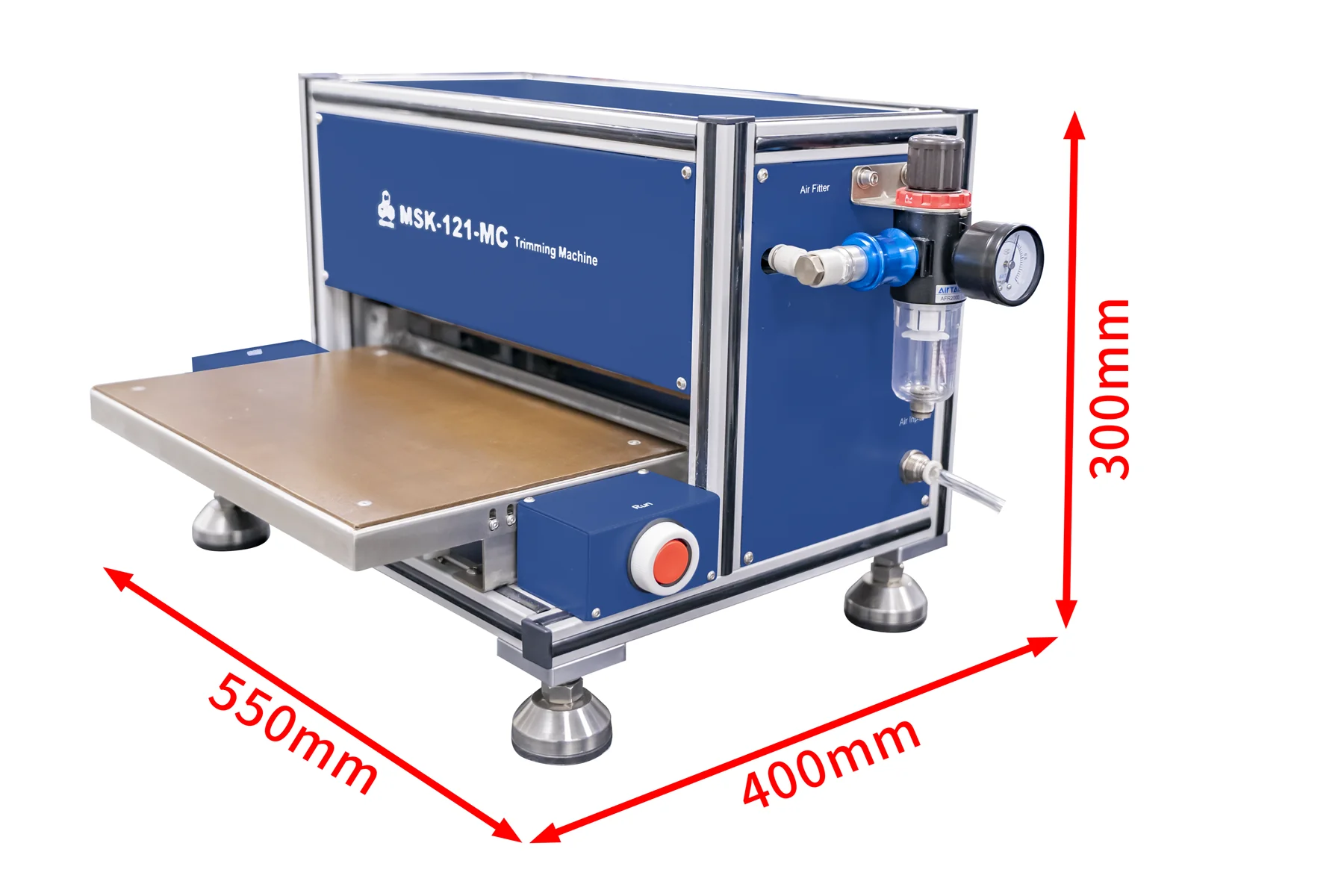

Platform Dimension
  • W310mm * D200mm
