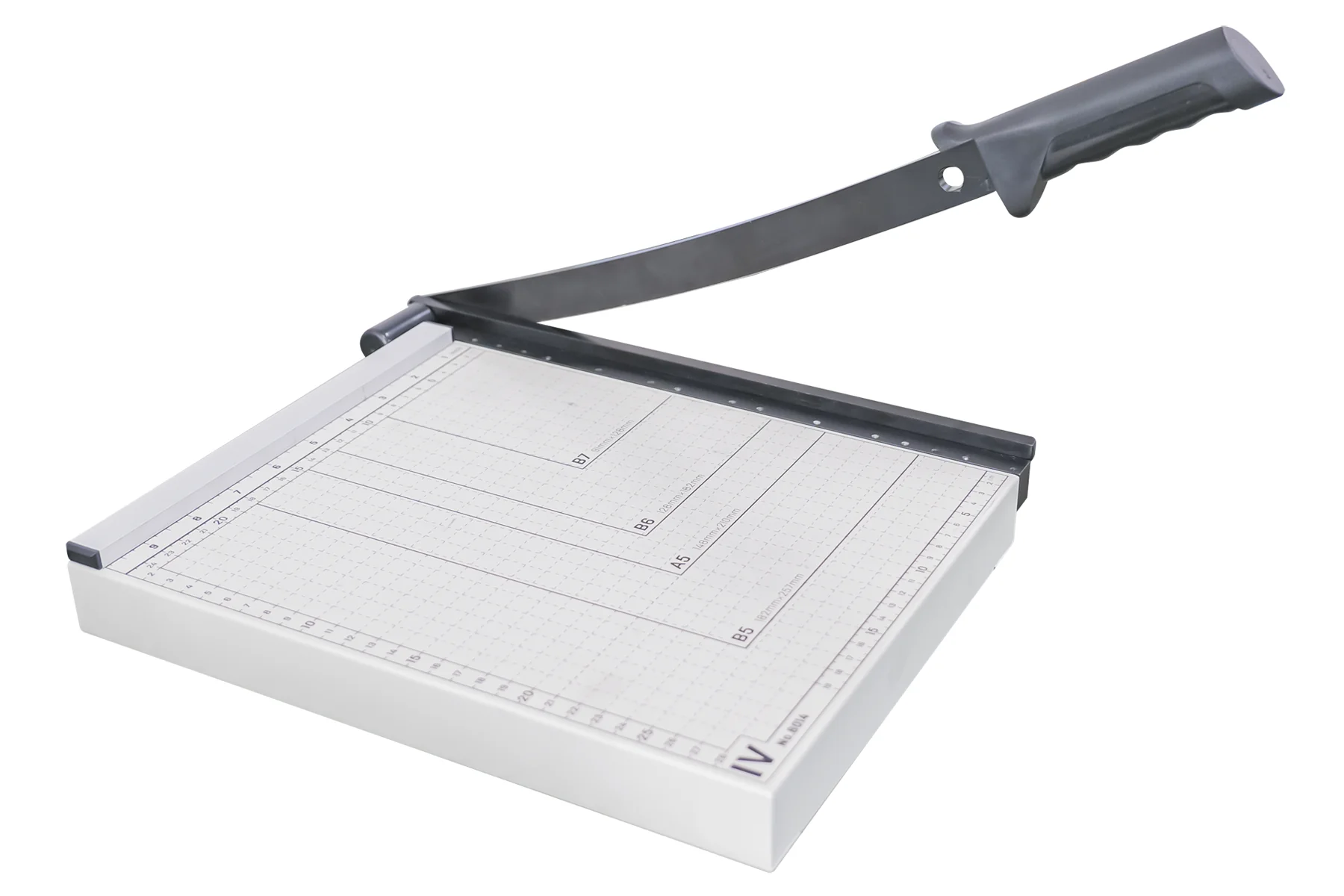

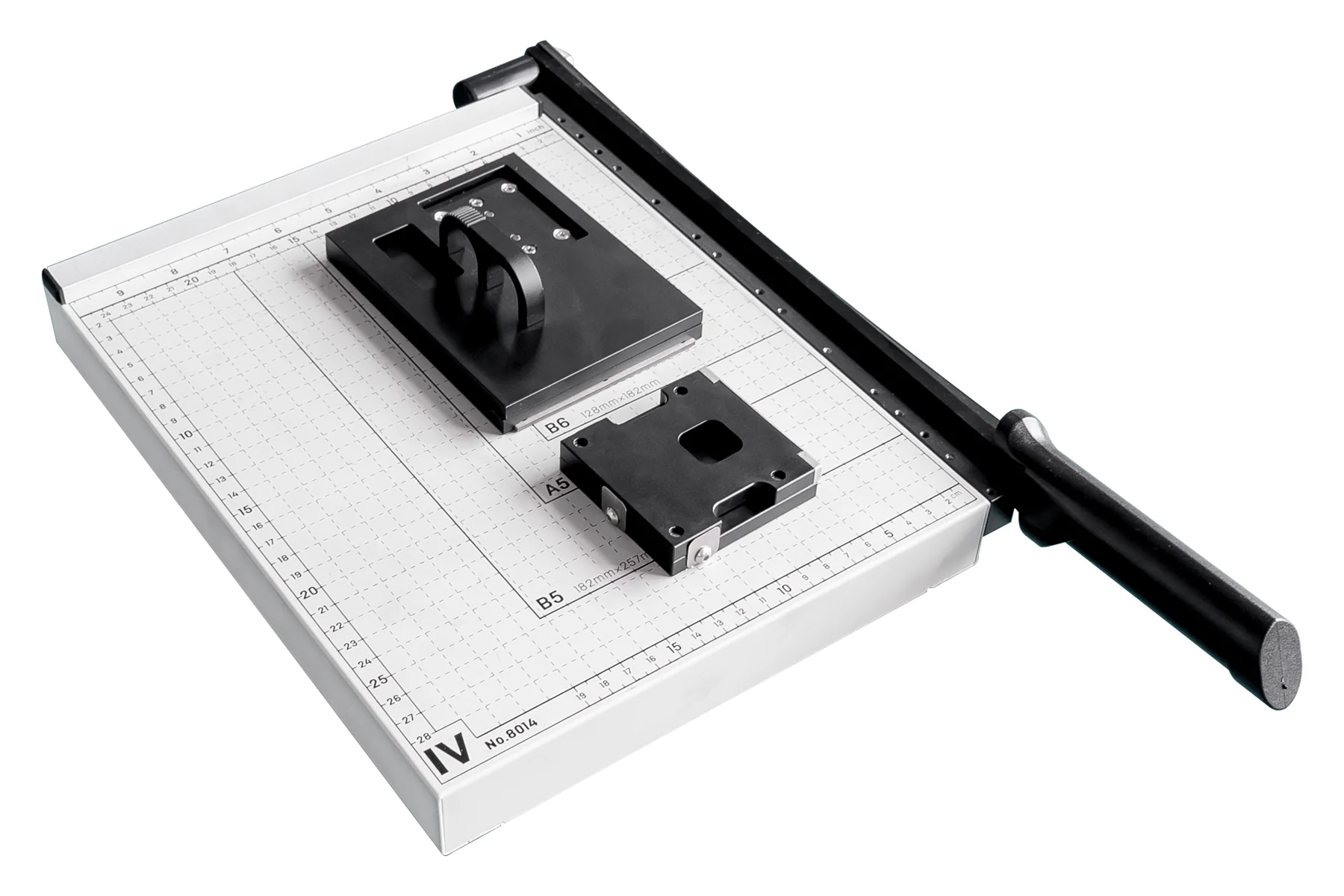

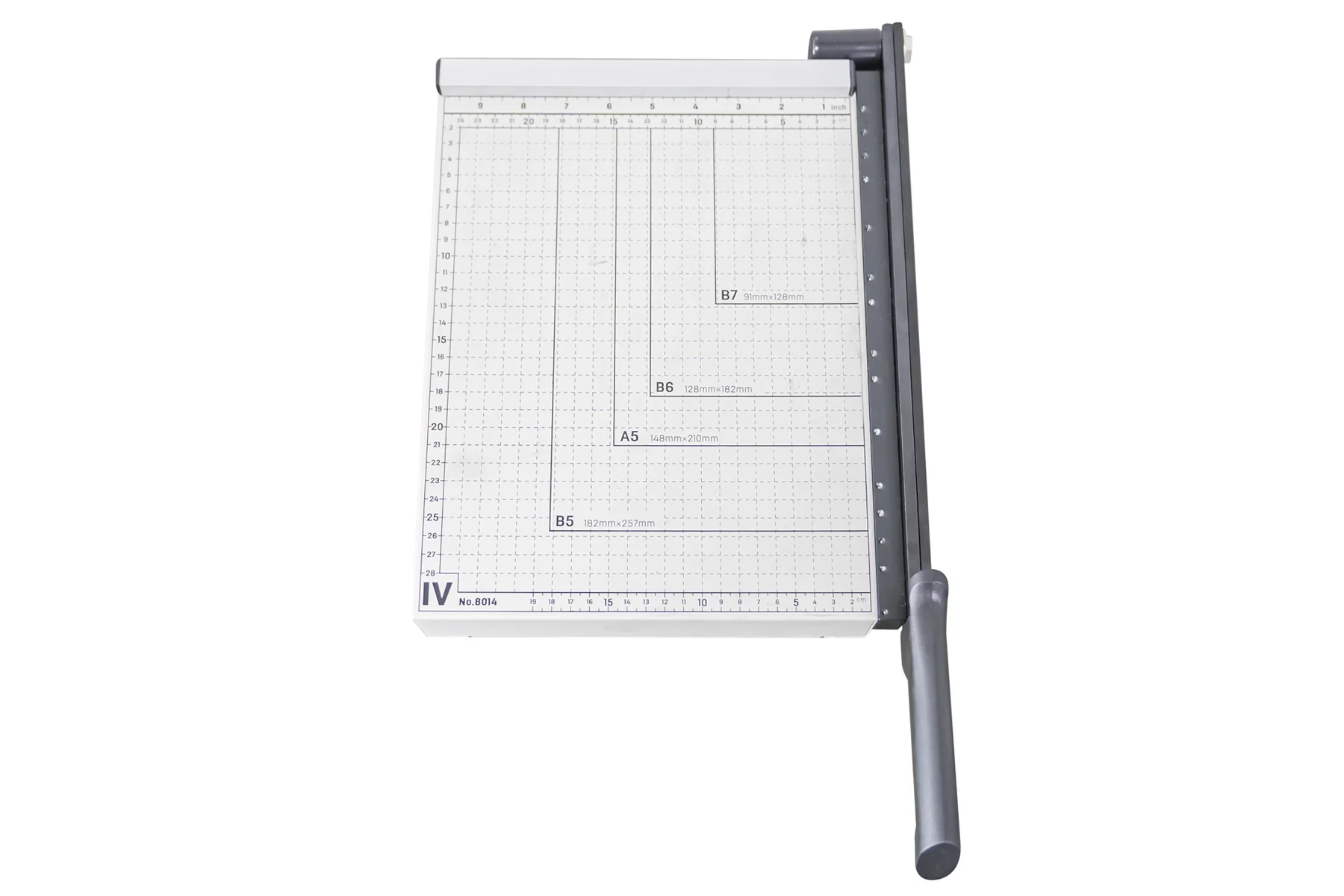

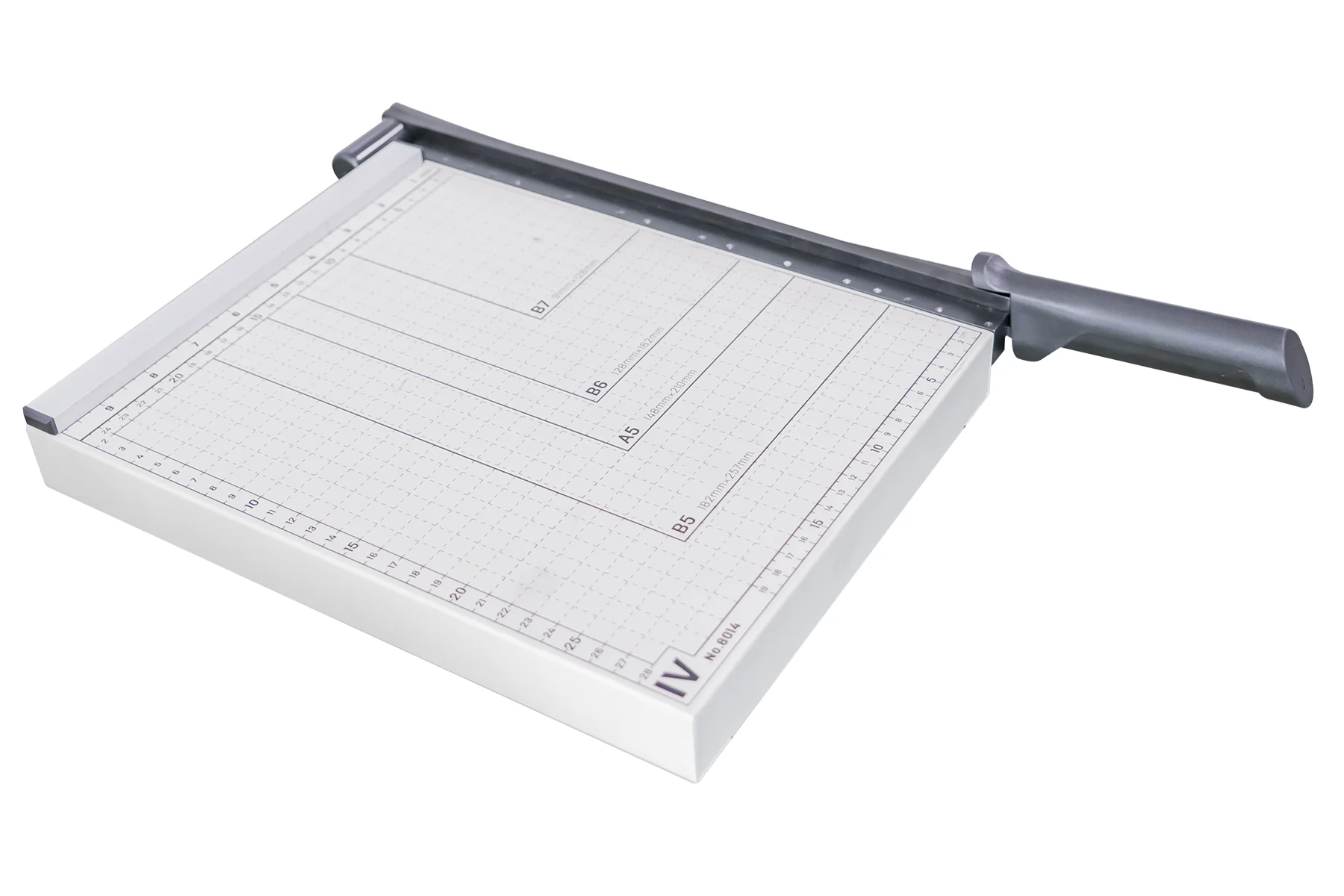

Manual Slitting Machine for Electrode or Pouch Case, and Tab Cutting - MSK-121-EMC
MSK-121-EMC is a multifunctional manual slitter for electrode cutting,Ā pouch cell case cutting, edge cutting of pouch cell, and tab cutting. The maximum cutting dimension is L280*280mm. The fixtures for tab cutting and pouch cell case cutting for 4662 pouch cell are included. The fixture for edge cutting of 4662 pouch cell is optional upon request.
(1) Tab Cutting for Pouch CellĀ
|
Dimension |
Tabs on the Same Side |
Tabs on the Different Side |
|
Cell Length (L1) |
\ |
\ |
|
Tab Length after Cutting (L2) |
Min.6mm |
Min.6mm |
|
Cell Width (W1) |
Max.300mm |
Max.300mm |
|
Inner Tab Distance (W2) |
\ |
\ |
|
Outer Tab Distance (W3) |
Max.280mm |
\ |
|
Tab Width (W4) |
\ |
Max.280mm |
|
Cutting Thickness (H) |
Max.0.5mm |
Max.0.5mm |
Ā
(2) Pouch Cell Case Cutting
|
Dimension |
Single Punch Hole |
Double Punch Hole |
|
Pouch Case Length (L1) |
Max.280mm |
Max.280mm |
|
Pouch Case Width (W1) |
Max.280mm |
Max.280mm |
SPECIFICATIONS:
| Cutting Blade |
|
| Cutting Thickness |
|
| Fixture |
|
| Platform Dimension |
|
| Equipment Dimension |
|
| Weight |
|
Original: $1,386.00
-65%$1,386.00
$485.10More Images
