LSGM Single Crystal Substrate, 10x10x0.5 mm,< 110> ori. 2SP
-
Orientation: (100) +/-3 o
-
Size: 10x10 mm x 0.5 mm
-
Polish: two sides optical grade polished
-
Surface finish (RMS or Ra) : < 10A
- Packed: each in membrane box

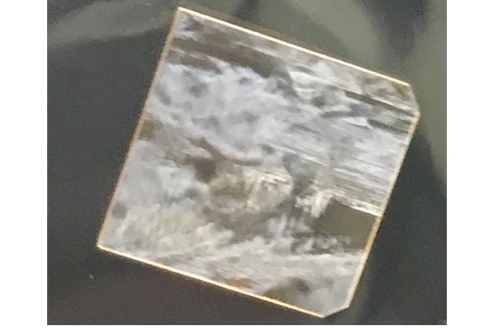

- Note: there is a twin structure Visible on the polished surface
| Chemistry | La0.95Sr0.05Ga0.95Mg0.05O3-δ (LSGM) |

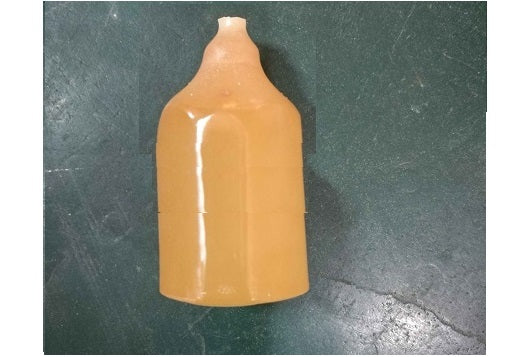

| Crystal growth method | CZ |
| Crystal Structure | a = 5.493 Å, b = 5.533 Å c=7.782 Å |
| Melting point | ~ 1500oC |
| Note |
LSGM is a new crystal for MTI. We still is in R&D to improve the quality We found many domains or twin defect inside single-crystal similar to LaAlO3 which results in a crystal rocking curve as below.   Usually the defect dose not effect film growth. The buffer layer may be needed to get better epi film We don't accept the return because of the defect Thank you for helping us to R&D new single crystal |
| References |
|
   Powder XRD Resistivity vs Temp Resistivity vs p O2 |
|
