Leaking Tester for Pouch Cells (Max. 150×100×12 mm) - MSK-TE601-VOCs
HomeStore

Leaking Tester for Pouch Cells (Max. 150×100×12 mm) - MSK-TE601-VOCs

Leaking Tester for Pouch Cells (Max. 150×100×12 mm) - MSK-TE601-VOCs

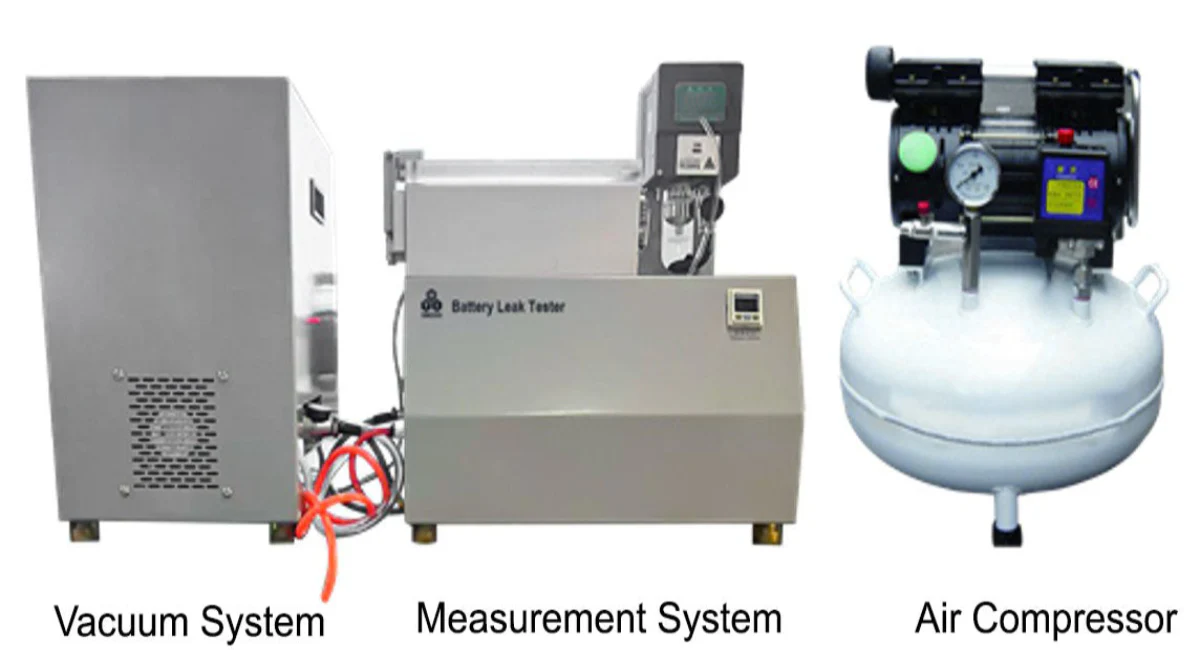

MSK-TE601-VOCs is a manual leaking tester for checking the sealing quality of pouch cells. It is composed of vacuum system, measurement unit, and air compressor.

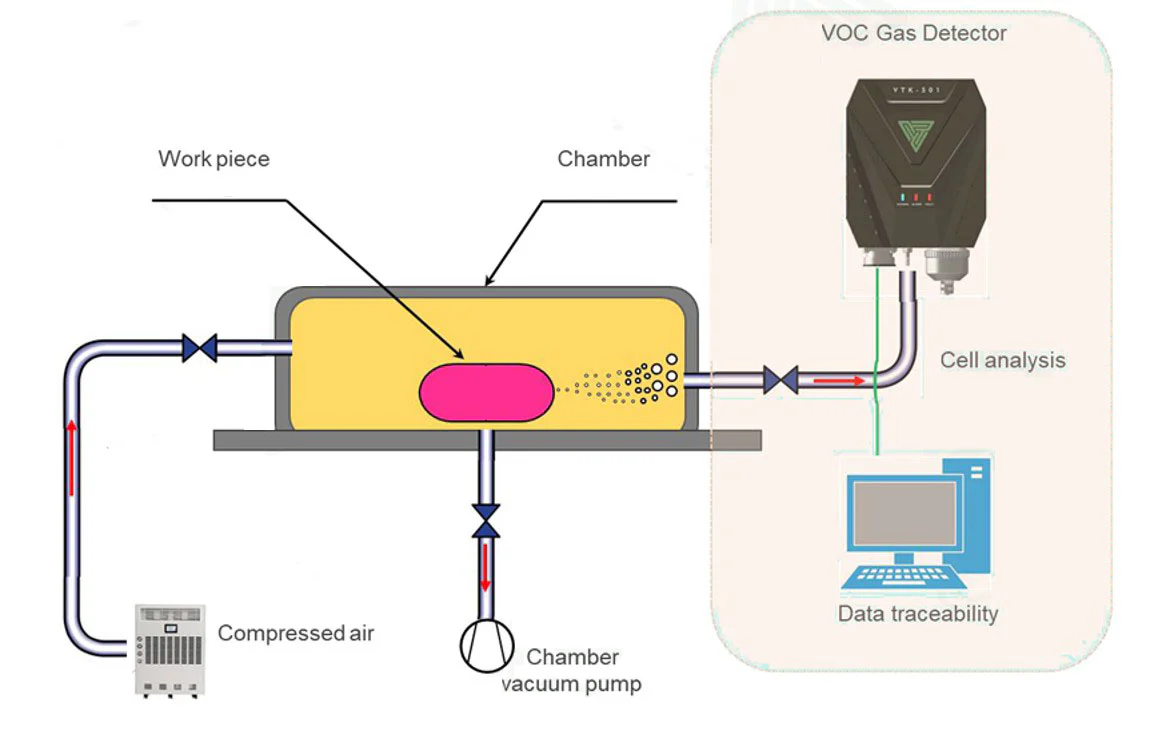

Working Mechanism
The pouch cell will be manually placed inside the testing chamber and close the chamber for vacuum-positive pressure loop, which will blow the VOCs from the leaking electrolyte into ionization zone for ionization and measurement, which determines if the electrolyte leaking happens on the sealed pouch cell.


SPECIFICATIONS
Power Supply
  • AC220V±10%, Single Phase, 50/60Hz, 3 kW
  • AC110V is available upon request
Detecting Gas Vapors
  • VOCs, such as carbonates, ethers, and benzenes
Testing Chamber Size
  • L150mm * W100mm * H60mm (the largest pouch cell for measurement is 150mm*100mm*12mm)
  • It can be upgraded with larger chamber upon request
Device Size
  • Vacuum System: L370mm * W250mm * H385mm
  • Measurement Unit: L400mm * W310mm * H440mm
  • Air Compressor: L400mm * W400mm * H500mm
Certification
  • CE Certified
  • NRTL or CSA certification is available upon request at the extra cost.



$27,993.00

Original: $79,980.00

-65%
Leaking Tester for Pouch Cells (Max. 150×100×12 mm) - MSK-TE601-VOCs—

$79,980.00

$27,993.00

More Images

Leaking Tester for Pouch Cells (Max. 150×100×12 mm) - MSK-TE601-VOCs - Image 2

Leaking Tester for Pouch Cells (Max. 150×100×12 mm) - MSK-TE601-VOCs

MSK-TE601-VOCs is a manual leaking tester for checking the sealing quality of pouch cells. It is composed of vacuum system, measurement unit, and air compressor.

Working Mechanism
The pouch cell will be manually placed inside the testing chamber and close the chamber for vacuum-positive pressure loop, which will blow the VOCs from the leaking electrolyte into ionization zone for ionization and measurement, which determines if the electrolyte leaking happens on the sealed pouch cell.


SPECIFICATIONS
Power Supply
  • AC220V±10%, Single Phase, 50/60Hz, 3 kW
  • AC110V is available upon request
Detecting Gas Vapors
  • VOCs, such as carbonates, ethers, and benzenes
Testing Chamber Size
  • L150mm * W100mm * H60mm (the largest pouch cell for measurement is 150mm*100mm*12mm)
  • It can be upgraded with larger chamber upon request
Device Size
  • Vacuum System: L370mm * W250mm * H385mm
  • Measurement Unit: L400mm * W310mm * H440mm
  • Air Compressor: L400mm * W400mm * H500mm
Certification
  • CE Certified
  • NRTL or CSA certification is available upon request at the extra cost.
