1800°C Kanthal Super-1900 MoSi2 Heating Element -270mm - for KSL1800X-S & GSL1800S Compact Furnace - KSKSL-1900-S-LD
HomeStore

1800°C Kanthal Super-1900 MoSi2 Heating Element -270mm - for KSL1800X-S & GSL1800S Compact Furnace - KSKSL-1900-S-LD

1800°C Kanthal Super-1900 MoSi2 Heating Element -270mm - for KSL1800X-S & GSL1800S Compact Furnace - KSKSL-1900-S-LD

Specifications
  • Materials: MoSi2
  • Max working temperature:1850 C (3360 oF)
  • A  (Distance between two shanks) : 30 mm (1.18")
  • D1 (Terminal Diameter) : 12 mm (0.47")
  • D2  (Heating Zone Diameter): 6 mm (0.23")
  • L1  (Terminal Length): 160 mm (6.30")
  • L2  (Heating Zone Length): 110 mm (4.33")
  • Please click here to see datasheet of Super-1900 heating element.
  • Tensile strength: 100Mpa +/- 25% at 1550oC (2820 oF)
  • Bend strength: 450 Mpa +/- 10% at 20 oC (68 oF)
  • Compression strength: 1400 -1500 Mpa +/- 10% at 20 oC (68 oF)
  • Fracture Toughness: KIC, at 20 oC (68 oF)   3-4 Mpam1/2
  • Vickers-hardness (HV): 9 Gpa at 20 oC (68 oF)
  • Density: 6.5 g/cm3
  • Porosity: <1%
  • Coefficient of liner expansion: 7-8 10 -6 K -1
  • Specific heat capacity: 0.42 kJ kg -1 K -1 at  20 oC (68 oF)
  • Emissivity: 0.70-0.80
Applications
  • Replace heating elements for MTI's KSL-1800-KA3 muffle furnace.
Installation When installing a heating element into furnaces, a separator should be placed between the two shanks of the heating element before hanging the element inside the furnace chamber.  The proper separator width should be selected to fit the shanks smoothly and avoid damage to the element.
Warning
Exercise extreme caution to not apply any stress on the elements during installation. Heating elements are very brittle and could break if the separator is too wide or if too much pressure is applied on them.
No warranty will be issued for damage caused by improper installation.
Inspect your delivery:
Please check the package for damages before accepting delivery.
Should damages be found, please keep all packaging materials, take pictures, and report immediately to the carrier/MTI.
No Warranty:
Kindly note this item is a consumable part, and not covered by a warranty. Make sure to inspect for defect(s) thoroughly before use.
$1,289.00
1800°C Kanthal Super-1900 MoSi2 Heating Element -270mm - for KSL1800X-S & GSL1800S Compact Furnace - KSKSL-1900-S-LD—
$1,289.00

More Images

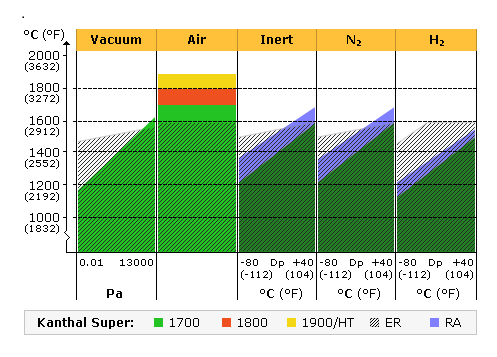

1800°C Kanthal Super-1900 MoSi2 Heating Element -270mm - for KSL1800X-S & GSL1800S Compact Furnace - KSKSL-1900-S-LD - Image 2
