Compact High-Pressure Stirring Reactor with Optional Vessel from 250 - 1000 mL up to Max. 300 °C / 10 MPa - HPRVS300XX

Compact High-Pressure Stirring Reactor with Optional Vessel from 250 - 1000 mL up to Max. 300 °C / 10 MPa - HPRVS300XX

Compact High-Pressure Stirring Reactor with Optional Vessel from 250 - 1000 mL up to Max. 300 °C / 10 MPa - HPRVS300XX

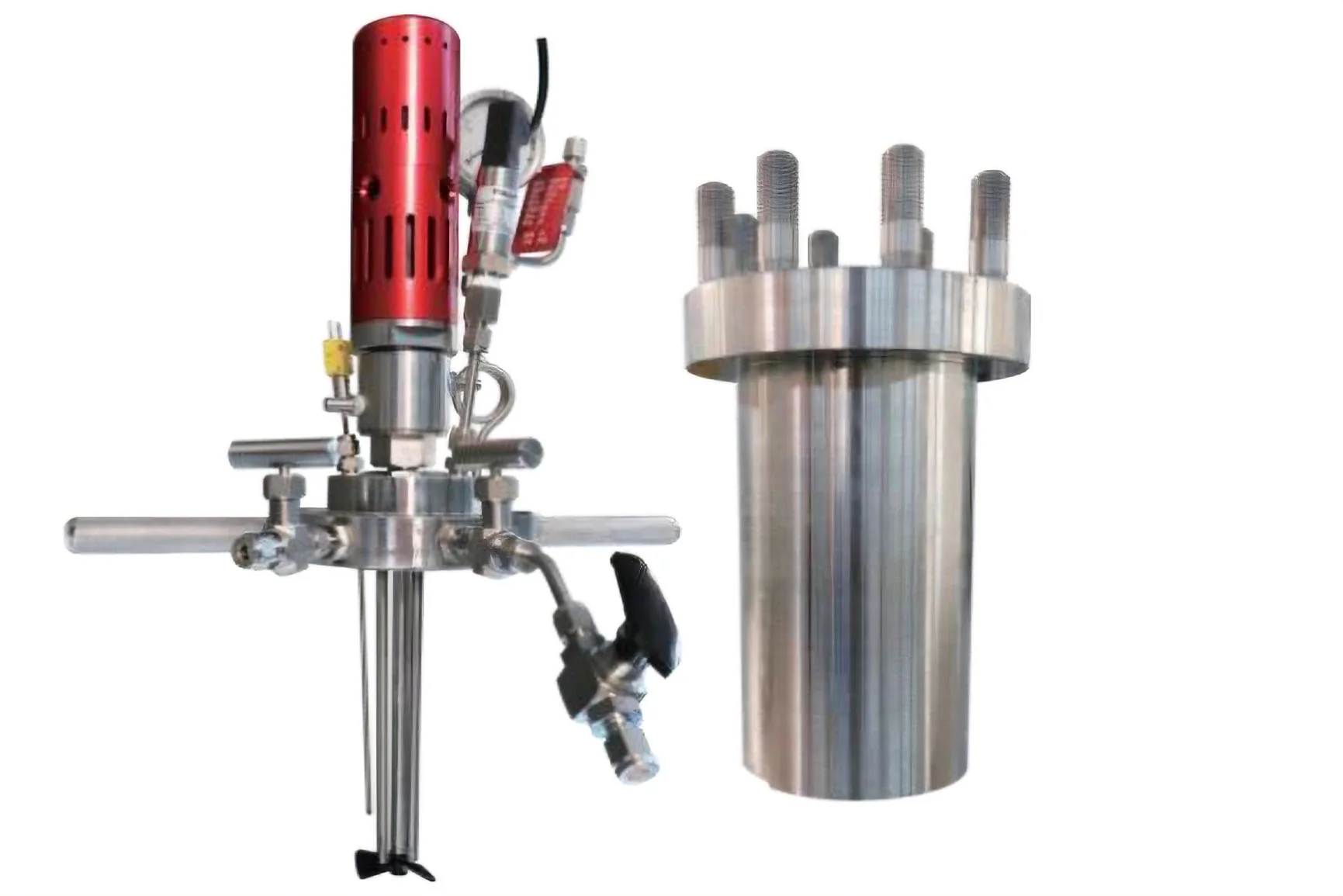

HPRVS-300-XX is a compact high-temperature and high-pressure reactor with a maximum. 300 °C / 10 MPa, mechanical stirring, and touchscreen control. The reactor container is optional from 250mL to 1000mL. It is ideal for hydrothermal and high-pressure chemical reactions.

SPECIFICATIONS

Utility	AC 220V ±10%, single phase, 50/60 Hz Power: 1500W Stirring Motor: 4OW by a magnetic coupling motor 110 VAC version is available via a 2000W separate transformer
Pressure Vessel	Material: 316L stainless steel (other materials customizable upon request) Pressure Range: –0.1 to 10 MPa (optional up to 35 MPa) Volume Options: 250 mL / 500 mL / 1000 mL
Heating Furnace	Working Temperature: Room temperature to 300 °C Temperature Control: PID programmable control Temperature Accuracy: ±1 °C
Stirring System	Mechanical stirring with magnetic coupling drive Motor Torque: 0.53 N·m Stirring Speed: 10–800 RPM Standard Stirring Blade: Three-blade type (other blade types available upon request) Note: Cooling is required for the magnetic coupling motor. Recommend water chiller (Model KJ3000) is available for purchase.
Control Interface	Touchscreen interface for setting and displaying temperature, stirring, and pressure programs; capable of generating and exporting temperature & pressure–time curves.

Select Vessel Capacity

From $17,198.00

Compact High-Pressure Stirring Reactor with Optional Vessel from 250 - 1000 mL up to Max. 300 °C / 10 MPa - HPRVS300XX—

$17,198.00

More Images

Compact High-Pressure Stirring Reactor with Optional Vessel from 250 - 1000 mL up to Max. 300 °C / 10 MPa - HPRVS300XX - Image 2

Compact High-Pressure Stirring Reactor with Optional Vessel from 250 - 1000 mL up to Max. 300 °C / 10 MPa - HPRVS300XX - Image 3

Compact High-Pressure Stirring Reactor with Optional Vessel from 250 - 1000 mL up to Max. 300 °C / 10 MPa - HPRVS300XX

HPRVS-300-XX is a compact high-temperature and high-pressure reactor with a maximum. 300 °C / 10 MPa, mechanical stirring, and touchscreen control. The reactor container is optional from 250mL to 1000mL. It is ideal for hydrothermal and high-pressure chemical reactions.

SPECIFICATIONS

Utility	AC 220V ±10%, single phase, 50/60 Hz Power: 1500W Stirring Motor: 4OW by a magnetic coupling motor 110 VAC version is available via a 2000W separate transformer
Pressure Vessel	Material: 316L stainless steel (other materials customizable upon request) Pressure Range: –0.1 to 10 MPa (optional up to 35 MPa) Volume Options: 250 mL / 500 mL / 1000 mL
Heating Furnace	Working Temperature: Room temperature to 300 °C Temperature Control: PID programmable control Temperature Accuracy: ±1 °C
Stirring System	Mechanical stirring with magnetic coupling drive Motor Torque: 0.53 N·m Stirring Speed: 10–800 RPM Standard Stirring Blade: Three-blade type (other blade types available upon request) Note: Cooling is required for the magnetic coupling motor. Recommend water chiller (Model KJ3000) is available for purchase.
Control Interface	Touchscreen interface for setting and displaying temperature, stirring, and pressure programs; capable of generating and exporting temperature & pressure–time curves.

Product Information

Shipping & Returns

Description

HPRVS-300-XX is a compact high-temperature and high-pressure reactor with a maximum. 300 °C / 10 MPa, mechanical stirring, and touchscreen control. The reactor container is optional from 250mL to 1000mL. It is ideal for hydrothermal and high-pressure chemical reactions.

SPECIFICATIONS

Utility	AC 220V ±10%, single phase, 50/60 Hz Power: 1500W Stirring Motor: 4OW by a magnetic coupling motor 110 VAC version is available via a 2000W separate transformer
Pressure Vessel	Material: 316L stainless steel (other materials customizable upon request) Pressure Range: –0.1 to 10 MPa (optional up to 35 MPa) Volume Options: 250 mL / 500 mL / 1000 mL
Heating Furnace	Working Temperature: Room temperature to 300 °C Temperature Control: PID programmable control Temperature Accuracy: ±1 °C
Stirring System	Mechanical stirring with magnetic coupling drive Motor Torque: 0.53 N·m Stirring Speed: 10–800 RPM Standard Stirring Blade: Three-blade type (other blade types available upon request) Note: Cooling is required for the magnetic coupling motor. Recommend water chiller (Model KJ3000) is available for purchase.
Control Interface	Touchscreen interface for setting and displaying temperature, stirring, and pressure programs; capable of generating and exporting temperature & pressure–time curves.
