Automatic Lifting & Stirring High-Pressure Reactor with Vessel ( ID120xH600mm, 6.7L) & Max. 300 °C / 6 MPa - HPRVX356

  HPRVX356 is an customized automatic lifting & Stirring High-Pressure Reactor with an  6.7L Vessel up to 300 °C, 6 MPa pressure) and touchscreen control, ideal for hydrothermal and high-pressure chemical reactions.

SPECIFICATIONS

Power	Voltage: 220VAC+/-10% , three phase Power: 6.4 KW  Stirring Motor:  750 W by a magnetic coupling motor
Pressure Vessel	The reactor vessel is made of SS316 Max. Pressure： 6 MPa Vessel dimension： 120mm ID x 600 mm H  ( nominal capacity 6.78 L)

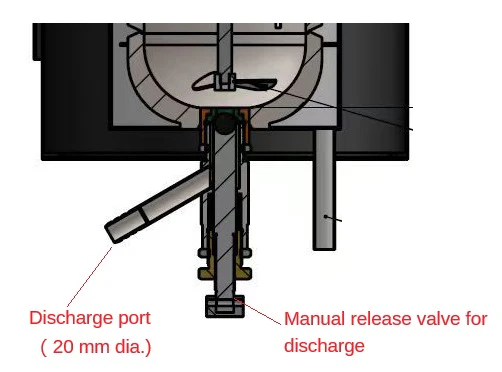

Ports and valves on the vessel	The cover of the reactor is operable manually to put a sample in A pressure release valve is installed at the top of the reactor to release pressure when the pressure exceeds the limit. A The thermal couple feedthrough port is built in Gas inlet and outlet ports with valves are installed One discharge port of 20 mm is built into the bottom of the reactor to release the slurry after mixing and reacting
Heating Jacket	Heating by an electric jacket up to 300 °C PID temperature control with +/- 1 oC accuracy Rapid cooling via a water recirculation around the vessel
Stirring System	Stirring torque: 300 N.cm Stirring speed： 10~1500 rpm adjustable Two stirring blades are included： anchor type and straight type   A customized stirring blade is available upon request
Control panel interface	Touch screen control panel that programs the pressure, temperature, stirring speed, and time RS-485 port  and software are included to record processing data
Water Chiller	One digital temperature-controlled recirculating chiller is included to cool the magnetic coupling motor  16L / min Flow, 2.8K BTU/hr
Product weight and  Dimension	Net weight:  ~ 400 kg Size:  730mm(L)×770mm(W)×2000mm(H)
Compliance	ISO 9001 certified manufacturer CE certified NRTL certification is available at an extra cost
Application Notes	Operators must be trained by MTI professinals
