Horizontal 64-Channel Hot Press Machine (Max. 170*120 mm, Dual-Side Tabs) for Pouch Cell SEI Formation - MSK-131-HMT64

Horizontal 64-Channel Hot Press Machine (Max. 170*120 mm, Dual-Side Tabs) for Pouch Cell SEI Formation - MSK-131-HMT64

Horizontal 64-Channel Hot Press Machine (Max. 170*120 mm, Dual-Side Tabs) for Pouch Cell SEI Formation - MSK-131-HMT64

MSK-131-HMT64 is a horizontal 64-channel hot press machine with precise and constant pressure delivery from 200 to 2000 kg. It is designed to provide a precise and even loading pressure and temperature environment for the tested pouch cell battery.

SPECIFICATIONS:

Feature	Compact size for space-saving and easy to use PLC control system and friendly HMI with a touchscreen panel Pressure plate adopts special treatment with high accuracy and small thermal deformation 32 layers of pressure plate, each layer can be used for 2 batteries, a total of 64 channels
Power Requirement	AC380V ±10%, 50Hz/60Hz, three-phase 10 kW
Working Pressure	Pressure Delivery: 200~2000kg, Pressure Accuracy: ±20kg (≤1000kg); ±40kg (>1000kg) Pressure Resolution: ±1kg
Heating Temperature	10°C to 90°C, ±2℃
Heating speed	RT to 80°C in 30mins (~ 2°C/min)
Battery Size	L1: 40-170mm, W1: 40-120mm, T: 3-12 mm, S: 10-20 mm, W2: 20-90 mm To customize battery sizes, please contact us for more information.
Battery Analyzer (Optional)	A battery analyzer is available upon request and it will be installed at the bottom of the formation machine.
Driven Gas	Driven by any standard air compressor, which is not included. Please click the picture on the left to order. 0.4-0.6 MPa Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.

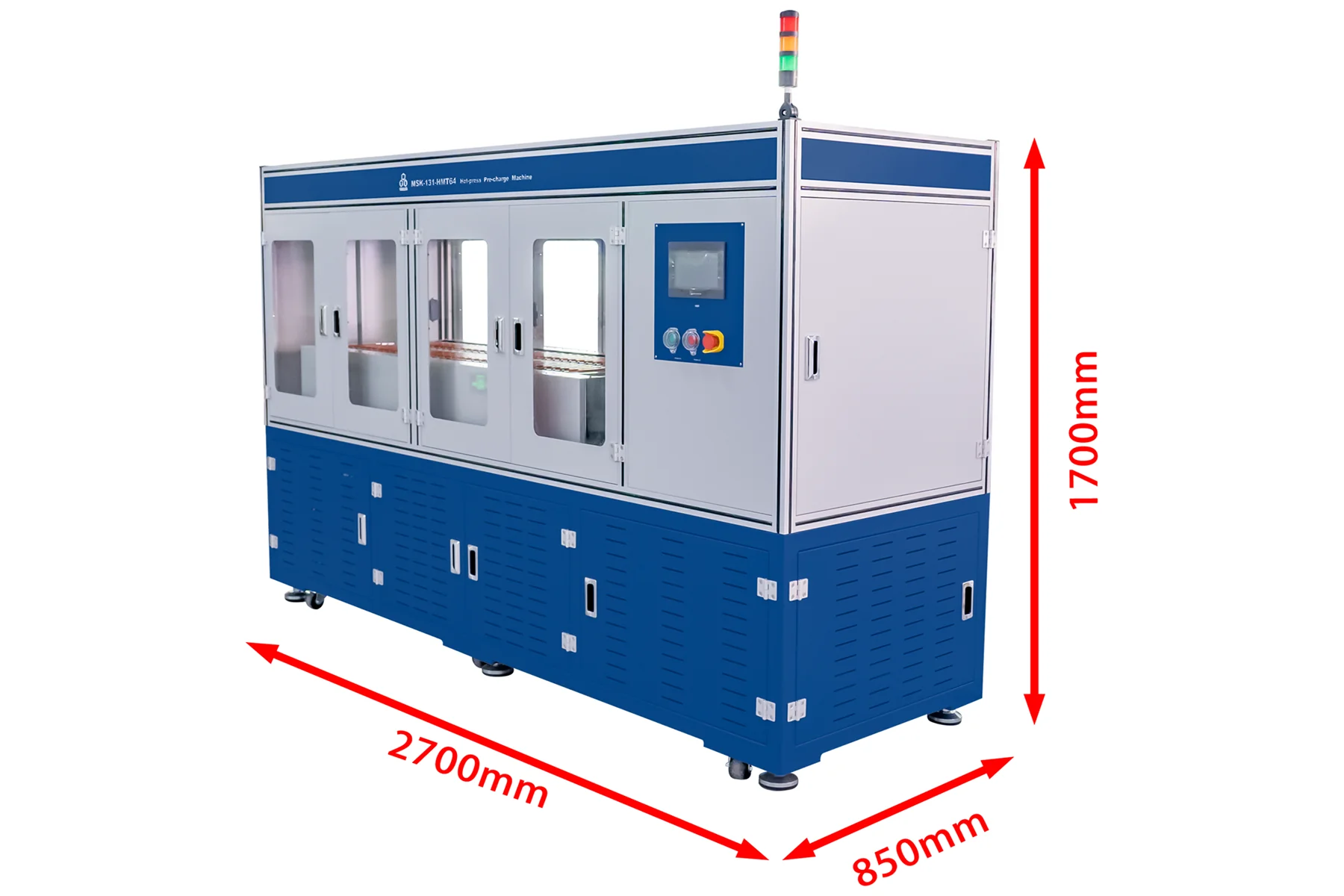

Dimension	L2700mmW850mmH1700mm
Compliance	CE approval NRTL certification is available upon request at extra cost. Please contact our sales representatives for a quote.

$99,980.00

Horizontal 64-Channel Hot Press Machine (Max. 170*120 mm, Dual-Side Tabs) for Pouch Cell SEI Formation - MSK-131-HMT64—

$99,980.00

More Images

Horizontal 64-Channel Hot Press Machine (Max. 170*120 mm, Dual-Side Tabs) for Pouch Cell SEI Formation - MSK-131-HMT64 - Image 2

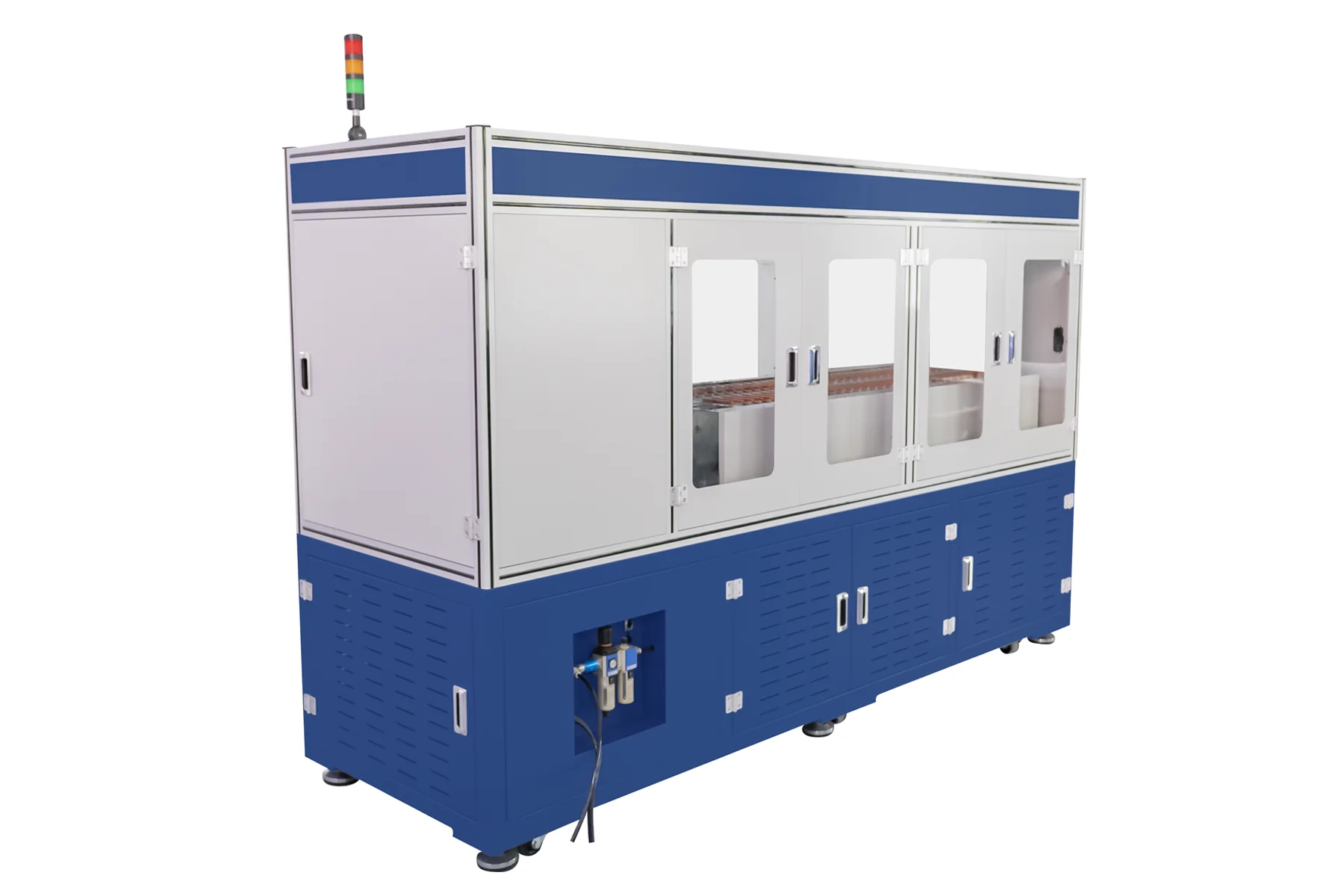

Horizontal 64-Channel Hot Press Machine (Max. 170*120 mm, Dual-Side Tabs) for Pouch Cell SEI Formation - MSK-131-HMT64 - Image 3

Horizontal 64-Channel Hot Press Machine (Max. 170*120 mm, Dual-Side Tabs) for Pouch Cell SEI Formation - MSK-131-HMT64 - Image 4

Horizontal 64-Channel Hot Press Machine (Max. 170*120 mm, Dual-Side Tabs) for Pouch Cell SEI Formation - MSK-131-HMT64

MSK-131-HMT64 is a horizontal 64-channel hot press machine with precise and constant pressure delivery from 200 to 2000 kg. It is designed to provide a precise and even loading pressure and temperature environment for the tested pouch cell battery.

SPECIFICATIONS:

Feature	Compact size for space-saving and easy to use PLC control system and friendly HMI with a touchscreen panel Pressure plate adopts special treatment with high accuracy and small thermal deformation 32 layers of pressure plate, each layer can be used for 2 batteries, a total of 64 channels
Power Requirement	AC380V ±10%, 50Hz/60Hz, three-phase 10 kW
Working Pressure	Pressure Delivery: 200~2000kg, Pressure Accuracy: ±20kg (≤1000kg); ±40kg (>1000kg) Pressure Resolution: ±1kg
Heating Temperature	10°C to 90°C, ±2℃
Heating speed	RT to 80°C in 30mins (~ 2°C/min)
Battery Size	L1: 40-170mm, W1: 40-120mm, T: 3-12 mm, S: 10-20 mm, W2: 20-90 mm To customize battery sizes, please contact us for more information.
Battery Analyzer (Optional)	A battery analyzer is available upon request and it will be installed at the bottom of the formation machine.
Driven Gas	Driven by any standard air compressor, which is not included. Please click the picture on the left to order. 0.4-0.6 MPa Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.
Dimension	L2700mmW850mmH1700mm
Compliance	CE approval NRTL certification is available upon request at extra cost. Please contact our sales representatives for a quote.

Product Information

Shipping & Returns

Description

MSK-131-HMT64 is a horizontal 64-channel hot press machine with precise and constant pressure delivery from 200 to 2000 kg. It is designed to provide a precise and even loading pressure and temperature environment for the tested pouch cell battery.

SPECIFICATIONS:

Feature	Compact size for space-saving and easy to use PLC control system and friendly HMI with a touchscreen panel Pressure plate adopts special treatment with high accuracy and small thermal deformation 32 layers of pressure plate, each layer can be used for 2 batteries, a total of 64 channels
Power Requirement	AC380V ±10%, 50Hz/60Hz, three-phase 10 kW
Working Pressure	Pressure Delivery: 200~2000kg, Pressure Accuracy: ±20kg (≤1000kg); ±40kg (>1000kg) Pressure Resolution: ±1kg
Heating Temperature	10°C to 90°C, ±2℃
Heating speed	RT to 80°C in 30mins (~ 2°C/min)
Battery Size	L1: 40-170mm, W1: 40-120mm, T: 3-12 mm, S: 10-20 mm, W2: 20-90 mm To customize battery sizes, please contact us for more information.
Battery Analyzer (Optional)	A battery analyzer is available upon request and it will be installed at the bottom of the formation machine.
Driven Gas	Driven by any standard air compressor, which is not included. Please click the picture on the left to order. 0.4-0.6 MPa Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.
Dimension	L2700mmW850mmH1700mm
Compliance	CE approval NRTL certification is available upon request at extra cost. Please contact our sales representatives for a quote.
