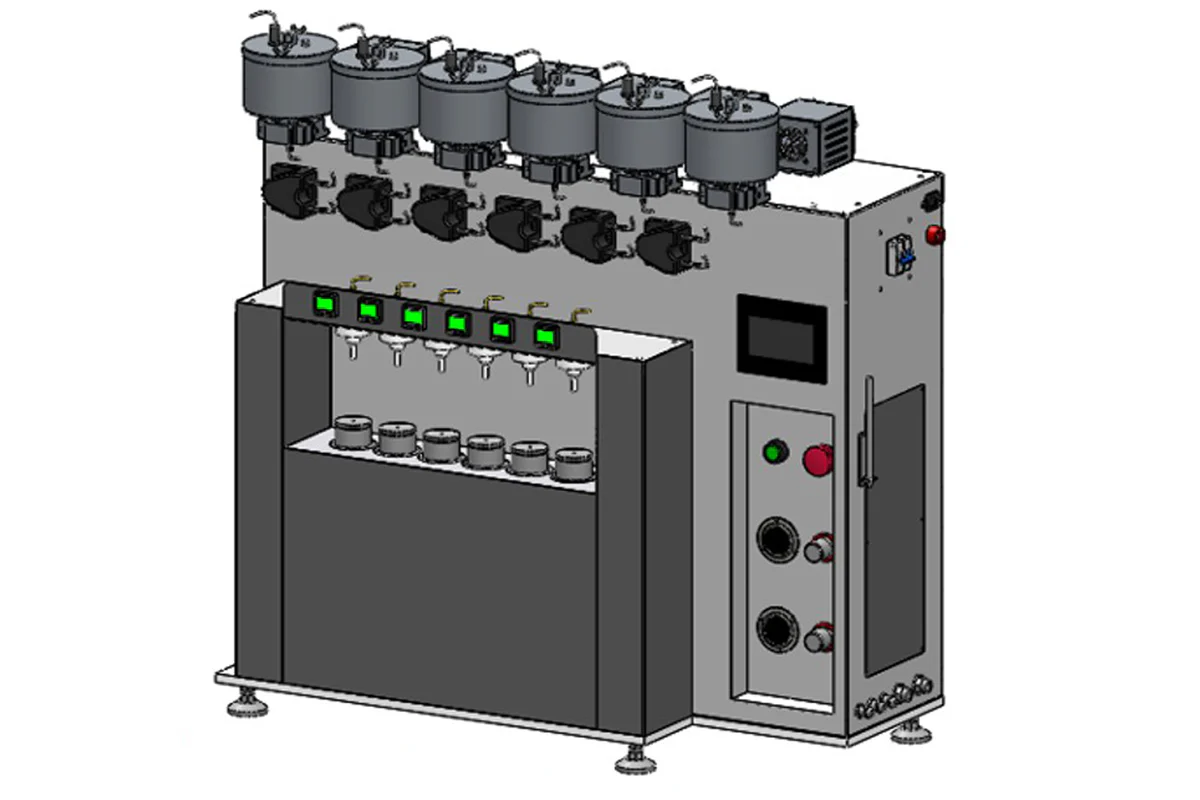

High-Throughput Six-Channels Vacuum Electrolyte Injection System for Cylindrical Cells - MSK-113-SVM-CNSD

Input Power

• AC 110-220 V±10%, 50/60Hz, Single phase
• Power: 750 W

 Electrolyte Dispenser

• Precise electrolyte plunger metering pumps are installed for electrolyte filling;
• Electrolyte filling volume and injection rate adjustable via touch screen PLC control

 Electrolyte Tank

• Max. 300ml

 Cell Size

• 4680 cylindrical cells (other size cylindrical cells are also acceptable by providing customized cell holder)

 Injection Accuracy

• Electrolyte Volume (g)	1g	5g	10g
  Injection Accuracy	±7%	±3%	±2.5%

 Positive Pressure Filling

• Maximum applied pressure 120 KPa, adjustable

 Vacuum Rate

• Maximum - 95 KPa, adjustable

Tubing Size

• Electrolyte Flow Tubing (PTFE): O.D. 3 mm, I.D. 2 mm
• Injection Tubing (BPT): O.D. 5 mm, I.D. 3 mm
• Transfer Tubing (BPT): O.D. 6.4 mm, I.D. 3.2 mm

 Vacuum Pump (not included)

• Double-stage rotary vacuum pumps are needed for vacuum diffusion, degassing, and vacuum sealing.
• Please click the picture on the left to purchase separately.

 Working Gas

• 0.5~0.8 MPa high purity compressive inert gas (Ar is preferred) is required for driving the pneumatic system in the glove box
• Continues dry inert gas purging for the working chamber is required to maintain a dry atmosphere for electrolyte injection and diffusion
• Air compressors and fitting are required if used in the dry room, but not included. please click here to order
• Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator
•



Dimension

• L900*W400*H950mm

 Compliance

• NRTL Certification is available upon request at an extra cost
