Heavy-duty Shredder w/ Speed Control for All Types of Waste Li-Ion Batteries - E-180
HomeStore

Heavy-duty Shredder w/ Speed Control for All Types of Waste Li-Ion Batteries - E-180

Heavy-duty Shredder w/ Speed Control for All Types of Waste Li-Ion Batteries - E-180

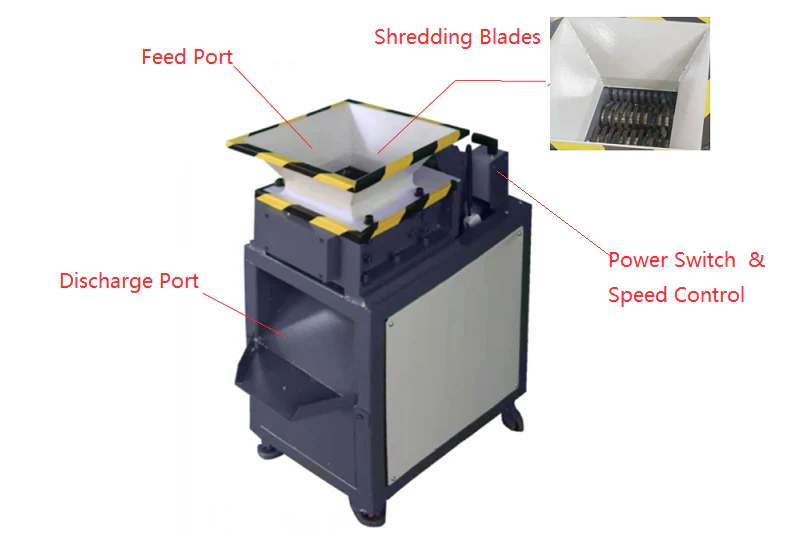

E-180 is a small and heavy-duty shredder for cutting all types of waste materials, such as metallic, plastic, and circus sheets into small pieces. It is excellent for recycling all types of waste batteries ( pouch & cylindrical cells)

SPECIFICATIONS
Power Requirements
  • Input: 208V-240V 50/60Hz
  • Power:  2000W
  • 110VAC is available via a 3000W transformer
Shredding shaft
  • Rotating Shaft Diameter:  35 mm
  • Rotating Speed:   0 - 25 rpm variable by constant torque
  • Torque force:         400Nm
Cutting Blades
  • Blade Material: H13 tool steel
  • 21 pieces of blades are built-in
  • Spare blades are available upon request at the extra cost ( ~$3000 )
Dimension (W×D×H)
  • Dimension:  510 mm L×300 mm W × 750 mm H
  • Weight:  120 Kg
    SheddCapability
  • Max. 20kg/ hr for metallic materials
  • Max. 100 kg/ hr for plastic Materua;
    Compliance
  • CE certified
  • NRTL or CSA certification is available at the extra cost
    Warranty
  • One-year limited warranty with lifetime support
    Operation Manual & Video

    Optional

  We may connect the shredder to the vibrating screen sieve to separate the larger piece discharge from small pieces.  The extra cost will be applied
Application Notes
  • .Warning: Before shedding Li-ion batteries,  Please make sure the battery has zero voltage.  You may use a nail penetration machine ( Pic.1 to the short circus the battery before cutting
  •  We may add an N2 gas jetting nozzle with a temperature sensor for Extinguishingat at the extra cost.
  • You shall add dust removing fixture on the top of the shredder
  • Pic. 1  Pic. 2
$4,194.75

Original: $11,985.00

-65%
Heavy-duty Shredder w/ Speed Control for All Types of Waste Li-Ion Batteries - E-180—

$11,985.00

$4,194.75

More Images

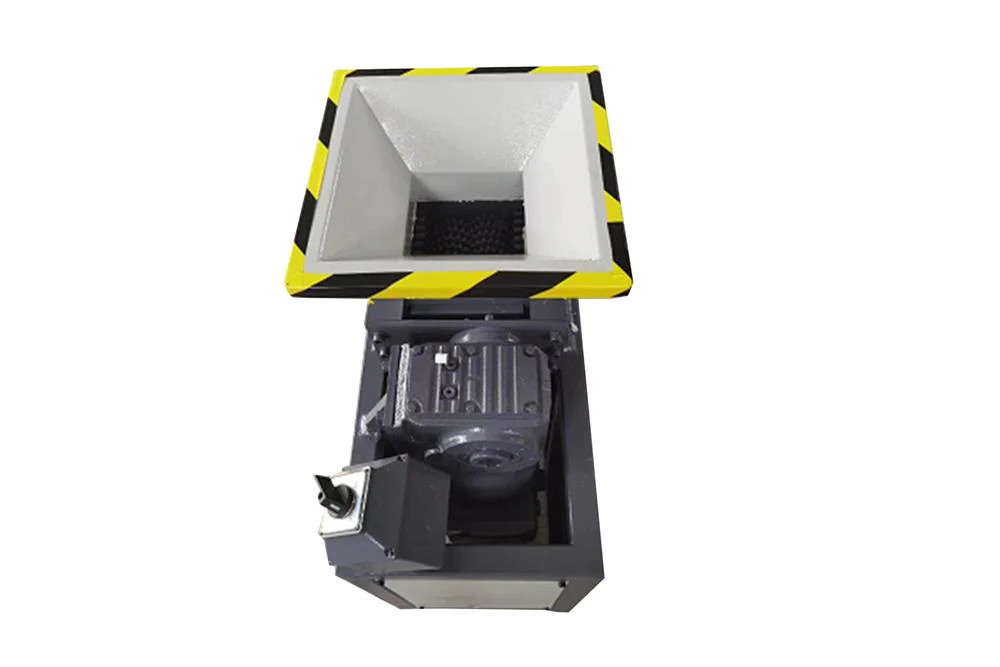

Heavy-duty Shredder w/ Speed Control for All Types of Waste Li-Ion Batteries - E-180 - Image 2
