280C Max Hot Dry Pellet Pressing Die (Carbon Steel) with Temperature Controller (Ar Glovebox Compatible) - HC-D
HomeStore

280C Max Hot Dry Pellet Pressing Die (Carbon Steel) with Temperature Controller (Ar Glovebox Compatible) - HC-D

280C Max Hot Dry Pellet Pressing Die (Carbon Steel) with Temperature Controller (Ar Glovebox Compatible) - HC-D

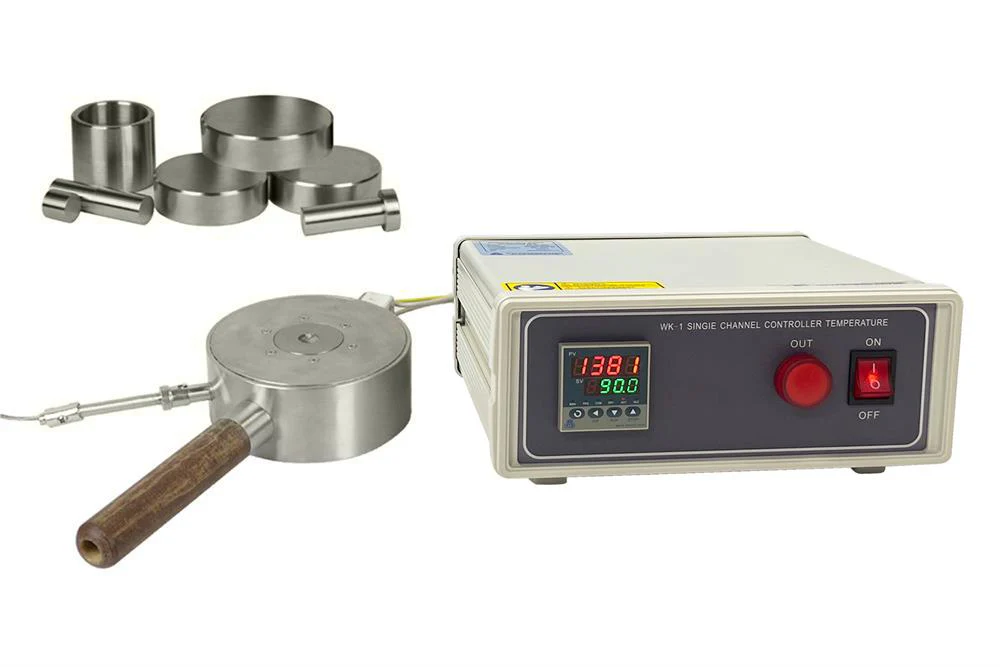

HC-D heatable die contains 0.5",1.5" or 3.0'' I.D dry pellet pressing die set and heating jacket (Max. 280 ºC) with a digital temperature controller. A wooden handle is attached for easy handling.

SPECIFICATIONS:

Model HC-025D HC-05D HC-075D HC-15D  HC-30D
Product structures
 Including one set of
0.25"(I.D.) Dry Pressing Die:
6 metric Ton Max Load. 		Including one set of 0.5" ( I.D. ) Pressing Die:
10 metric Ton Max Load. 		Including one set of 0.75" (I.D.) Pressing Die:
12 metric Ton Max Load. 		Including one set of 1.5"
( I.D. ) Pressing Die:
16 metric Ton Max Load. 		Including one set of 3.0"( I.D.) Pressing Die:
16 Ton Max Load.
Product Dimensions
Hardness > HRC 60
Roughness Average (Ra) 0.08 μm
Voltage
  • AC 220V 50/60Hz (To use AC 110V, please order a 500W transformer )
  • 220V AC Power plug is not included. Please click here to order the plug)
Working Temperature Range 50-280 ºC
Temputerature Control Method
  • Single-point digital temperature controller
  • Type-K thermocouple



Steps to Make Sample Pellet
  • Mixing and grinding chemical powder by agate mortar or Ball Mill.
  • Calcine mixed the powder in a high temp furnace under a suitable temperature.
  • Crushing and Grinding calcined powder again by mortar or ball mill.
  • Put calcined powder into the die.
  • Pressing sample by a pressing machine under suitable pressure.
  • Take out pellet samples from the die.
  • Sintering the pellet under a suitable temperature.
  • The sample is ready.
Cautions
  • Please consider using the 3'' Dia. Sieve Set No.200&450 Mesh to separate the 32~75 microns particles from the powder clumps. Please clean the mold via ethanol after the completion of each experiment.
  • Please use ethanol to clean the pressing die every time before use.
  • Store it in a dry environment with antirust oil after the operation to avoid rusting. No warranty for rushing.
  • For pressing sticky metal powders such as Al, Mg, Zn, it is necessary to use dry or alcohol-based tool lubricant to lubricate the die and sleeve set to reduce friction during the compression.
  • You may consider using BN coating (BNMR) for easy mold release. Please click the picture below to order.



Select Size of Pressing Die
From $874.30

Original: $2,498.00

-65%
280C Max Hot Dry Pellet Pressing Die (Carbon Steel) with Temperature Controller (Ar Glovebox Compatible) - HC-D—

$2,498.00

$874.30

280C Max Hot Dry Pellet Pressing Die (Carbon Steel) with Temperature Controller (Ar Glovebox Compatible) - HC-D

HC-D heatable die contains 0.5",1.5" or 3.0'' I.D dry pellet pressing die set and heating jacket (Max. 280 ºC) with a digital temperature controller. A wooden handle is attached for easy handling.

SPECIFICATIONS:

Model HC-025D HC-05D HC-075D HC-15D  HC-30D
Product structures
 Including one set of
0.25"(I.D.) Dry Pressing Die:
6 metric Ton Max Load. 		Including one set of 0.5" ( I.D. ) Pressing Die:
10 metric Ton Max Load. 		Including one set of 0.75" (I.D.) Pressing Die:
12 metric Ton Max Load. 		Including one set of 1.5"
( I.D. ) Pressing Die:
16 metric Ton Max Load. 		Including one set of 3.0"( I.D.) Pressing Die:
16 Ton Max Load.
Product Dimensions
Hardness > HRC 60
Roughness Average (Ra) 0.08 μm
Voltage
  • AC 220V 50/60Hz (To use AC 110V, please order a 500W transformer )
  • 220V AC Power plug is not included. Please click here to order the plug)
Working Temperature Range 50-280 ºC
Temputerature Control Method
  • Single-point digital temperature controller
  • Type-K thermocouple



Steps to Make Sample Pellet
  • Mixing and grinding chemical powder by agate mortar or Ball Mill.
  • Calcine mixed the powder in a high temp furnace under a suitable temperature.
  • Crushing and Grinding calcined powder again by mortar or ball mill.
  • Put calcined powder into the die.
  • Pressing sample by a pressing machine under suitable pressure.
  • Take out pellet samples from the die.
  • Sintering the pellet under a suitable temperature.
  • The sample is ready.
Cautions
  • Please consider using the 3'' Dia. Sieve Set No.200&450 Mesh to separate the 32~75 microns particles from the powder clumps. Please clean the mold via ethanol after the completion of each experiment.
  • Please use ethanol to clean the pressing die every time before use.
  • Store it in a dry environment with antirust oil after the operation to avoid rusting. No warranty for rushing.
  • For pressing sticky metal powders such as Al, Mg, Zn, it is necessary to use dry or alcohol-based tool lubricant to lubricate the die and sleeve set to reduce friction during the compression.
  • You may consider using BN coating (BNMR) for easy mold release. Please click the picture below to order.
