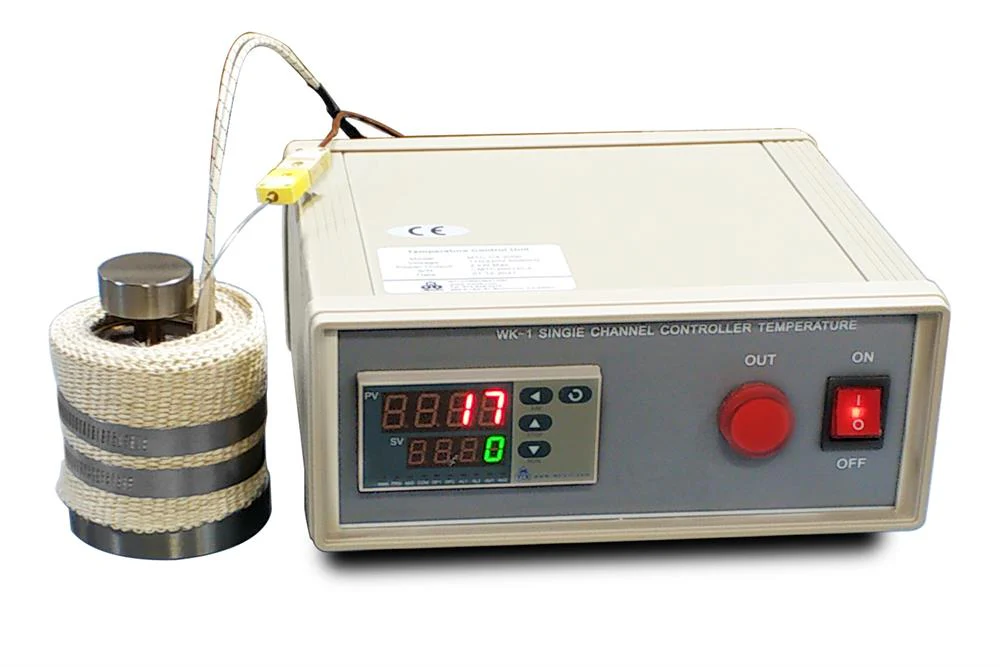

400C Max. Alloy Pellet Pressing Die 1/2" ID w/ Band Heater and Temperature Controller - HC-12DHT

HC-12DHT is designed for heating 1/2" I.D. Refractory Alloy Pressing Die with a Band Heater and a Single-setpoint Temperature Controller. Programmable Temperature Controller is standard from 03/09/2021.

SPECIFICATIONS:

Model	HC-12DHT

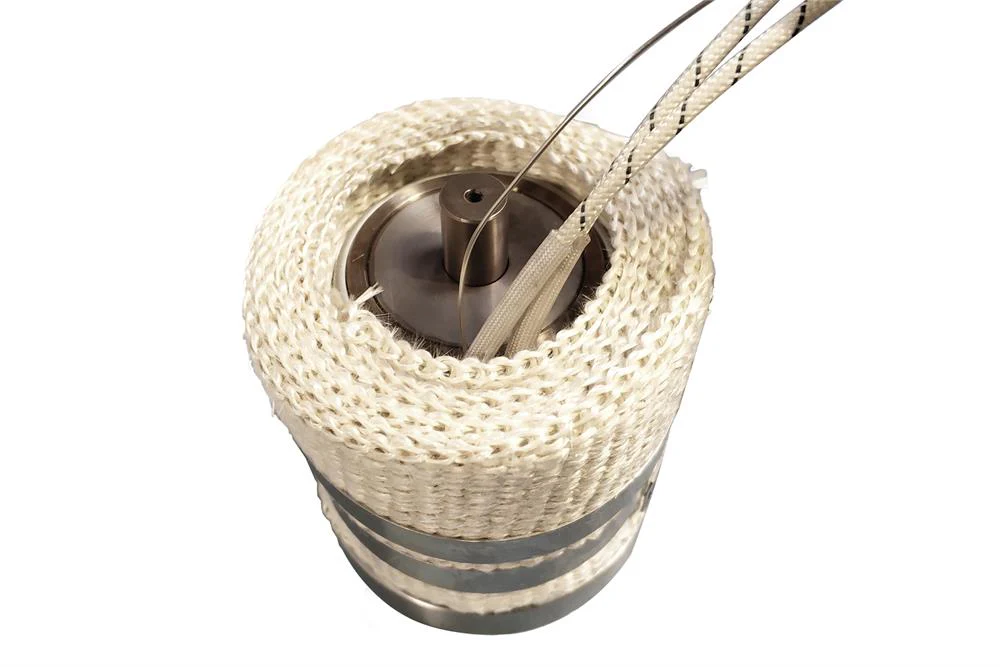

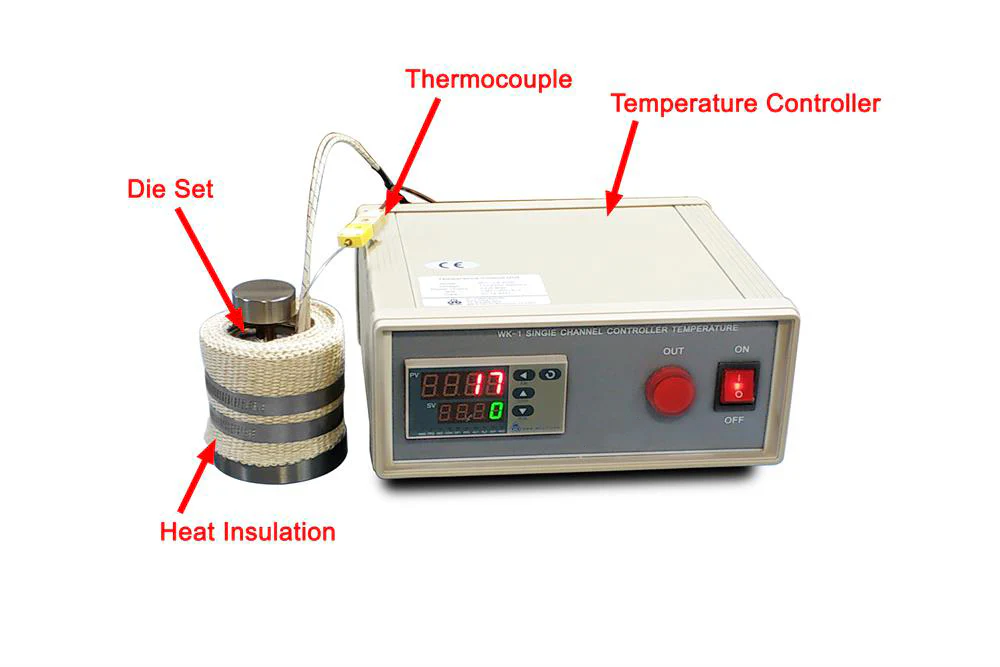

Structure	The standard Heatable Die Set includes: A set of 400°C Max. Refractory Alloy Die, 1/2" I.D. Dry Pellet Pressing Die - Die-12DHT Pressing die sleeve: 2" (50mm) O.D. × 1/2" (12mm) I.D. × 2 3/8" (60mm) H Upper Pushing Rod: 1/2" (12mm) Dia. Lower Rod: 1/2" (12mm) Dia. Sample Retrieval Rod Sample Retrieval Sleeve Upper and Lower Supporting Plate Heat Insolation Plate Band Heater (rated to 480 ºC) with connecting cable: 50mm I.D. × 50mm H Ceramic Heat Insulation Tape with Steel Clamps Programmable Temperature Controller Type-K thermocouple with connecting wire
Voltage	110 VAC 50/60Hz 220 VAC 50/60Hz available upon request at the same price
Power	550W
Working Temperature Range  and Pressure	Temperature: RT - 400 ºC (For applications at higher temperature, please check below for our Hi-temp Dies) Pressure: 400 MPa at 400 ºC ( 5 metric Ton )
Temperature Control	Programmable PID temperature controller with a type-K thermocouple. Temperature Accuracy: +/- 2°C
Application Note	Please must always wear protective goggles during the operation ! Please clean the mold via ethanol after the completion of each experiment. We strongly recommend using professional laboratory hydraulic pressers that ensure the most even pressing interface and uniform pressure force as below. (pic.1) For higher temperature applications, please order our 550°C Heating Jacket with Si3N4 Die - HC-SiN-12 (pic.2 &3) For use with our Splittable Graphite Dry Pressing Die of 1/2"(12.7mm) I.D. - Die-05D-GP-4S, please contact for specifications and pricing details. Graphite Die can only be used with inert gas, such as in a Glovebox. (pic.4 & 5)  pic.1  pic.2  pic.3  pic.4 pic.5
