GdScO3 (110) 5x5x0.5mm 1sp - GSOe050505S1US

Specifications:

Material	GdScO3
Size	5mm x 5mm x 0.5mm
Orientation	(110) + / - 0.5 o
Edge direction	<001> with notches

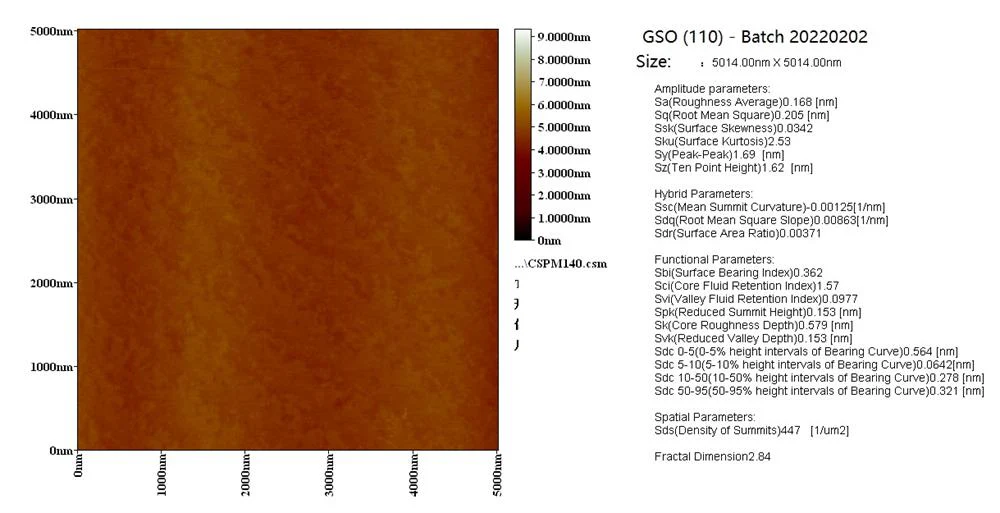

Polish	one side EPI polished with surface roughness Ra< 5 A ( measured by AFM 5x5 μ area)
Package	one 1000 class clean room with 100 class plastic bag

Features:

• Good lattice matches with perovskite structure superconductors
• Perfect for ferroelectric epitaxial thin film
• Warning:


The above single crystals are extremely difficult to grow due to the ultra-high melting point. Nobody can promise each substrate has no defects such as domain, dislocation, and twins If your application is very sensitive to the defects, you must check the substrate by XRD before growing film. MTI will replace the unsatisfied substrate which has no film grown and no damage at free of charge until you are satisfied. No order cancelation is accepted.

Properties

Crystal	Structure /Lattice Constant(A)	MP oC	Density (g/cm3)	Growth Tech
DyScO3	Orthorombic a=5.44 b=5.71 c=7.89	2127	6.9	CZ
GdScO3	Orthorombic a=5.45 b=5.75 c=7.93	2127	66	CZ
TbScO3	Orthorombic a = 5.4543 b = 5.7233 c = 7.9147	2127	66	CZ
