Atmospheric Plasma Jet-Flow system (Plasma Pen) for Surface Treatment-GSL1100XPJF

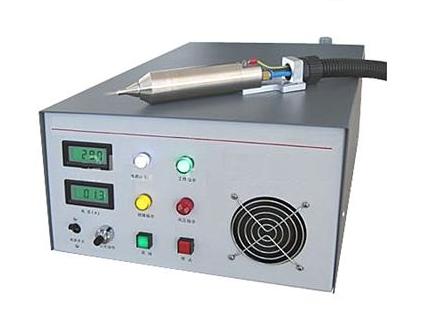

GSL1100X-PJF is a compact Atmospheric Plasma Jet-Flow ( so-called  Plasma Beam, Plasma Pen) system for surface Treatment, which consists of RF generator, flexible gas delivery pipe, and plasma beam head. The plasma jet flow can activate and clean material surface rapidly at low temperature without vacuum, such as single crystal wafer, optical component, plastics, etc. It is an excellent tool for cleaning wafer surfaces before epitaxial or optical fiber before welding to obtain higher quality. This device also may be used for studying atmosphere pressure CVD.

Features	High-speed surface treatment with a simple and safe operation Neither vacuum  nor chamber required with versatile plasma chemistry Handheld or in-line processing at low cost lightweight and compact size
Input Power	Standard AC 208V - 240V, 50/60 Hz, 1000W AC110V power is available with an additional 1000W transformer, please order separately
Output Frequency	20-23 kHz
Plasma Beam	one plasma beam head is included Beam head size10-12mm diameter. Temperature:         Beam temperature is < 60oC for short time.  The plasma beam shall keep scanning to keep the sample surface temperature low.
Input Gas Pressure and Working Gases	40 PSI min. Air, N2, Ar, He, or any mixed gas  ( 5N purity prefered0 Dry compressive gas can be used ( no flammable and explosive gases)
Plasma working Pressure	7- 10 PSI
Working Environment	Temperature: < 42°C Humidity:: : ≤ 40RH  No flammable gas
Overall Dimensions	380 (W) ×210 (H) ×500 (D) mm
Net Weight	10 kg
Warranty & Certificate	One year limited with lifetime support CE certified
Operation Manual
Application Notes	This Atmospheric Plasma Jet-Flow system is excellent to clean plastic, polymer, and oxide substrate surface before coating You may click the picture below to order our automatic scan system to achieve clean or coating for a 10" x 10" area
