1500°C SiC Electric Heating Element (525 mm L) - G1500HE525

1500°C SiC Electric Heating Elements are used in applications ranging in temperature from below 600°C and up to 1500°C in both air and controlled atmospheres, and the type of atmosphere used will determine the maximum recommended element temperature.

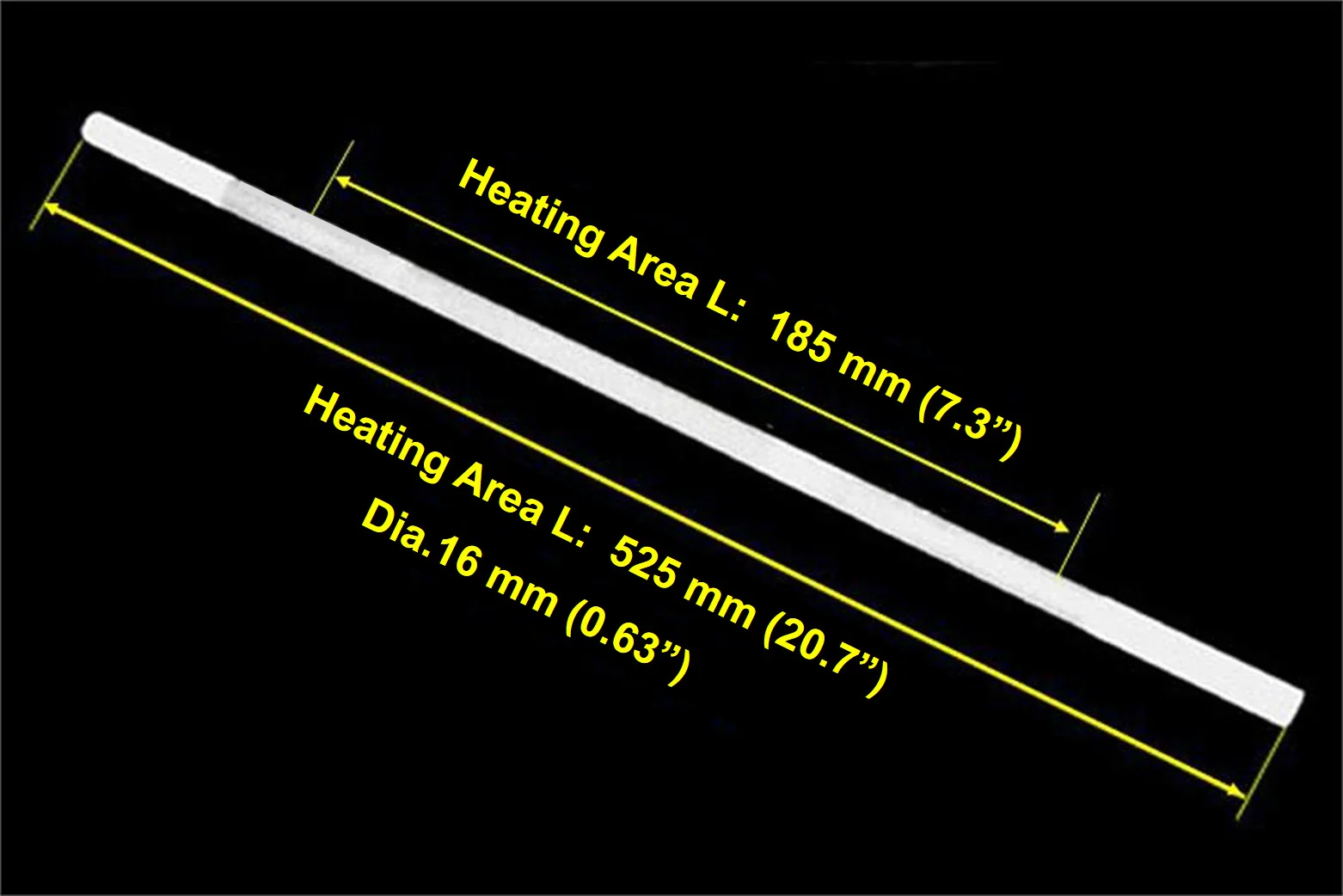

Specifications: Materials: SiC   Working temperature: max. 1500°C Continuous working temperature 1500°C Replace heating elements for MTI's OTF-1700X-12Z tube furnace only ( each furnace has 28 SiC heating elements rods) Dimension: 0.63" (16 mm) Dia. 7.3" (185 mm)  heating zone 20.7” (525 mm)  overall length

Installation of the SiC rods:  https://www.youtube.com/watch?v=r9uy-PoYhaw Notice: For SIC heating element, it is a consumable part, and usually the high performance service life is one year.

Inspect your delivery:
Please check package for damages before accepting delivery.
Should damages found, please keep all packaging materials, take pictures, and report immediately to carrier/MTI.

No Warranty:
Kindly note this item is a consumable part, and not covered by warranty. Make sure to inspect for defect(s) thoroughly before use.
