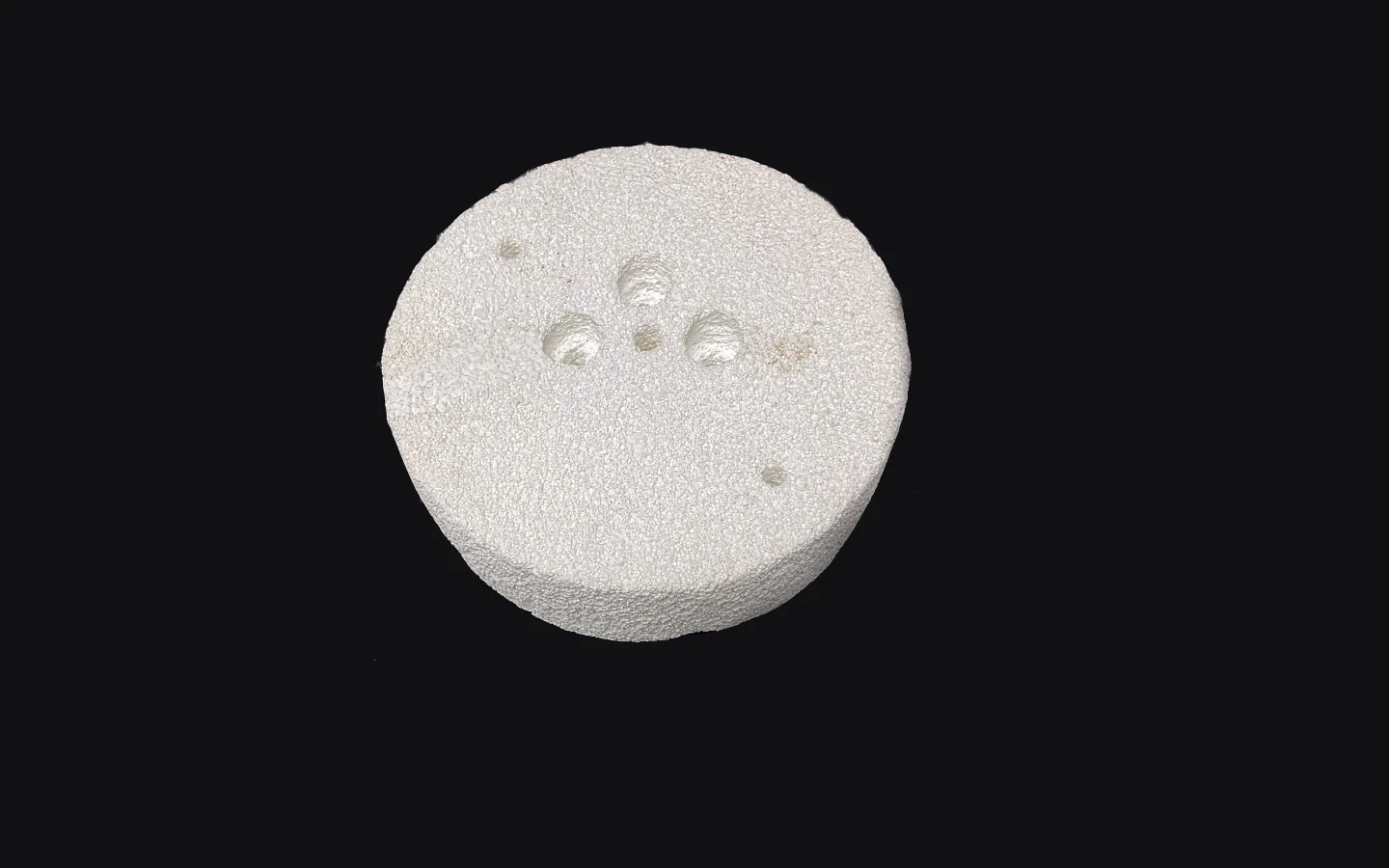

Alumina Foam Block: 190 mm Dia w/ Three 20mm Holes and One 10mm Hole for VEF-1200 Furnace - FTB190-VEF

MTI Corporation provides high-quality Alumina (Al₂O₃)  foam blocks with hardening alumina coating for high-temperature furnaces in universities, companies, and national labs.

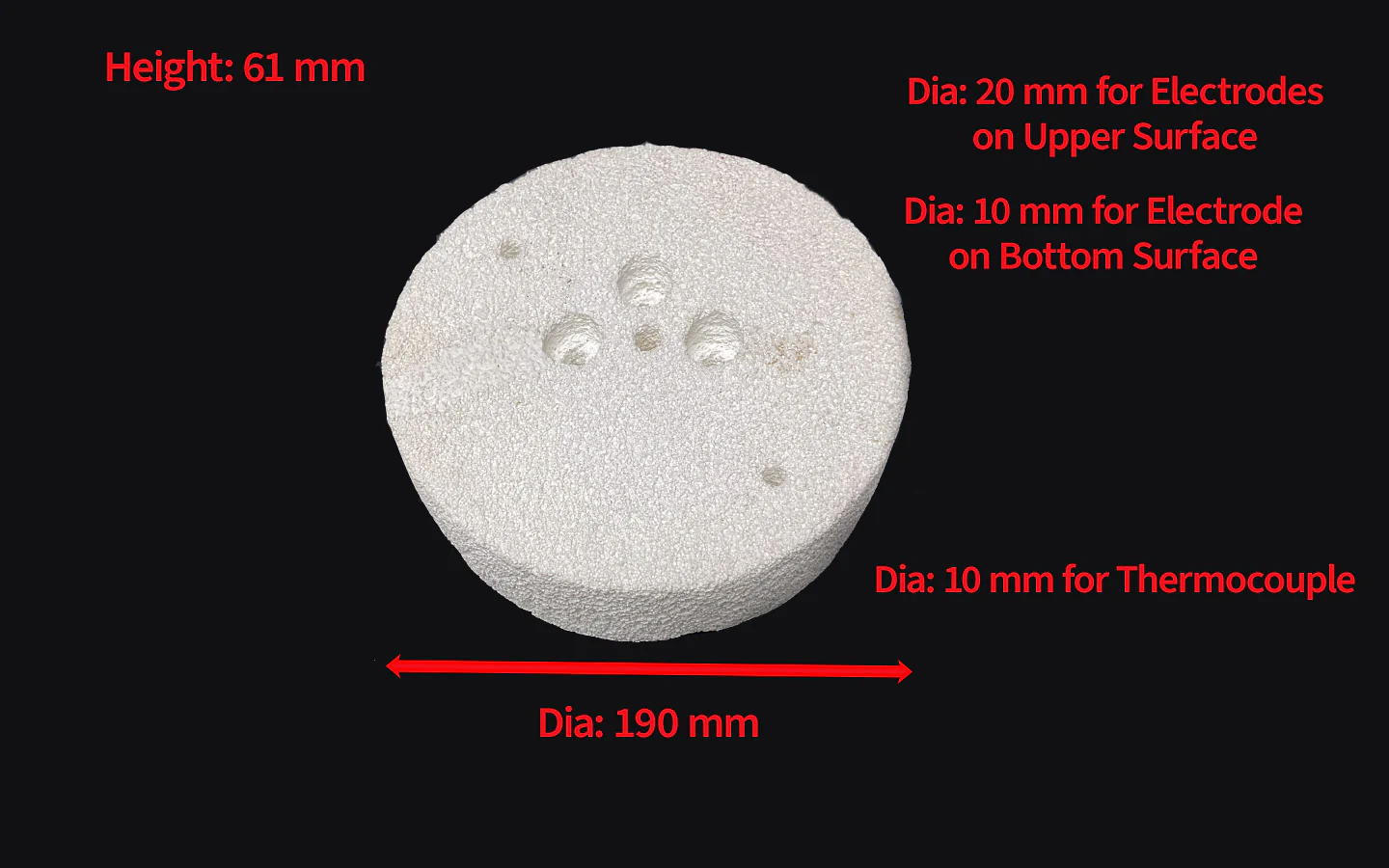

Specifications:

• Max. Working Temperature: < 1700ºC
• Diameter: 190 mm
• Height: 61 mm
• Feedthrough Diameter for Thermocouple: 10 mm
• Feedthrough Diameter for Electrodes: 20 mm
• The block must be placed between the sample and the flange.
• Fit for 1200 ºC Electrolytic Furnace with Electrodes for Molten Salts - VEF-1200



Application Note:

• To prevent the dust-falling issues and ensure a cleaning process, it is suggested to apply a thin layer of alumina adhesive material on the surface of foam block. Please the underline to order.



Inspect your delivery:

• Please check the package for any damages before accepting delivery. If damages are detected, retain all packing material, document the conditions with photos, and report the issue immediately to the carrier and MTI.

No Warranty:

Kindly notice that this item is a consumable part and is not covered under warranty. Please conduct a thorough inspection for any defects before use.
