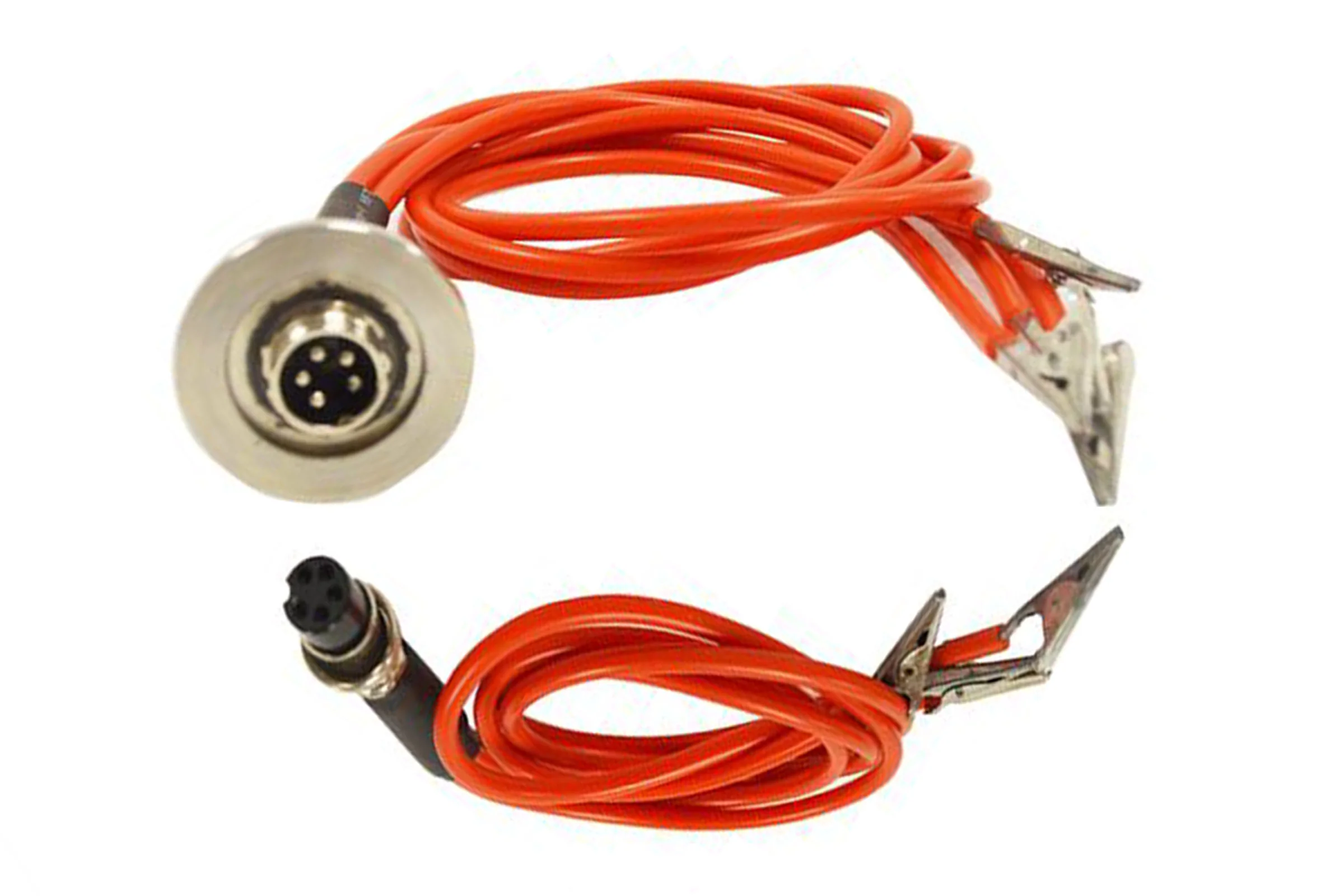

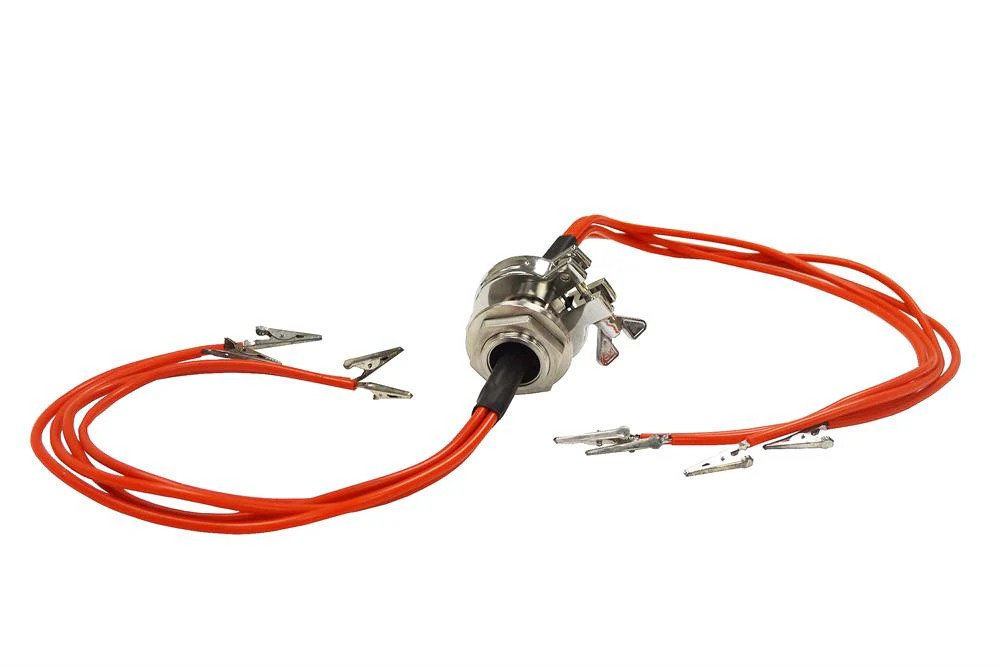

4-Pin Electrical Feedthrough with KF-25 Clamp for Oven - FT-KF25
4-Pin Electrical Feedthrough with KF-25 Clamp is used to transferred electrical currents and signals into DZF Oven in a vacuum. The Electrical Feedthrough has 4 wires with clip connectors.
Specifications:
| Port | KF-25 Fitting |
| Max Voltage | 1000V |
| Max Current in Vacuum | 100mA |
| Vacuum Rating | - 0.1Mpa ( Vacuum in Oven) |
| Number of Cables | 4 |
| Cable Connectors | Alligator Clips |
| Cable Length | 19" Inside and 19" Outside |
| Operating Temperature | -20°C to 200°C (-4°F to 392°F) |
| Exploded View & Dimensions |

|
| Applications |   |
| Optional |
|
Pic.1
Pic.2
Select Options
From $103.25
Original: $295.00
-65%4-Pin Electrical Feedthrough with KF-25 Clamp for Oven - FT-KF25—
$295.00
$103.25More Images
4-Pin Electrical Feedthrough with KF-25 Clamp for Oven - FT-KF25
4-Pin Electrical Feedthrough with KF-25 Clamp is used to transferred electrical currents and signals into DZF Oven in a vacuum. The Electrical Feedthrough has 4 wires with clip connectors.
Specifications:
| Port | KF-25 Fitting |
| Max Voltage | 1000V |
| Max Current in Vacuum | 100mA |
| Vacuum Rating | - 0.1Mpa ( Vacuum in Oven) |
| Number of Cables | 4 |
| Cable Connectors | Alligator Clips |
| Cable Length | 19" Inside and 19" Outside |
| Operating Temperature | -20°C to 200°C (-4°F to 392°F) |
| Exploded View & Dimensions |
|
| Applications | |
| Optional |
|
