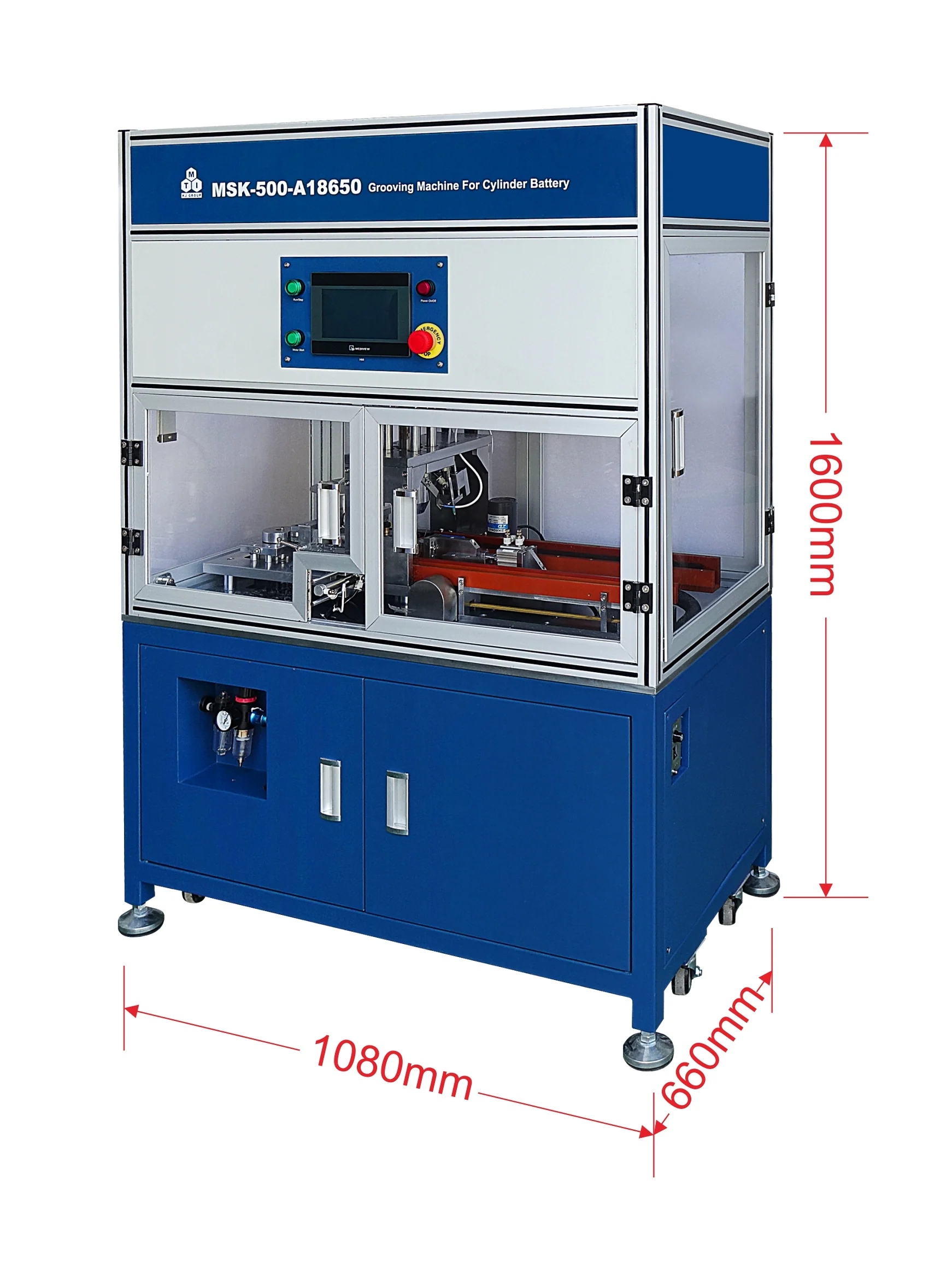

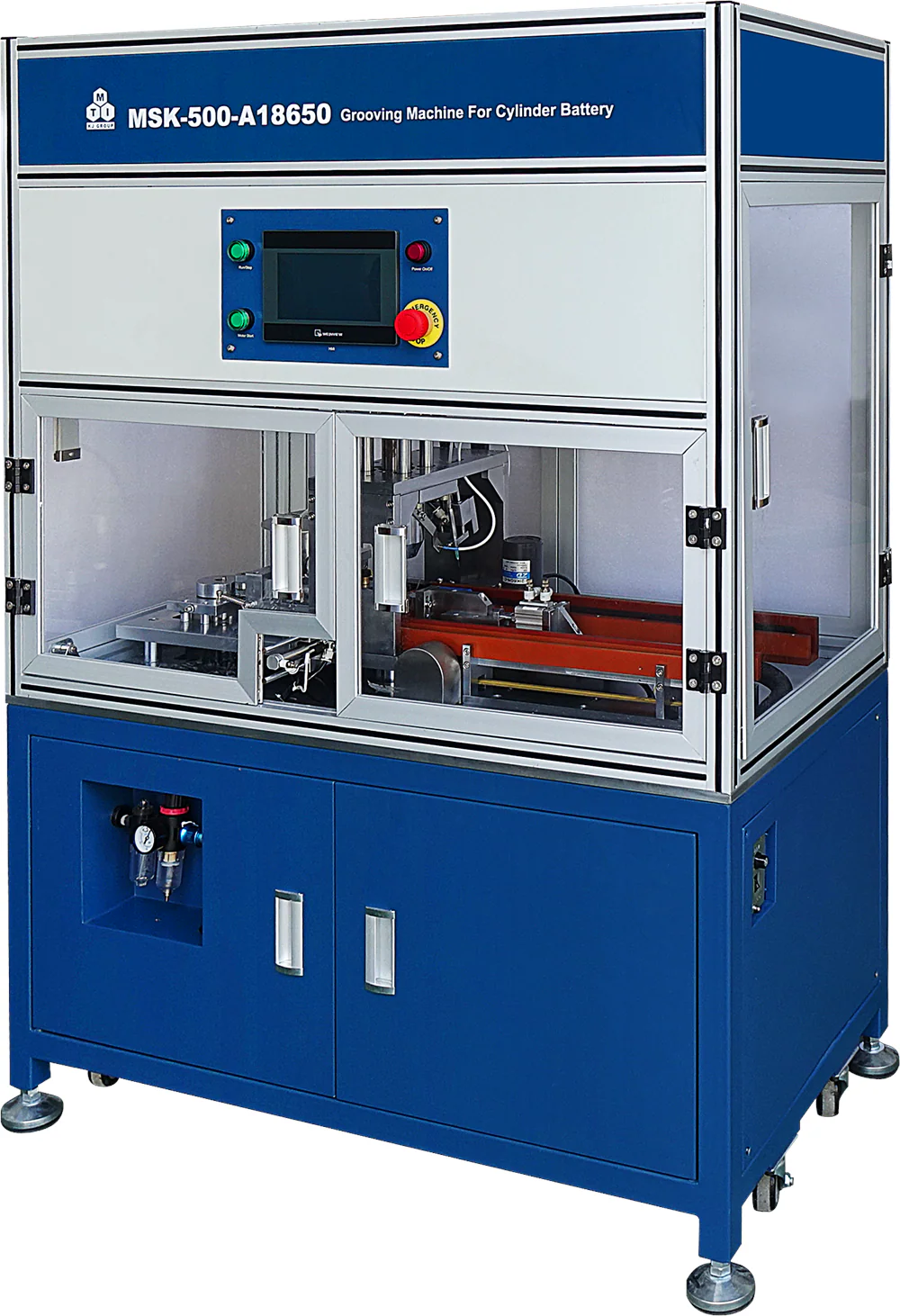

Floor-stand Auto Grooving Machine for Batch Processing of Cylindrical Battery Casings - MSK-500-AR18650

MSK-500-AR18650 is an auto grooving machine for 18650 cylindrical battery cases. It provides a continuous workflow for case batch loading - neck grooving - case unloading without dedicated labor.

Advanced Features:

• Efficient batch loading/unloading mechanism with case feeding conveyor
• Horizontally positioned grooving blade ensures the most stable and accurate grooving
• Micrometer assisted grooving depth & height adjustment
• Ability to compensate the axial deformation of a cylindrical casing
• User-friendly human-machine interface with PLC touch screen control
• Floor-Stand enclosure with transparent front & side openable windows allow clear process monitoring and adjustment

SPECIFICATIONS:

Working Voltage	220V AC, 50/60Hz, three Phase
Max. Power Consumption	1KW
Air Pressure	0.5 MPa~0.8Mpa is required (Air Compressor is not included, please click here to order) Attention: If a gas cylinder is used instead of air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.   pic1  pic2
Compatibility	Standard grooving capability for 18650 case  Note: CR123 / 18650 / 26650 / 32650 / AA is available upon request, please contact us for more details.
Control	User-friendly HMI with PLC touch screen control ensures easy program setup
Grooving Dimensions	Micrometer assisted grooving depth & height adjustment Depth: 1 - 2.0 mm Width: 1 - 1.5 mm 18650 Grooving Dimensions for reference A: 3.4 - 3.7 mm B: 13.6 - 14.2 mm C: 1.3 - 1.5 mm
Grooving Accuracy	+/- 0.1 mm
Grooving Blade Life Span	>1 million times
Grooving Force	6kgf/cm^2
Compression Ratio	Percentage in height: 80%
Productivity	Material feeding conveyor is able to load upto 22 pcs per batch 30 pieces per minute
Compliance	CE Certified
Optional Function	With the optional slurry SS reservoir and feeding pump, it can apply a thin layer of insulation coating on the "neck" after grooving to further enhance the sealing quality between the cap and case body. This approach can prevent the electrolyte leaking due to the gasket aging on the cap. Please contact us for more details.
Application Notes	Customized die for other cylindrical cell types is available upon request It is necessary to seal the cap of the cylindrical case by using the MSK-510-AR18650 sealing machine after grooving the opening end Each type of cylinder cell can only be grooved specifically by the certain model of this equipment. Please select the type of cylinder cell in the Product Options drop box to check the model number and price for the corresponding grooving die of each cylinder cell type Please check the chart below to order the cylindrical cases. P/N Description (click to view details) Case Dimensions EQ-Lib-CR123 100 pcs CR123 cylindrical case EQ-Lib-18650 100 pcs 18650 cylindrical case EQ-Lib-26650 100 pcs 26650 cylindrical case EQ-Lib-32650 60 pcs 32650 cylindrical case EQ-Lib-AA 100 pcs AA cylindrical case
