Electrostatic Precipitator and Hi-Voltage Supply for Particle Collection Via MIST- MSK-EPPC

Electrostatic Precipitator and Hi-Voltage Supply for Particle Collection Via MIST- MSK-EPPC

Electrostatic Precipitator and Hi-Voltage Supply for Particle Collection Via MIST- MSK-EPPC

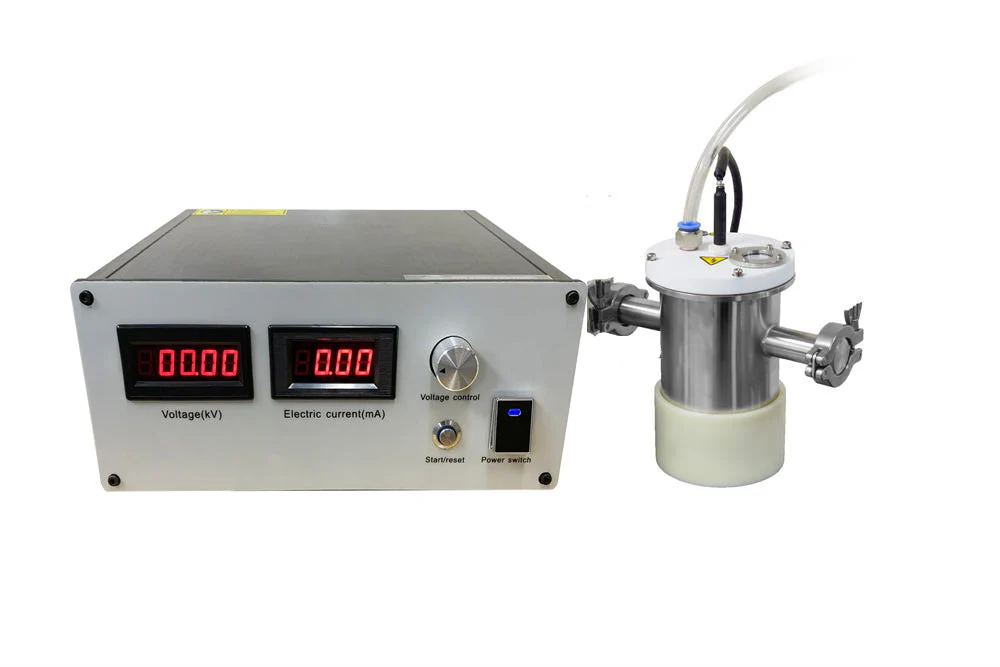

MSK-EPPC is a high voltage electrostatic precipitator (1.2 L, up to 30 kV) that can effectively collect nanoparticles from the carrier gas flow via CVD or Mist

SPECIFICATIONS

High Voltage Supply	Power Input: 24 VDC, 2 A Power Output: -30 kV to 0 V, 30 W max The NRTL/CSA certified power adaptor is included.(110 - 240V AC (50/60Hz) to 24VDC) Output voltage and current can be set on the front panel and read from the digital display Constant current/Constant Voltage mode of operation Built-in Arc protection circuit
Electrostatic Precipitator	Up to 30 kV and 1 mA. KF25 ports for material collection and vacuum generation. One nylon support provides the electrical insulation from the workbench. Height-adjustable powder collector (Stroke length: 60mm - 100mm)
Net Weight	15 KG
Overall Dimension	Connection Tank: 220mm OD with KF fittings x 180 mm height Power Supply/Control Unit: 300mm L x 270mm W x 120mm H
Warranty	One-year limited manufacturer warranty with lifetime support (consumable parts such as furnace liner, processing tubes, and O-rings are not covered by the warranty, please order replacements at related products below).
Compliance	CE Certified NRTL or CSA certification (UL61010) is available upon request at extra cost.
Application Notes	A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation. Click here to learn the installation of a gas regulator.
Operation Instructions

$2,763.60

Original: $7,896.00

-65%

Electrostatic Precipitator and Hi-Voltage Supply for Particle Collection Via MIST- MSK-EPPC—

$7,896.00

$2,763.60

Electrostatic Precipitator and Hi-Voltage Supply for Particle Collection Via MIST- MSK-EPPC

MSK-EPPC is a high voltage electrostatic precipitator (1.2 L, up to 30 kV) that can effectively collect nanoparticles from the carrier gas flow via CVD or Mist

SPECIFICATIONS

High Voltage Supply	Power Input: 24 VDC, 2 A Power Output: -30 kV to 0 V, 30 W max The NRTL/CSA certified power adaptor is included.(110 - 240V AC (50/60Hz) to 24VDC) Output voltage and current can be set on the front panel and read from the digital display Constant current/Constant Voltage mode of operation Built-in Arc protection circuit
Electrostatic Precipitator	Up to 30 kV and 1 mA. KF25 ports for material collection and vacuum generation. One nylon support provides the electrical insulation from the workbench. Height-adjustable powder collector (Stroke length: 60mm - 100mm)
Net Weight	15 KG
Overall Dimension	Connection Tank: 220mm OD with KF fittings x 180 mm height Power Supply/Control Unit: 300mm L x 270mm W x 120mm H
Warranty	One-year limited manufacturer warranty with lifetime support (consumable parts such as furnace liner, processing tubes, and O-rings are not covered by the warranty, please order replacements at related products below).
Compliance	CE Certified NRTL or CSA certification (UL61010) is available upon request at extra cost.
Application Notes	A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation. Click here to learn the installation of a gas regulator.
Operation Instructions

Product Information

Shipping & Returns

Description

MSK-EPPC is a high voltage electrostatic precipitator (1.2 L, up to 30 kV) that can effectively collect nanoparticles from the carrier gas flow via CVD or Mist

SPECIFICATIONS

High Voltage Supply	Power Input: 24 VDC, 2 A Power Output: -30 kV to 0 V, 30 W max The NRTL/CSA certified power adaptor is included.(110 - 240V AC (50/60Hz) to 24VDC) Output voltage and current can be set on the front panel and read from the digital display Constant current/Constant Voltage mode of operation Built-in Arc protection circuit
Electrostatic Precipitator	Up to 30 kV and 1 mA. KF25 ports for material collection and vacuum generation. One nylon support provides the electrical insulation from the workbench. Height-adjustable powder collector (Stroke length: 60mm - 100mm)
Net Weight	15 KG
Overall Dimension	Connection Tank: 220mm OD with KF fittings x 180 mm height Power Supply/Control Unit: 300mm L x 270mm W x 120mm H
Warranty	One-year limited manufacturer warranty with lifetime support (consumable parts such as furnace liner, processing tubes, and O-rings are not covered by the warranty, please order replacements at related products below).
Compliance	CE Certified NRTL or CSA certification (UL61010) is available upon request at extra cost.
Application Notes	A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation. Click here to learn the installation of a gas regulator.
Operation Instructions
