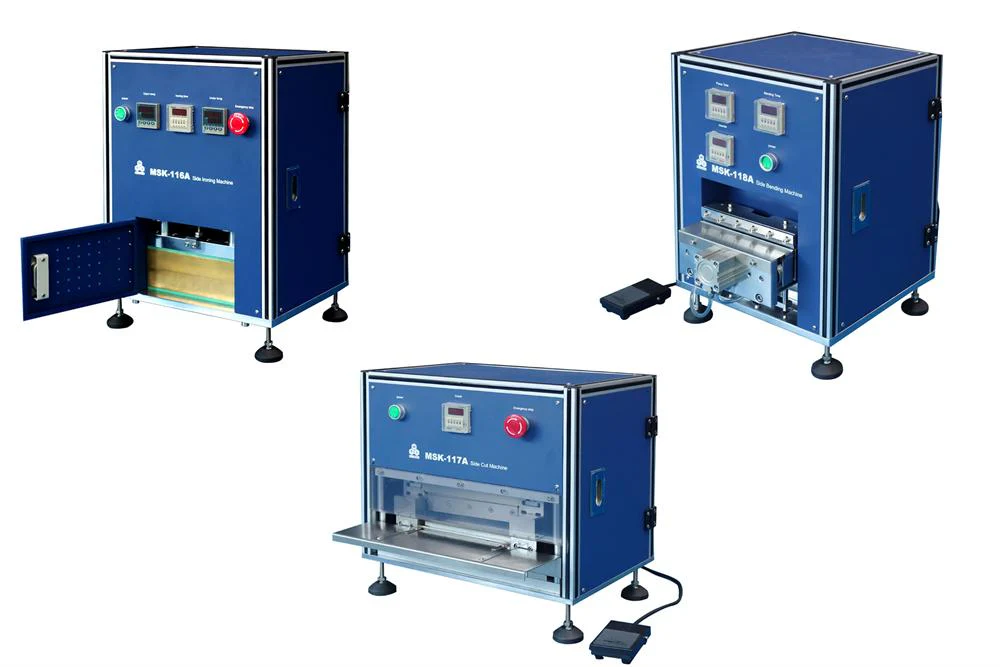

MSK-116A/117A/118A is a three-piece suite for trimming, folding and ironing the edge of the pouch cell case. They are widely used in the final steps of the pouch cell battery pilot-scale production line to ensure a smooth, neat, and tidy casing edge. Products are sold as a set or individually, please select the item in the options bar. (Promotion: Purchase the Three-piece Suite and save $300. )
SPECIFICATIONS:
Specifications/Model Number MSK-116A Edge Ironing Machine

  MSK-117A  Edge Trimming Machine

 MSK-118A Edge Folding Machine

Max. Power Consumption 600 W 20W 20W
Working Voltage 110 - 240VAC, single phase
Compress Air Pressure Requirement
  • 0.7 - 0.8 MPa (Each stroke will consume 0.09L air )
  • Note: Air Compressor is not included. please click here to order or order from your local hardware store
  • Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.
           pic1                pic2
Size Info (Edge Ironing, Trimming Width/Length, Folding Length) Maximum Edge Ironing Size: 200*40mm
   Trimming Width: 5~15mm adjustable
  Max. Trimming Length: 200mm
  High-quality tooling steel blades. 		Folding Width: 2-11mm
Max. Folding Length:200mm
Double Folding could be done manually by the MSK-116A ironing machine. Please watch the operational video from 1:18 to 1:26.
Temperature Info Ironing Temperature: 0-250 adjustable N/A N/A
Dwell Time 0-99 seconds adjustable N/A N/A
Stroke Frequency ~9 seconds per trial ~10 seconds per trial ~9 seconds per trial
How to use this Tool Suite



 When the pouch cell is fabricated, an uneven edging excess is expected. In order to make a neat and tidy cell with the smooth edge just like the commercial pouch batteries, please follow the steps in below:
  • Step 1. Use the MSK-117A trimming machine to cut off the excess area of the casing edge, only leave the size appropriate for the edge folding and ironing
  • Step 2. Use the MSK-116A ironing machine to smooth the edge prior to the folding
  • Step 3. Use the MSK-118A folding machine to partially fold the edge
  • Step 4. Use the MSK-116A ironing machine to smooth the folded section again and then iron the longer section against the sides of the case. Now a neat and tidy cell is finished.


Operation Demo Video
Product Dimensions 380*300*530mm 380*300*530mm 350*300*480mm
Warranty One Year limited warranty with lifetime support (Rusting and damage due to improper storage condition or maintenance are not covered by warranty)
Operation Manual & Video
Net Weight 50Kg 41Kg 37Kg
