200C Large Vacuum Oven w/ Vacuum Pump and 3 Zone Heating, 22x25x24", 215 L - DZF6210

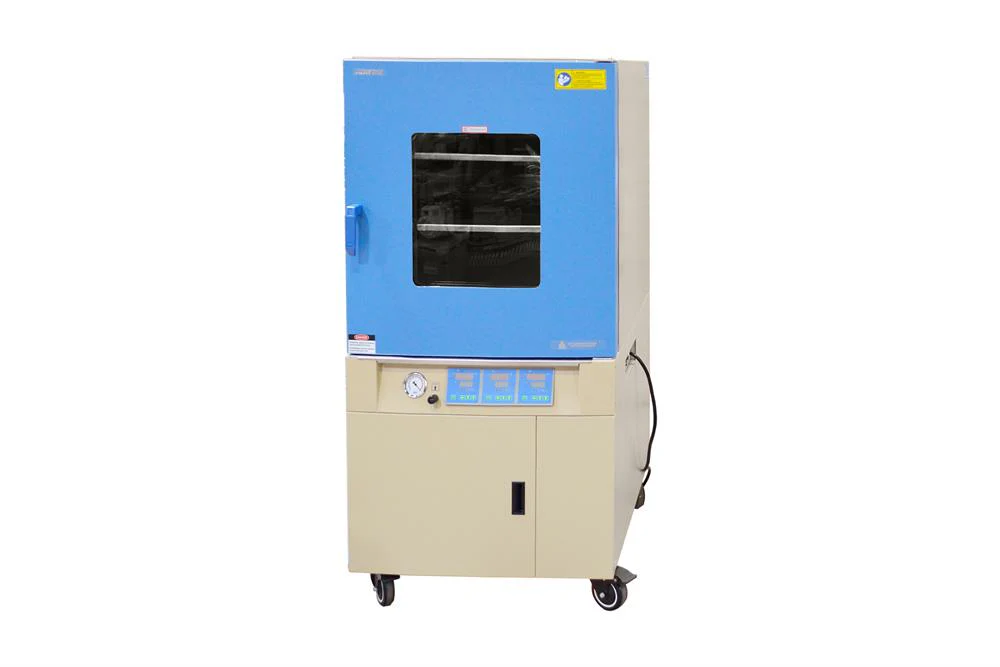

The floor-stand large vacuum oven DZF-6210 is a CE certified vacuum & atmosphere oven.

• The maximum working temperature up to 200ºC.
• Three heating zones are built inside the chamber and controlled by three programmable temperature controllers independently.
• One heavy-duty mechanical vacuum pump with the exhaust filter is included and pre-installed at the bottom of the oven.

SPECIFICATION

Voltage	Single Phase AC 208~240 V 50 Hz
Power	2050 W
Heating Temperature	Room Temperature + 10 ~ 200°C Maximum temperature 200°C Maximum temperature 250°C could be customized with extra cost

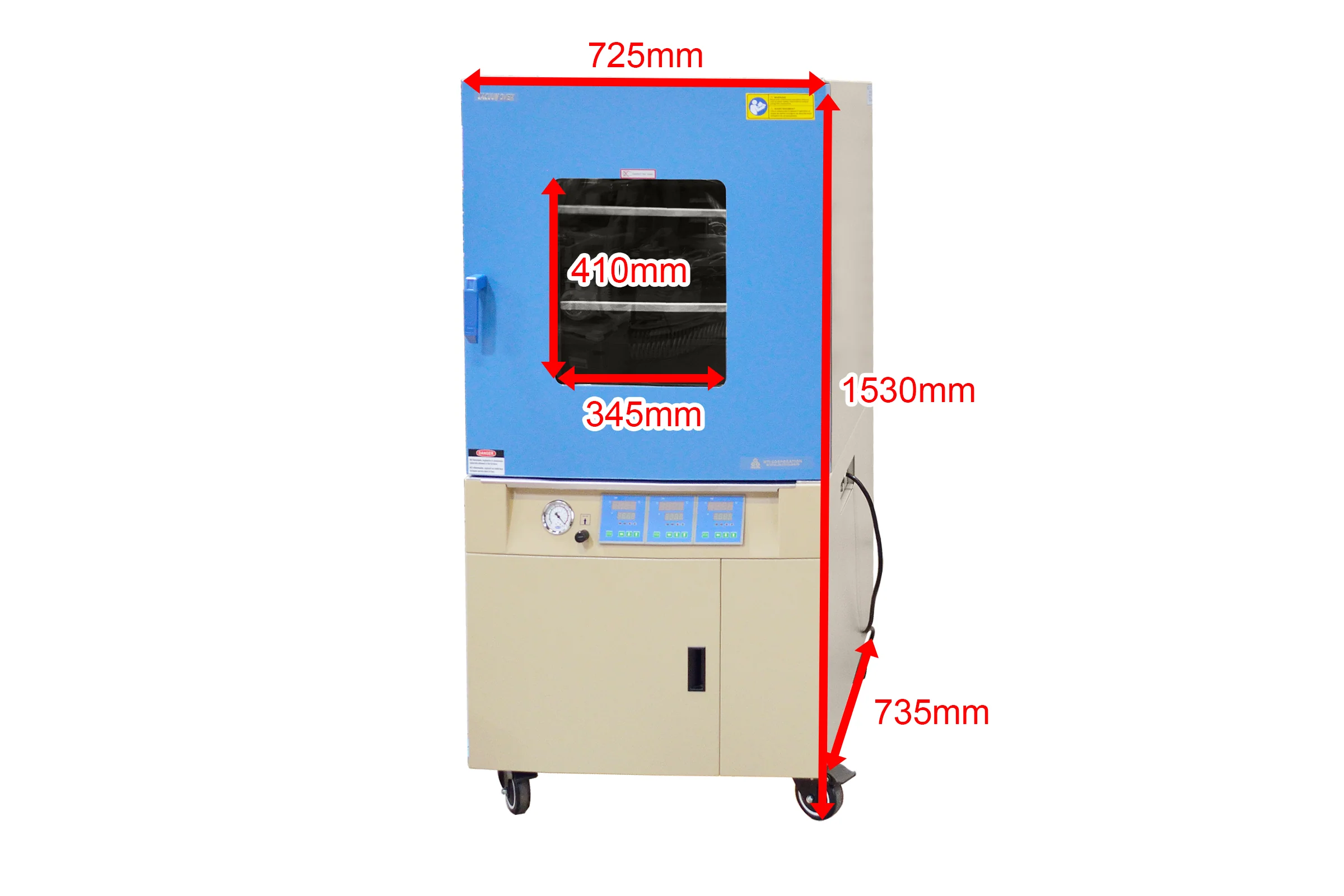

Chamber	Inner Chamber size: 560 mm x 640 mm x 600 mm ( 22"x 25" x 24") (W x H x D) Volume: 215 Liters (7.7 Cubic Feet) The chamber is made of the stainless steel 1Cr~18Ni9Ti and welded with bracing pieces. The mechanical vacuum gauge is included The silicone door gasket and positive latch door ensure the good sealing 3 stainless steel shelves are included to facilitate processing efficiency.
Number of Shelves	Three shelves
Vacuum Level	<133 pa (2 Torr)
Temperature Controller	+/-1°C accuracy and +/-5 °C uniformity under 100°C; 25" Hg built-in over-temperature protection to make operation safe
Vacuum Pump	The vacuum pump is built-in bottom case 5.5 CFM (156 L/min) 400W Built-in Filter to keep the pump from moisture and gasses.
Certification	CE Certified
Application Kits	For accurate temperature measurement, you may do calibration by using the temperature calibrating kit.  For more information on how to calibrate the oven temperature, please review How to calibrate the oven.
