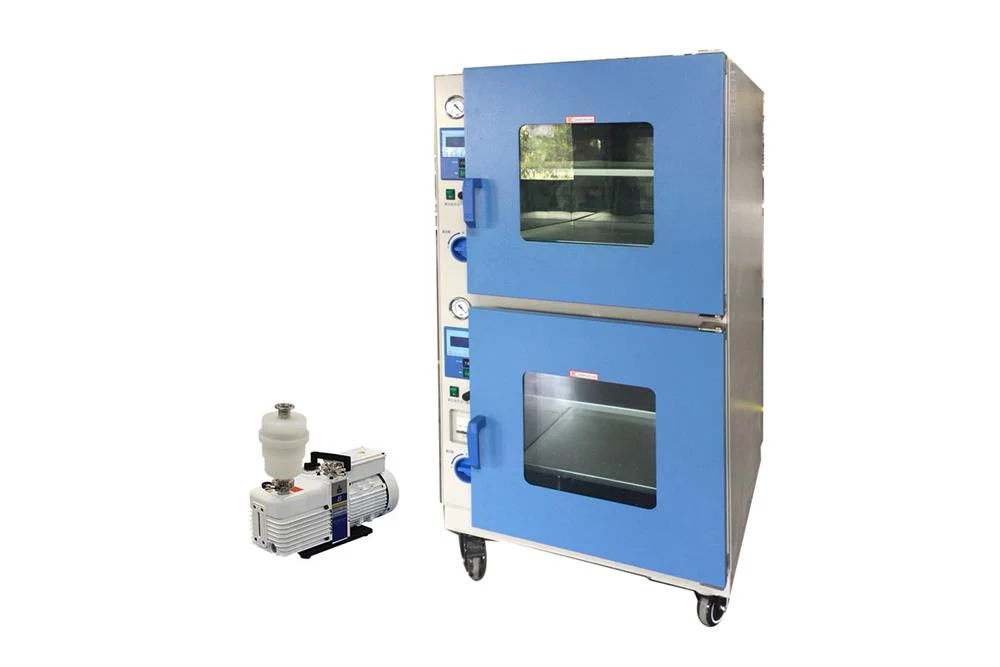

200°C Vacuum Oven w/ Vacuum Pump and Two Heating Chambers 18x18x18", 180 Liters - DZF6090II

The large vacuum oven DZF-6090-II is a CE certified and vacuum and atmosphere oven.
It is perfectly designed for the battery cathode and anode materials storage and baking during the battery fabrication.
The battery pilot line requires one or two large vacuum ovens DZF-6090-II.

• The maximum working temperature up to 200ºC
• Two individual heating chambers and controlled by two programmable temperature controllers independently
• Each heating chamber size: 18"x18"x18", 91 Liter, 3.4 CF
• One mechanical vacuum pump with the exhaust filter is included.

SPECIFICATION

Voltage	Single Phase AC 208 - 240 V 50/60 Hz
Power	2200 W
Heating Temperature	Room Temperature + 10 ~ 200°C ( +/- 1ºC stability) Maximum temperature 200°C Maximum temperature 250°C could be customized with extra cost
Chamber	Two Individual Chambers Inner Chamber size: 450 mm x 450 mm x 450 mm ( 18"x 18" x 18") (W x H x D); 90 Liters (3.4 Cubic Feet) Total Volume of two chambers: 180 Liters (6.8 Cubic Feet) The chamber is made of the stainless steel 1Cr~18Ni9Ti and welded with bracing pieces The mechanical vacuum gauge is included The silicone door gasket and positive latch door ensure the good sealing
Vacuum Level	133 pa (1 Torr)
Temperature Controller	+/-1°C stability under 100°C; 25" Hg built-in over-temperature protection to make the operation safe
Vacuum Pump	The vacuum pump is included - EQ-FYP-Pump 5.5 CFM (156 L/min) 400W One (1) Exhaust Filter is included.
Compliance	CE Certified NRTL certification is not available
Application Kits	For accurate temperature measurement, you may do calibration by using the temperature calibrating kit.  For more information on how to calibrate the oven temperature, please review How to calibrate the oven. After heating the oven to high temperature, the chamber will be dulled and discolored. They are normal phenomena and will not affect the performance of the oven. All sample inside the chamber should not have any contact with the chamber wall.
