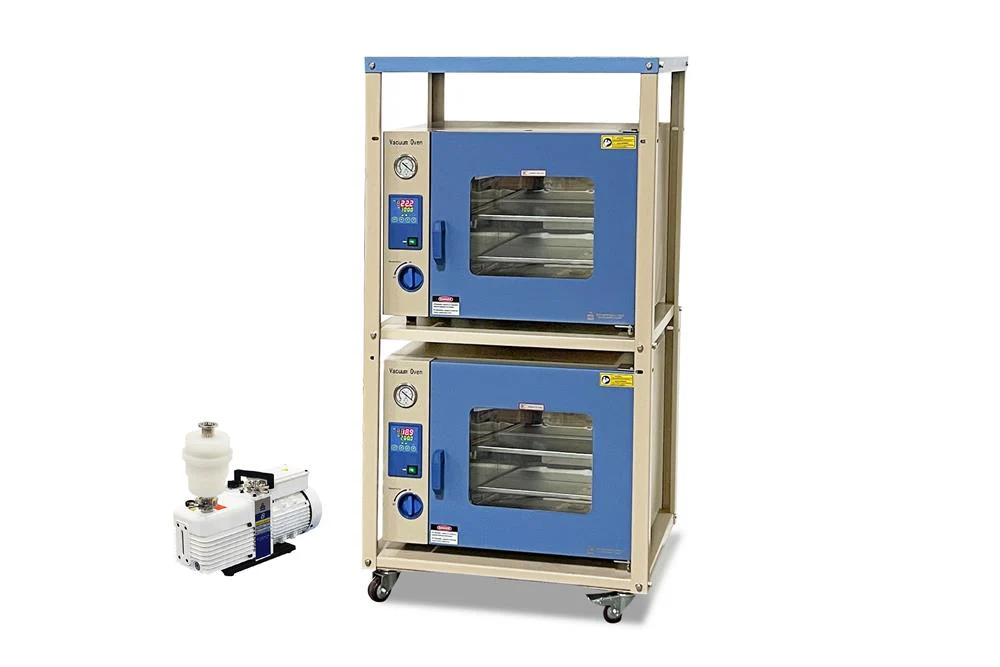

NRTL Certified 200C Dual Vacuum Oven (Two 16 x 14 x 15", 106L) w/ One Vacuum Pump - DZF-6050-II

• The maximum working temperature is up to 200ºC
• Two individual heating chambers and controlled by two temperature controllers independently
• Each heating chamber size: 16x14x15", 53L, a total of 106L for two chambers
• Two chambers can be vacuumed by one mechanical vacuum pump
• One mechanical vacuum pump with the exhaust filter is included in the standard package

• Single Phase AC 110 -120VAC ( two power outlets are required)
• 50/60 Hz
• 2800 W

• Room Temperature : RT+ 10 ~ 200°C
• Maximum temperature 200°C
• +/- 1ºC accuracy

• Two Individual Chambers
• Inner Chamber size: 415 x 345 x 373 mm (16 x14x15) (W x H x D); 53 Liter/each chamber
• The chamber is made of the stainless steel 1Cr~18Ni9Ti and welded with bracing pieces
• The mechanical vacuum gauge is included
• The silicone door gasket and positive latch door ensure the good sealing

• One two-layer mobile cart is included to place two vacuum ovens together

• 133 pa (10-2 Torr)

• +/-1°C accuracy and +/-5 °C uniformity under 100°C; 25" Hg
• built-in over-temperature protection to make operation safe

• The vacuum pump is included - FYP-Pump
• 240 L/min)
• 750W
• One exhaust filter is included

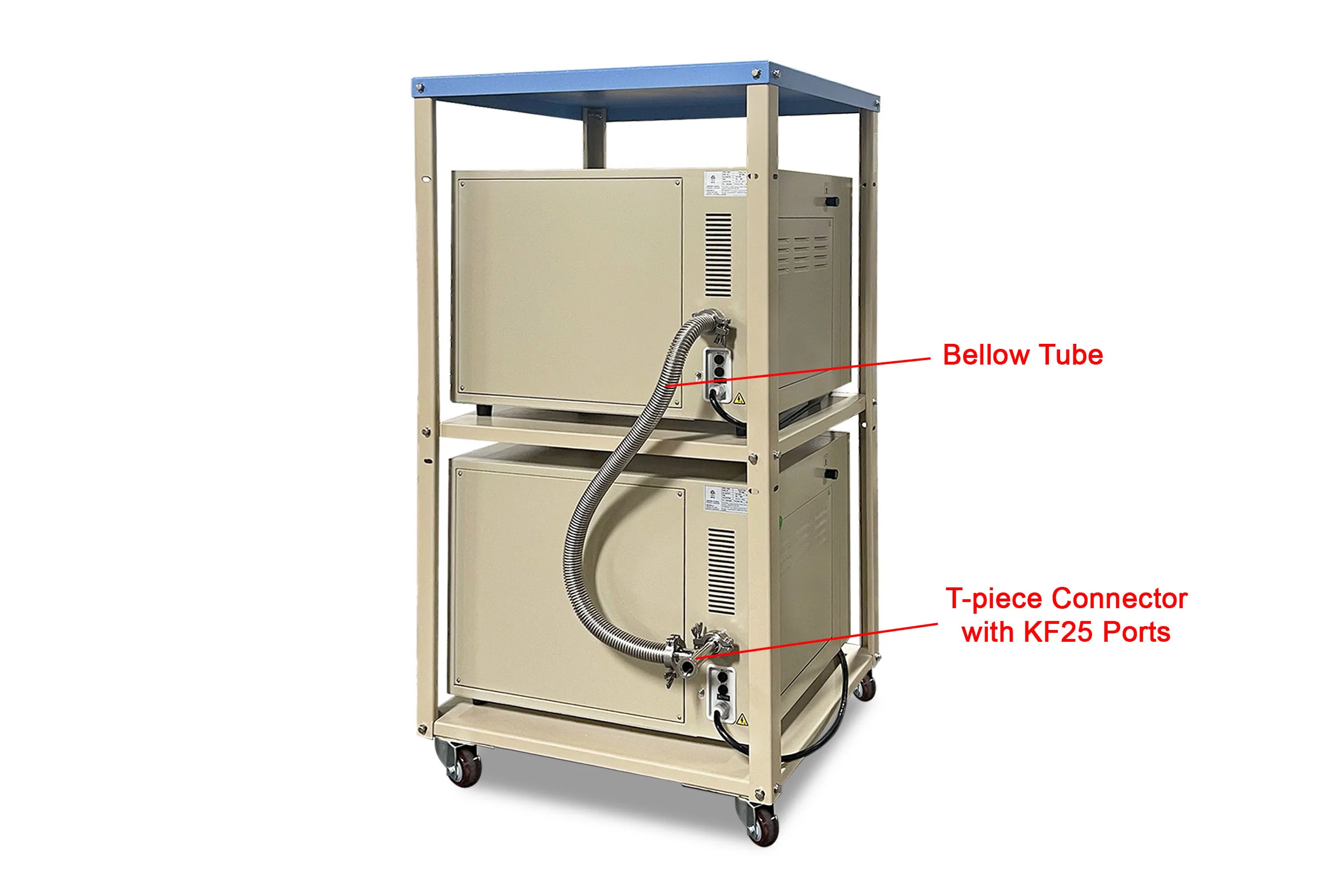

• SS bellows with KF 25 port is included to connect two chambers to one pump

• CE Certified
• NRTL certified for 110V only

Application Kits

• For accurate temperature measurement, you may do calibration by using the temperature calibrating kit.
• For more information on how to calibrate the oven temperature, please review How to calibrate the oven.
• After heating the oven to a high temperature, the chamber will be dulled and discolored.
• They are normal phenomena and will not affect the performance of the oven.
• All samples inside the chamber should not have any contact with the chamber wall.
