10-24 mm Diameter (I.D.) Dry Pellet Pressing Die w/ Protrusion - Die-24D-10

Die-24D-10 is a customized design stamping/pressing die with plunger of Φ24 mm I.D., and featuring a raised interface of Φ10 x 1 mm. This die is ready for you to make a Φ24 mm sample pellet with a Φ10 x 1 mm indentation pellet into the Φ24 mm diameter coin.

SPECIFICATIONS:

Model	Die-24D-10
Die Sleeve Height	2" (50 mm)
Outer Diameter	2.48" (63 mm)
Inside Diameter	24 mm
Protrusion size	Φ10 x 1 mm
Maximum Load	930 MPa
Max. Working Temperature	RT - 250°C

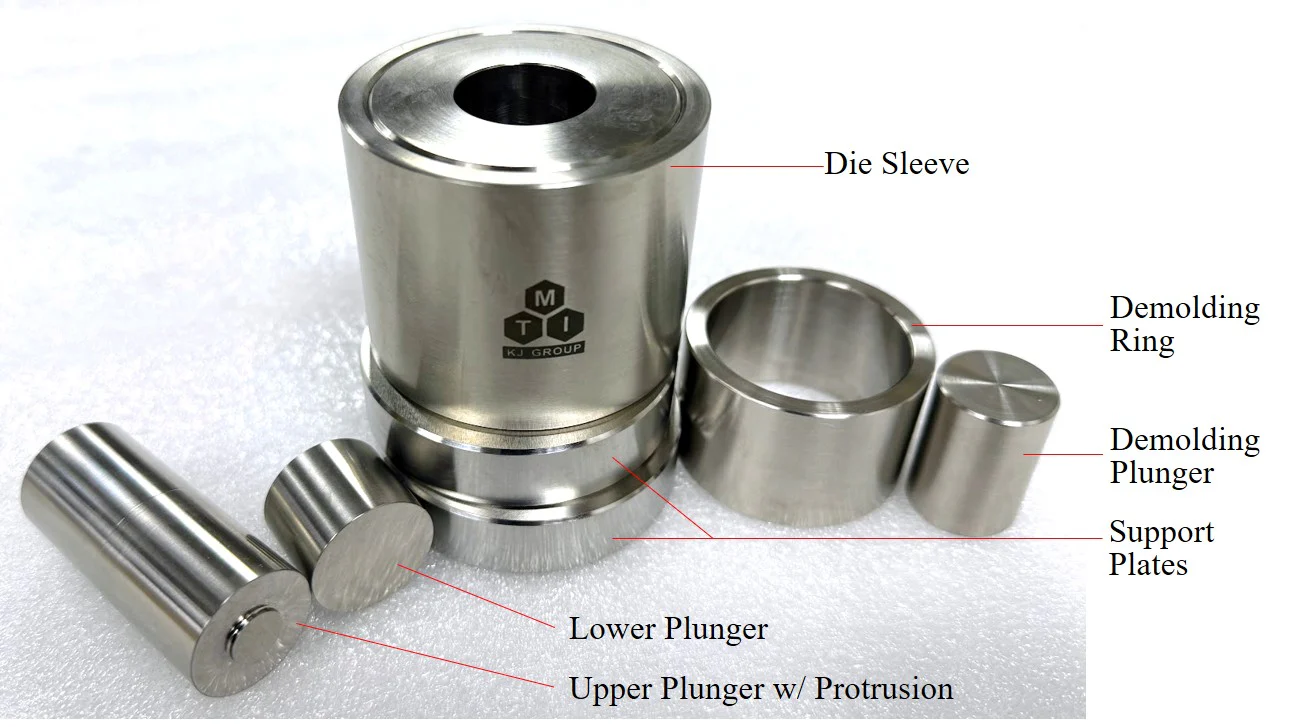

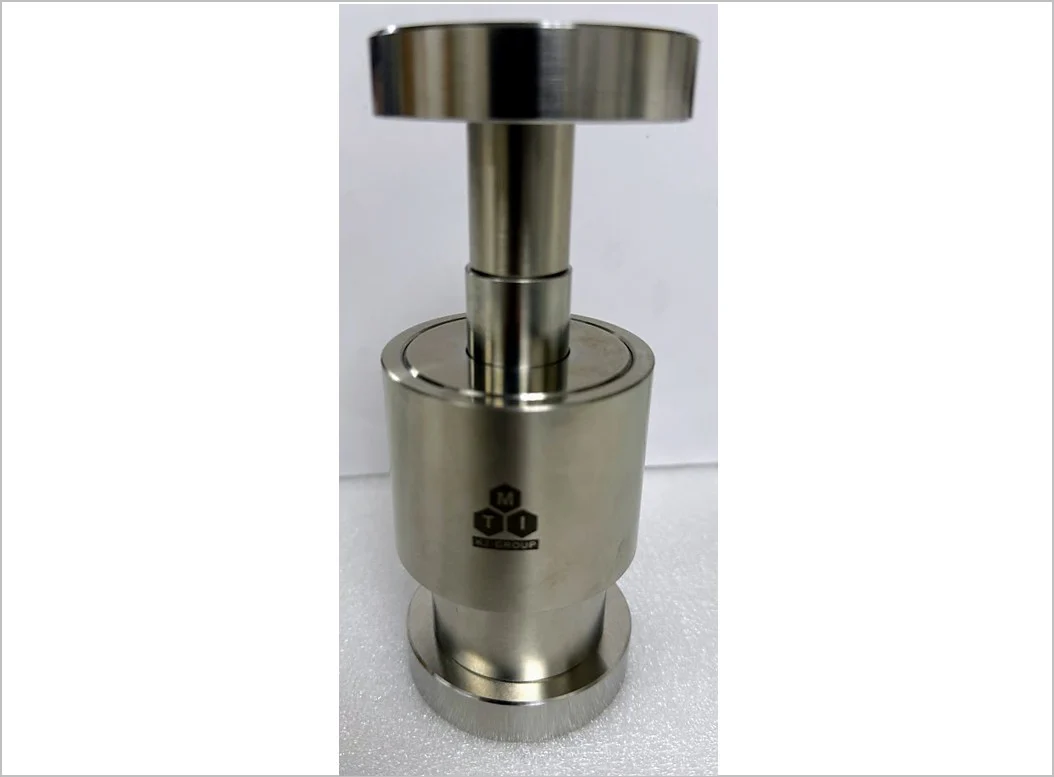

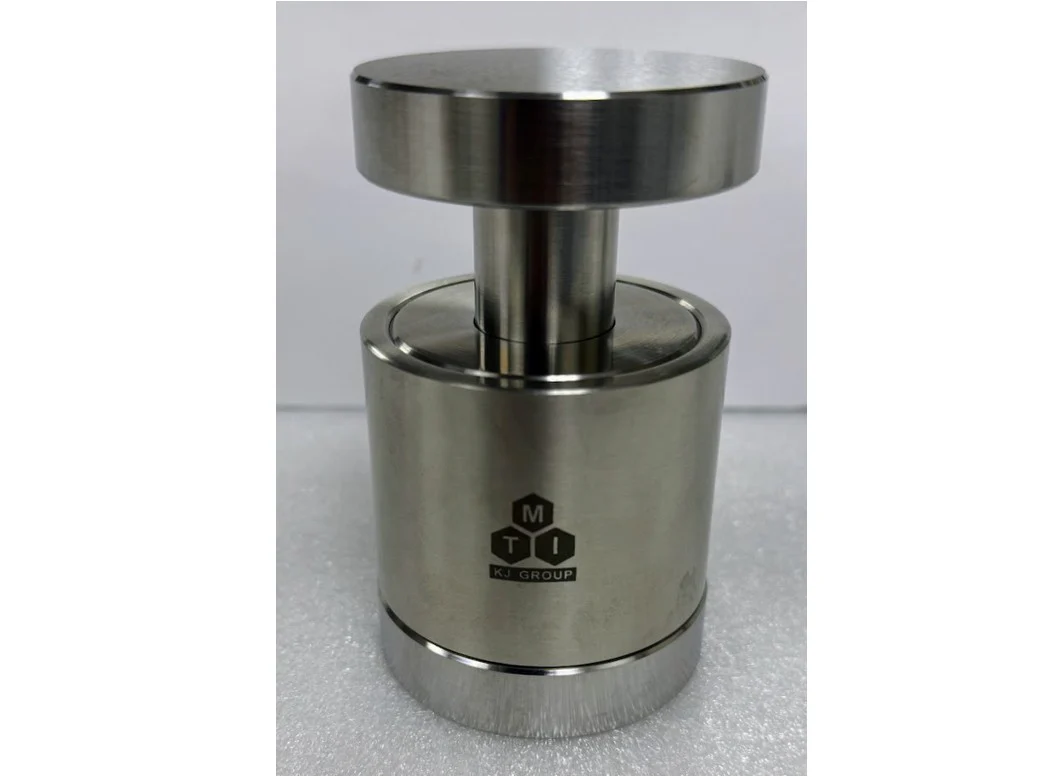

The whole set pressing die includes	One Φ24 mm I.D. die is made of hardened steel and highly polished with hardness HRC 60 - 62 Ra 0.08 μm highly polished steel One die sleeve Two plungers (pushing rods, 12 mm long and 70 mm long) are highly polished and perfectly fitted into die. Two steel support plates ( You may use CIP to press again to increase density by about 5 - 10%.) One steel cylinder for demolding the sample.

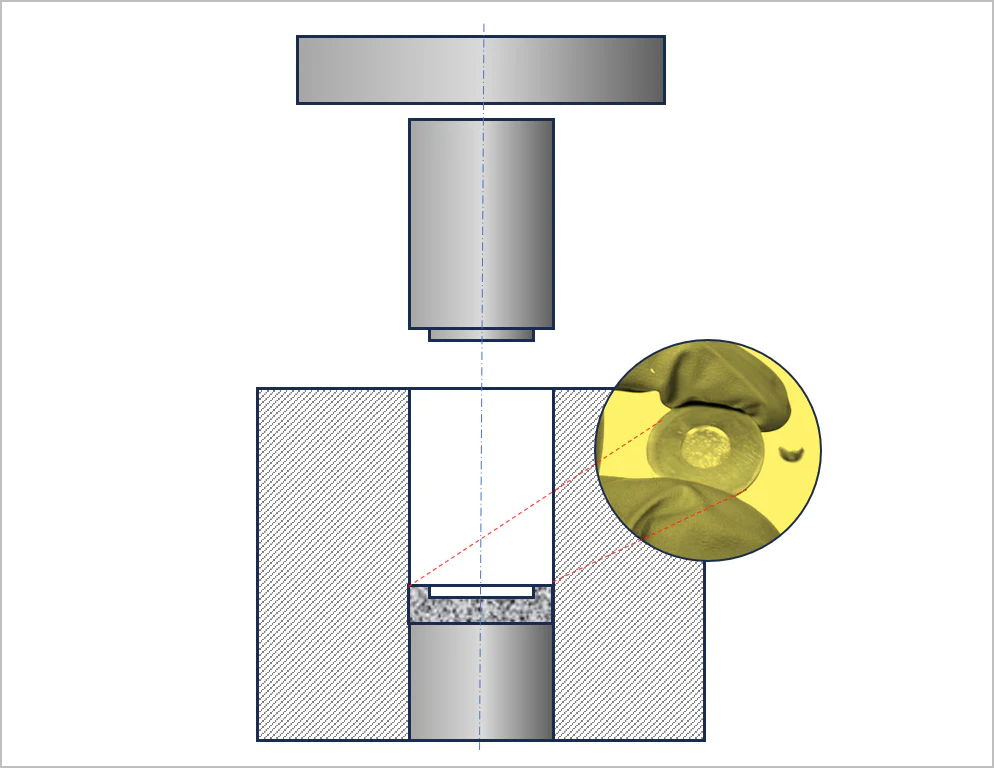

Pressing die installation schematic
Cautions	Please must always wear protective goggles during operation !!! The pressing die is not good for using pressing powder with a particle size < 30 microns. Small particles may slip into the gap between the pushing rod and steel sleeve and cause damage to the sleeve during compression. Ball mill and sieve the powder and apply only the 32~75 microns powder to the pressing die to avoid damage. Please consider using the 3'' Dia. Sieve Set No.200&450 Mesh to separate the 32~75 microns particles from the powder clumps. Please clean the mold via ethanol after the completion of each experiment. For pressing nanosize powder, better use the CIP method Please use alcohol to clean the pressing die every time before use and store it in a dry place with antirust oil after the operation to avoid rusting on the surface, because all pressing dies are made by high-stretched carbon steel for achieving high hardness to meet essential requirements of making ceramic or metal samples. Otherwise, the pressing surface could probably get scratched. To avoid damaging the die plungers and sleeve, we strongly recommend you use the professional laboratory hydraulic pressers which ensure the most even pressing interface and uniform pressure force. For pressing sticky metal powders such as Al, Mg, and Zn, it is necessary to use dry or alcohol-based tool lubricant to lubricate the die and sleeve set to reduce friction during the compression. Do not press flammable, explosive materials.
Application Notes	You may consider using BNMR for easy mold release. Please click the picture below to order.
Steps to make a sample pellet	Mixing and grinding chemical powder by agate mortar or Ball Mill Calcine mixed the powder in a high temp furnace under a suitable temperature Crushing and Grinding calcined powder again by mortar or ball mill Put calcined powder into the die Pressing sample by a pressing machine under suitable pressure Take out pellet sample from die Sintering the pellet under a suitable temperature Then, a new material sample is formed!
