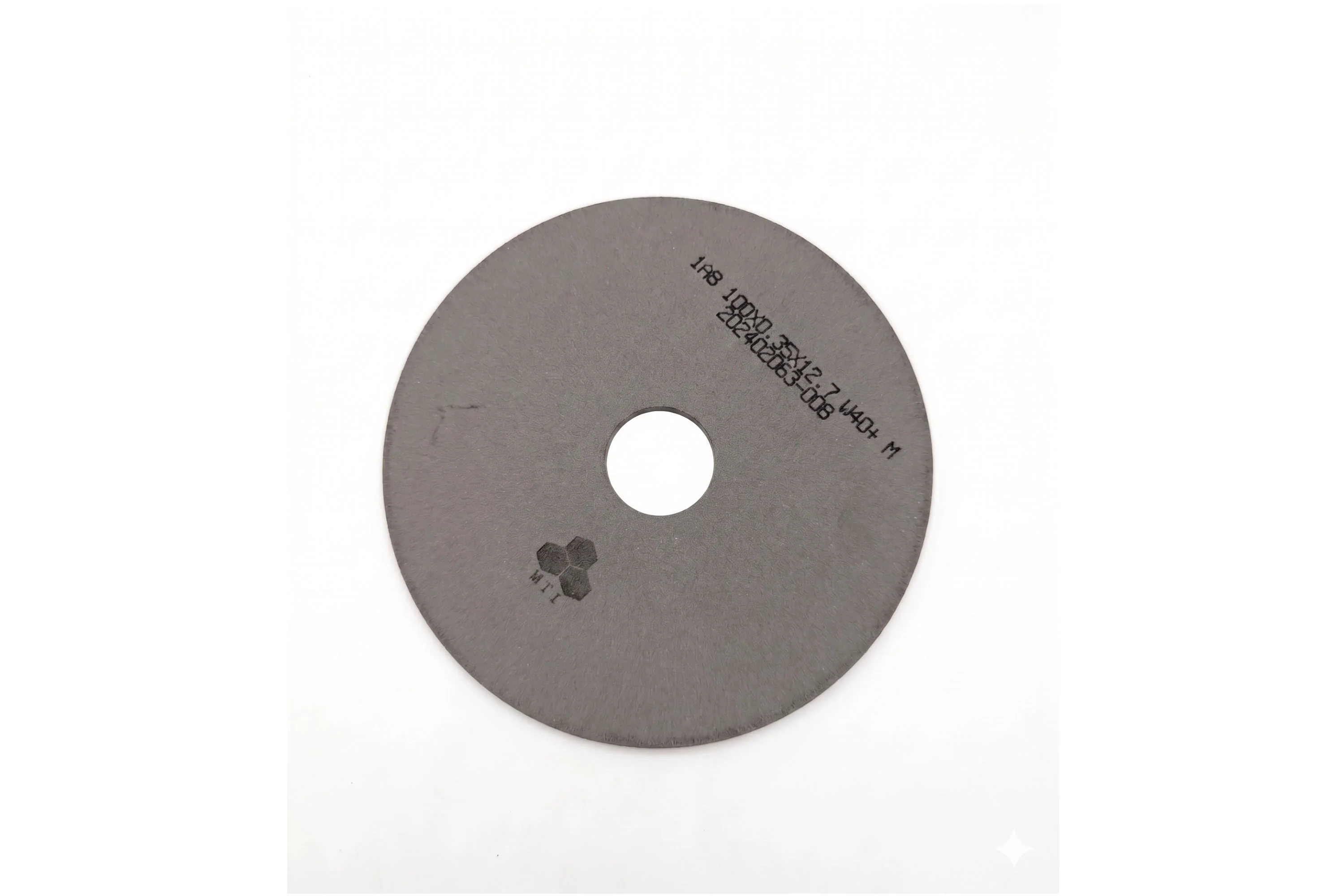

4"Dia x 0.014"(0.35 mm) thick x 0.5" Arbor Sintered Full Diamond Cutting Blades (Fine grade 40 micron) - DF0403
4"Dia x 0.014"(0.35 mm) thick x 0.5" Arbor Sintered Full Diamond Cutting Blades (Fine grade 40 micron) - DF0403
MTI supplies high-quality sintered diamond blades for precision cutting or dicing of various oxide crystals. MTI diamond blade is hot pressed and sintered by full diamond powder which has a five times longer service life than that of ordinary edge sintered diamond blades. The full diamond sintered blade is suitable for low-speed cutting ( under 1000 RPM) of oxide single crystals or any brittle crystals, especially for cutting plastics, polymer components, metals, alloys, and bones. It is perfect to match MTI 150 low-speed saw or other brands of low-speed saw.
SPECIFICATIONS:
| Part Number | DF-0403 |
| Blade Diameter | 100 mm +/ -0.5 mm |
| Blade Thickness | 0.35 mm +/ -0.005mm |
| Arbor | 0.5" |
| Diamond Particles Grit | 280 mesh ( 40 microns) |
| Note |
If you try to cut non-ferrous metal or alloy, please choose coarse (63 microns ) diamond blade You need dressing the blade from time to time to keep blade sharp. Please click the link below to order
|
Original: $199.00
-65%$199.00
$69.654"Dia x 0.014"(0.35 mm) thick x 0.5" Arbor Sintered Full Diamond Cutting Blades (Fine grade 40 micron) - DF0403
MTI supplies high-quality sintered diamond blades for precision cutting or dicing of various oxide crystals. MTI diamond blade is hot pressed and sintered by full diamond powder which has a five times longer service life than that of ordinary edge sintered diamond blades. The full diamond sintered blade is suitable for low-speed cutting ( under 1000 RPM) of oxide single crystals or any brittle crystals, especially for cutting plastics, polymer components, metals, alloys, and bones. It is perfect to match MTI 150 low-speed saw or other brands of low-speed saw.
SPECIFICATIONS:
| Part Number | DF-0403 |
| Blade Diameter | 100 mm +/ -0.5 mm |
| Blade Thickness | 0.35 mm +/ -0.005mm |
| Arbor | 0.5" |
| Diamond Particles Grit | 280 mesh ( 40 microns) |
| Note |
If you try to cut non-ferrous metal or alloy, please choose coarse (63 microns ) diamond blade You need dressing the blade from time to time to keep blade sharp. Please click the link below to order
|
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
MTI supplies high-quality sintered diamond blades for precision cutting or dicing of various oxide crystals. MTI diamond blade is hot pressed and sintered by full diamond powder which has a five times longer service life than that of ordinary edge sintered diamond blades. The full diamond sintered blade is suitable for low-speed cutting ( under 1000 RPM) of oxide single crystals or any brittle crystals, especially for cutting plastics, polymer components, metals, alloys, and bones. It is perfect to match MTI 150 low-speed saw or other brands of low-speed saw.
SPECIFICATIONS:
| Part Number | DF-0403 |
| Blade Diameter | 100 mm +/ -0.5 mm |
| Blade Thickness | 0.35 mm +/ -0.005mm |
| Arbor | 0.5" |
| Diamond Particles Grit | 280 mesh ( 40 microns) |
| Note |
If you try to cut non-ferrous metal or alloy, please choose coarse (63 microns ) diamond blade You need dressing the blade from time to time to keep blade sharp. Please click the link below to order
|
