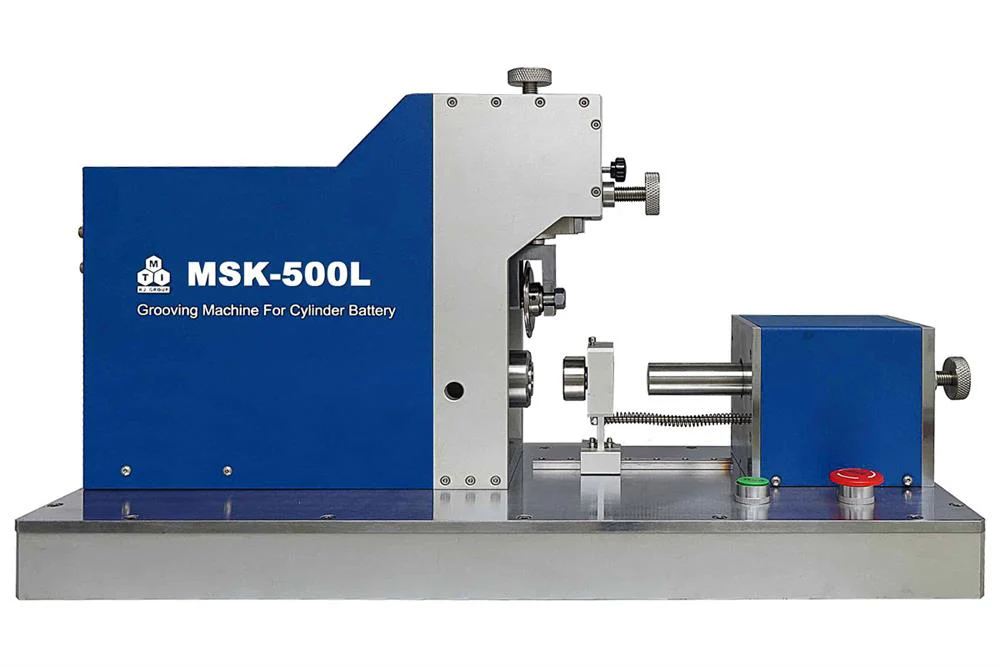

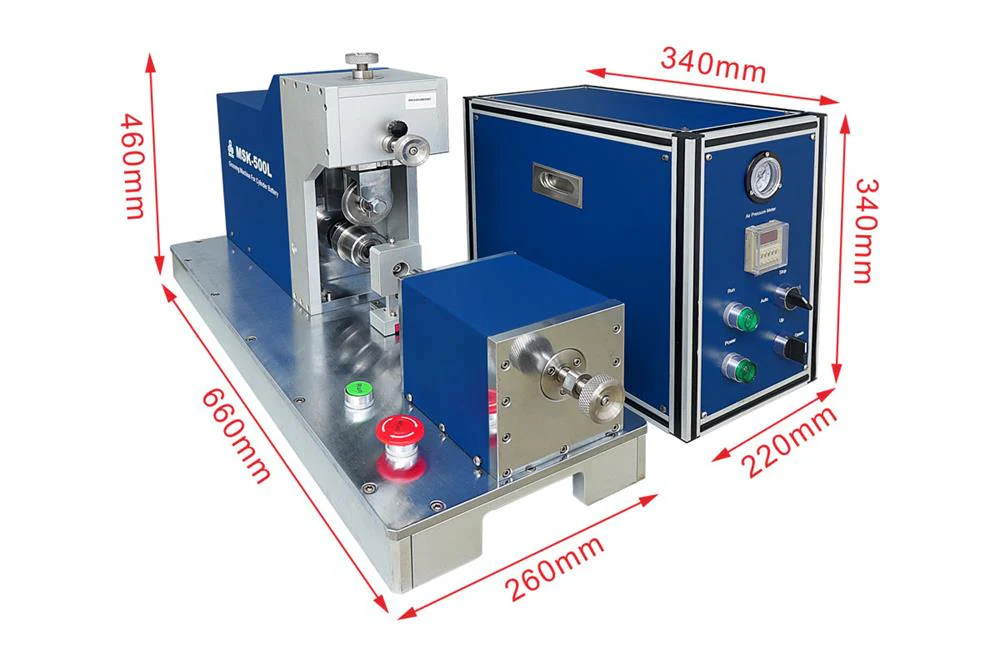

Desk-top Semi-Auto Grooving Machine for 4680 - 46120 or 50100 Cylinder Cell Only - MSK-500-L

MSK-500-L is a semi-auto grooving machine specifically designed for grooving 50100 cylindrical cases. It also can be modified into a grooving machine for 4680 - 46120 cylindrical cells.

SPECIFICATIONS:

Working Voltage	208 - 240 V AC, 50/60Hz Single Phase AC 110V version is available via a transformer
Max. Power Consumption	200W
Air Pressure	>0.5 MPa is required (Air Compressor is not included, please click here to order) Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.   pic1  pic2
Casing Compatibility	Cylinder Cell 50100 Cylinder Cell 4680 - 46100 Cylinder Cell 46100 - 46120 Grooving die sets required for different types of cylinder cells
Grooving Dimensions	Depth: 0.8 - 2.0 mm Width: Standard 1.2 mm 0.9 - 1.5 mm
Grooving Accuracy	+/- 0.1 mm
Grooving Blade Durability	>100,000 times
Productivity	400 grooving cylindrical cells per hour
Compliance	CE Certified Patent 201120464651.8 for the Cylindrical Cell Grooving Machine MSK-500-L since July 2012.
Application Notes	Customized die for other cylindrical cell types is available upon request It is necessary to seal the cap of the cylindrical case by using the MSK-510 sealing machine after grooving the opening end Each type of cylinder cell can only be grooved specifically by certain models of this equipment. Please select the type of cylinder cell in the Product Options dropbox to check the model number and price for the corresponding grooving die of each cylinder cell type Please check the chart below to order the cylindrical cases Crimping Die for Description (click to view details) Case Dimensions EQ-Lib-50100 5 pcs 50100 cylindrical case
