Laminate Press with Digital Pressure Controller up to 6KN, 100W x 350L mm Plates - YLJ6T-C

Laminate Press with Digital Pressure Controller up to 6KN, 100W x 350L mm Plates - YLJ6T-C

Laminate Press with Digital Pressure Controller up to 6KN, 100W x 350L mm Plates - YLJ6T-C

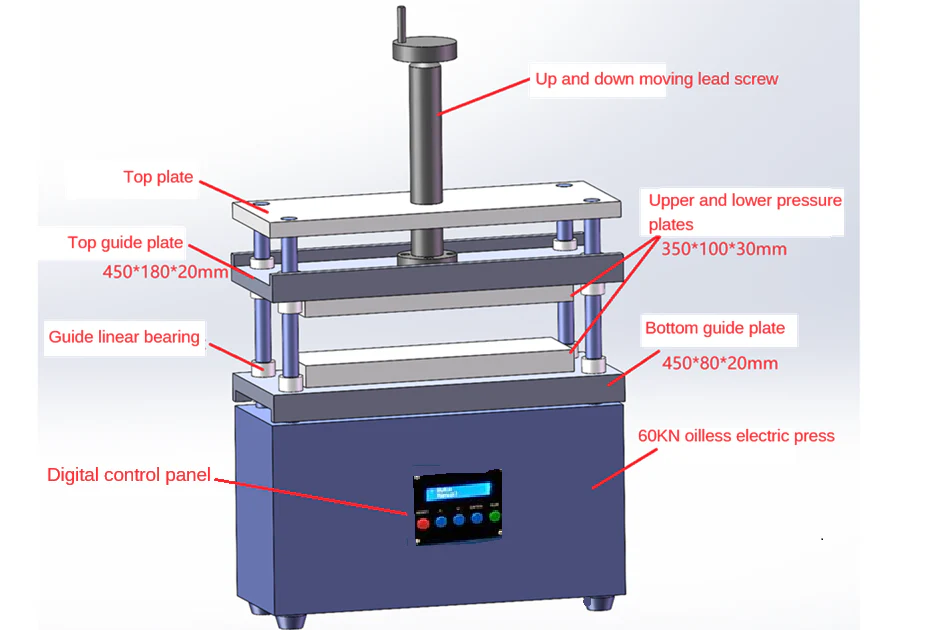

YLJ6T-C is a laminate press with pressing plates of 350 mm L x 100mm W up to max. 60KN force。 A DC motor and digital controller drive the press with +/- 3N accuracy. It is designed to compress a pouch cell with a gasbag under constant pressure or a constant gap during formation. Heatable pressing plate is available up to 200 °C.

SPECIFICATIONS:

Power	24V DC motor NRTL & CSA certified 110 - 240V AC to 24V DC 120W power adapter for universal use
Pressure	A built-in load cell with a digital display for pressure measurement and control Digital control panel for programmable pressure and dwell time Pressure adjustment range: 1 - 60KN Pressure accuracy: +/- 30 N Time setting: 1 - 999 minutes Optional: 8- 20 metric ton press is available upon request at extra cost
PC Control Software	The PC port is built in for possible remote operation to the automatic data log Software functionalities, which are available upon request at an extra cost Pressure Monitoring. Data Logging/Exporting to Excel. Set up the pressure and pressing time. Start and stop the press. Two operation modes are included in the operation software. e.g. constant pressure and constant volume
Structure	Heavy-Duty Steel Platform

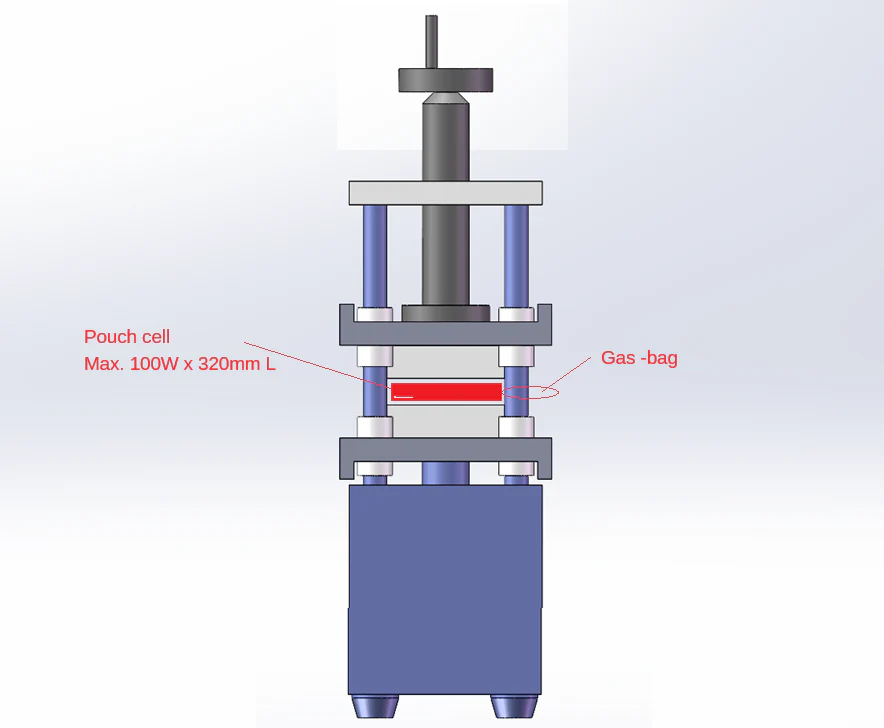

Working space	Stroke: 35 mm Dimension: W100m x L 350 mm If you press a pouch cell, a gasbag can be placed in either side of the plates
Compliance	CE approval NRTL or CSA certification is available upon request at an extra cost. Note: NRTL certification is not necessary due to the 24VDC safe device
Product dimension & Weight	Size: L 460 x W180 x H680mm Weight: ~ 350 Kg
Operation environment	Suggest operating the machine in an air-conditioned room Room temperature 22 oC +/- 2 oC for the best accuracy （ -20C- 40oC workable ） Humidity 50% +/- 5%
Optional	Heatable plate with digital temperature controller up to 200 °C is available upon request Customized plate size and pressure are available upon request

Select Software and Laptop

From $19,998.00

Laminate Press with Digital Pressure Controller up to 6KN, 100W x 350L mm Plates - YLJ6T-C—

$19,998.00
