Converting Waste Plastic to Flammable Gases: Hi-Pressure Fluidized Bed Pyrolysis Reactor - OTF-1200XII-FB

Converting Waste Plastic to Flammable Gases: Hi-Pressure Fluidized Bed Pyrolysis Reactor - OTF-1200XII-FB

Converting Waste Plastic to Flammable Gases: Hi-Pressure Fluidized Bed Pyrolysis Reactor - OTF-1200XII-FB

OTF-1200X-FB is a Hi-Pressure Fluidized Bed Pyrolysis Reactor for the research on converting waste plastic into flammable gas.

SPECIFICATIONS:

Power	2500W
Voltage	AC 220V Single Phase, 50/60 Hz
Max. Temperature	1100^oC
Continuous Temperature	1000^oC
Max. Heating Rate	<= 20 ^oC /min
Tube Size and Materials	Ni-Based Super-alloy

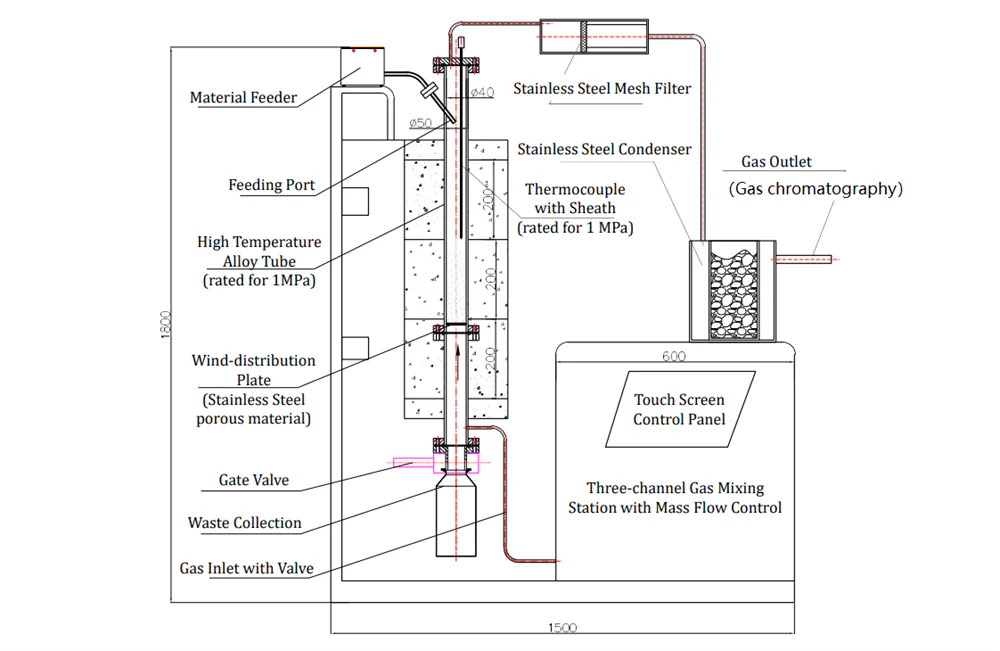

Sealing Flanges	Bottom flange: Regular designed 1'' bottom flange with 1/4'' tube fitting for introducing primary gas Top Flange: Special designed 1'' top flange with backstreaming secondary (precursor) gas inlet and exhaust, please click the picture to the left for details
Options	Powder feeder Gas mixing and delivery Cyclone
Heating Zone Length	200mm (single zone)
Temperature Controller	30 programmable segments for precise control of heating rate, cooling rate, and dwell time. Built-in PID Auto-Tune function with overheating & broken thermocouple protection. Over-temperature protection and alarm allow for operation without attendant(s). +/- 1 ºC temperature accuracy. Eurotherm 3000 precision temperature controller is optional with +/- 0.1ºC accuracy
Heating Elements	Fe-Cr-Al Alloy doped by Mo
Shipping Weight & Dimensions	620 lbs, 52"x41"x72" 210 lbs, 47"x40"x42" 425 lbs, 47"x40"x62"
Compliance	CE Certified NRTL or CSA certification is available at an extra cost

$27,995.10

Original: $79,986.00

-65%

Converting Waste Plastic to Flammable Gases: Hi-Pressure Fluidized Bed Pyrolysis Reactor - OTF-1200XII-FB—

$79,986.00

$27,995.10

Converting Waste Plastic to Flammable Gases: Hi-Pressure Fluidized Bed Pyrolysis Reactor - OTF-1200XII-FB

OTF-1200X-FB is a Hi-Pressure Fluidized Bed Pyrolysis Reactor for the research on converting waste plastic into flammable gas.

SPECIFICATIONS:

Power	2500W
Voltage	AC 220V Single Phase, 50/60 Hz
Max. Temperature	1100^oC
Continuous Temperature	1000^oC
Max. Heating Rate	<= 20 ^oC /min
Tube Size and Materials	Ni-Based Super-alloy
Sealing Flanges	Bottom flange: Regular designed 1'' bottom flange with 1/4'' tube fitting for introducing primary gas Top Flange: Special designed 1'' top flange with backstreaming secondary (precursor) gas inlet and exhaust, please click the picture to the left for details
Options	Powder feeder Gas mixing and delivery Cyclone
Heating Zone Length	200mm (single zone)
Temperature Controller	30 programmable segments for precise control of heating rate, cooling rate, and dwell time. Built-in PID Auto-Tune function with overheating & broken thermocouple protection. Over-temperature protection and alarm allow for operation without attendant(s). +/- 1 ºC temperature accuracy. Eurotherm 3000 precision temperature controller is optional with +/- 0.1ºC accuracy
Heating Elements	Fe-Cr-Al Alloy doped by Mo
Shipping Weight & Dimensions	620 lbs, 52"x41"x72" 210 lbs, 47"x40"x42" 425 lbs, 47"x40"x62"
Compliance	CE Certified NRTL or CSA certification is available at an extra cost

Product Information

Shipping & Returns

Description

OTF-1200X-FB is a Hi-Pressure Fluidized Bed Pyrolysis Reactor for the research on converting waste plastic into flammable gas.

SPECIFICATIONS:

Power	2500W
Voltage	AC 220V Single Phase, 50/60 Hz
Max. Temperature	1100^oC
Continuous Temperature	1000^oC
Max. Heating Rate	<= 20 ^oC /min
Tube Size and Materials	Ni-Based Super-alloy
Sealing Flanges	Bottom flange: Regular designed 1'' bottom flange with 1/4'' tube fitting for introducing primary gas Top Flange: Special designed 1'' top flange with backstreaming secondary (precursor) gas inlet and exhaust, please click the picture to the left for details
Options	Powder feeder Gas mixing and delivery Cyclone
Heating Zone Length	200mm (single zone)
Temperature Controller	30 programmable segments for precise control of heating rate, cooling rate, and dwell time. Built-in PID Auto-Tune function with overheating & broken thermocouple protection. Over-temperature protection and alarm allow for operation without attendant(s). +/- 1 ºC temperature accuracy. Eurotherm 3000 precision temperature controller is optional with +/- 0.1ºC accuracy
Heating Elements	Fe-Cr-Al Alloy doped by Mo
Shipping Weight & Dimensions	620 lbs, 52"x41"x72" 210 lbs, 47"x40"x42" 425 lbs, 47"x40"x62"
Compliance	CE Certified NRTL or CSA certification is available at an extra cost
