Co-axial Nozzle Set with Dual Inlets for Eletrospinning - ES1U-CNoz
HomeStore

Co-axial Nozzle Set with Dual Inlets for Eletrospinning - ES1U-CNoz

Co-axial Nozzle Set with Dual Inlets for Eletrospinning - ES1U-CNoz

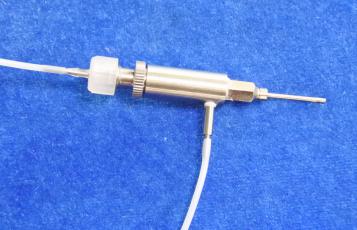

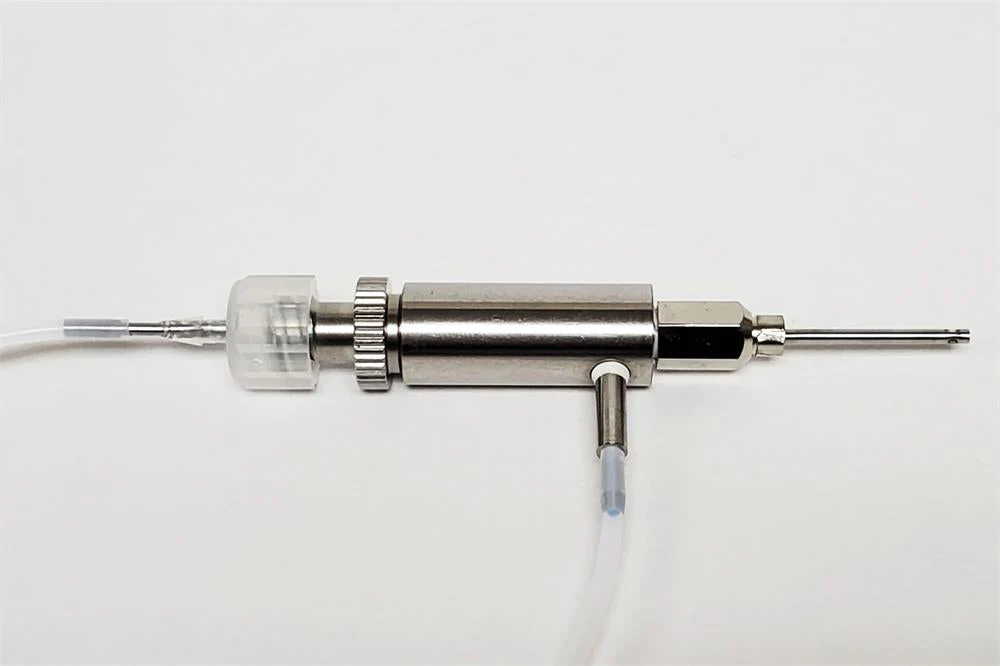

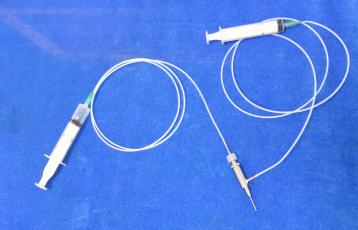

ES1U-CNoz is a set of Co-axial Nozzle with Dual Inlets. It allows you to inject two kinds of fiber-forming solutions in one nozzle. This is a replacement part for Electrospinning System EQ-NEFS-1U as well as an excellent component for customers who want to build their own research equipment.

SPECIFICATIONS

Structure
  • The Co-axial Nozzle is pre-assembled with the following accessories:
    • One Co-axial Nozzle
    • Two 18S PTFE Connecting Tubes (1.07mm ID, 1.97 mm OD)
    • Two 18G Blunt Needles for Syringes
      • Outer nozzle: OD 1.45mm, ID 1.0mm
      • Inner nozzle: OD 0.6mm, ID 0.4mm
    • Spare sealing rings
  • Syringes are NOT included. They normally come with syringe pumps.
  • Net Weight: 25g
Optional Devices
(Not Included)
  • The Co-axial Nozzle works with below Electrospinning System - MSK-NFES-1U
  • To build a DIY electrospinning system, you may also need:
    • Reciprocating Injection Head and Drum Collector (Pic. 1)
    • A high voltage power supply (Pic 2)
    • A Multi-channel Syringe Pump System (Pic.3)
    • Pic.1        Pic.2       Pic. 3
Operation Instructions Video


Reference Article
  • Electrospinning of Nanobers from Polymer Solutions and Melts
  • Transparent air filter for high-efficiency PM2.5capture
  • Electrospun core-shell microfiber separator with thermal-triggered flame-retardant properties for lithium-ion batteries
Application Notes
  • Clean the nozzle and tube after use to prevent clogging.
  • Avoid using with nonhomogenous solution systems. Nozzle may clog.
  • Be cautious of using hazardous materials, strong acid and alkaline. Contact your health and safety department manager for detailed material handling instruction.
