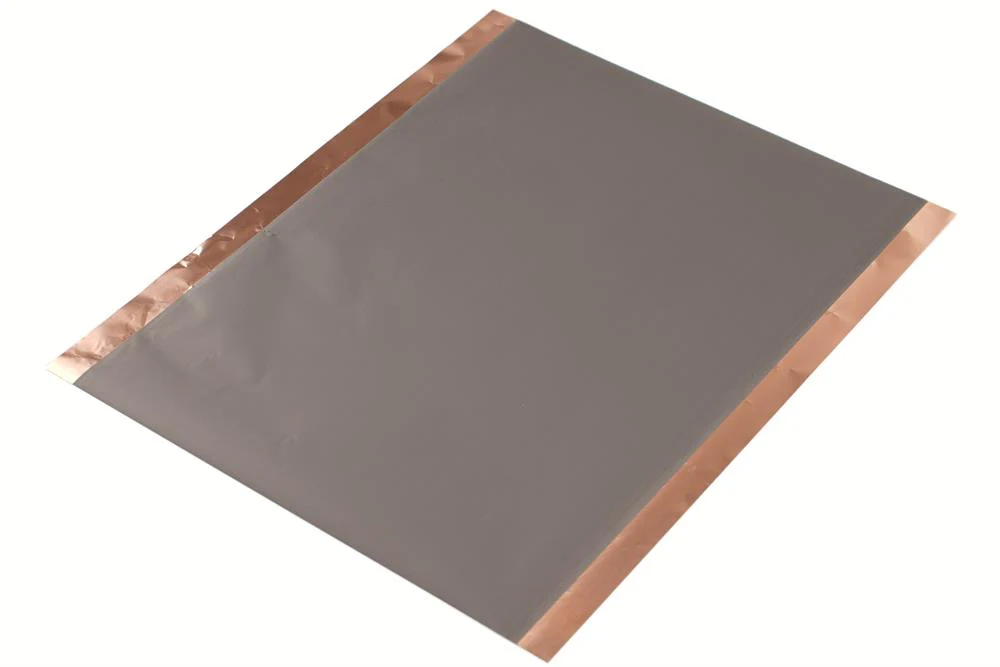

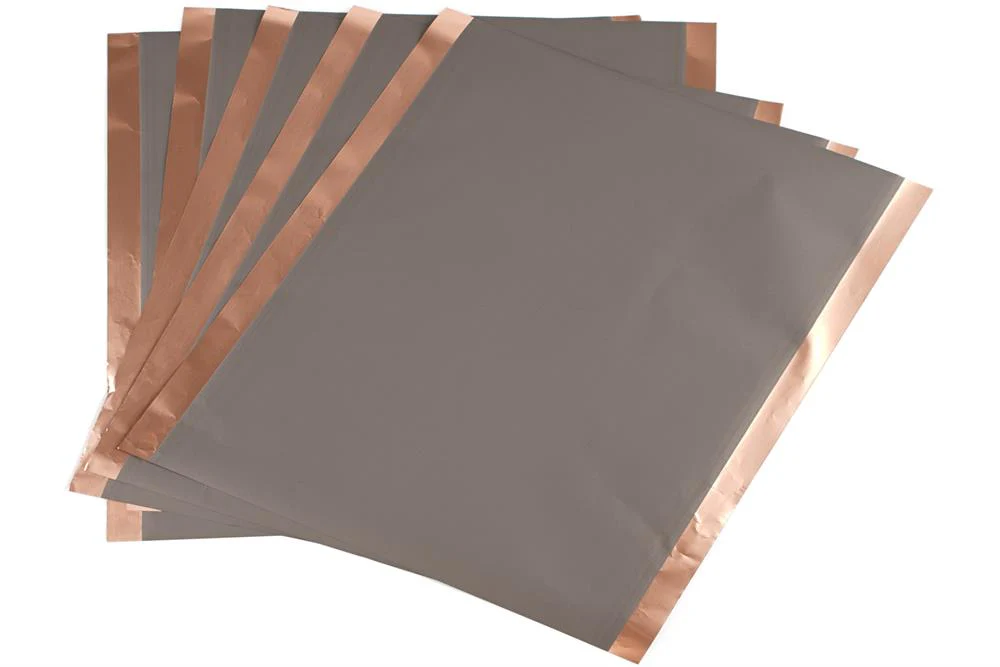

Hydrophobic Graphite Single-Side Coated on Copper Foil as Aqueous Li-Ion Battery Anode - (241mm L x 200mm W x 65 um T), 5 sheets/bag, bccf-241-ss-h

Specifications

• Current collector (substrate): Copper foil, 9 micron
• Coating Area: 241mm L x 175mm W (12.5 mm margins on both sides)
• Total Thickness: 65 μm
• Foil Thickness: 9 μm
• Anode material: Artificial Graphite (95.5%)
• Binder: PVDF (3%), conductive carbon" Super P, 1.5%
• Compaction density: 1.2±0.1 g/cm3
• Foil Areal Density: 8.7 mg/cm²
• Single side coating material density: 6.3± 0.2 mg/cm²

• Specific Capacity: 340mAh/g
• Qty: 5 Sheets/bag
  Warning: Please dry in vacuum oven before using and store it inside the glovebox after opening the package. The recommended temperature and time can be 80-120 °C for 6-12h.
• Note: if you use the electrode sheet for single layer button cell, you shall
  remove one layer coating with sandpaper to make one side contact to the button cell case.



  How to make a water-based electrode (graphite for the anode) for your reference: 1. Weight Ratio (All other weights depends on how much active power your will use): Active Powder: 92.5% CMC: 1.5% SBR liquid: 2.5% Conductive: 3.5% Absolute Alcohol: 15ml/kg graphite DI water: At least 125% of graphite 2. Make liquid thicken agent: Heat up Deionized water to 60C and then slowly put the CMC into it and keep stirring unless all of them dissolved. 3. Put alcohol into 125% Deionized water and then to conductive powder to stir. 4. Put active powder into 3 and stir (better have vacuum mixing) 5. Put liquid thicken agent into 4 and stir (better have vacuum mixing) 6. Put SBR into 5 and stir (better have vacuum mixing) 7. Take a little sample and test the viscosity, if, in 3000-5000 mPa·s, it is OK to coat, if over, put some Deionized water, if less, the binder in (CMC and SBR)

  Click below to view the video:  how to coat the electrode and then make a coin cell
