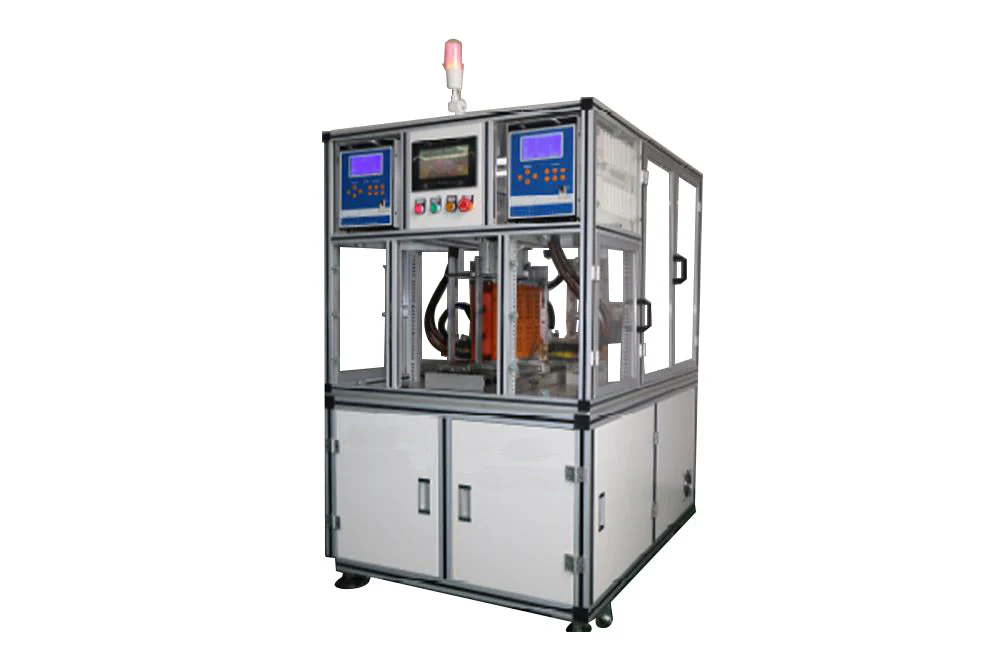

Automatic alarm system to avoid poor quality welding
Arbitrary point restarting after the welding adjustment
The welding time is less than 1 second and the discharging time for the battery cell is about 1 ms.
Welding programmable; It enables to skip welding one or more battery cells by programming
Fan cooling the welding needle
Two sides welding at the same time
PLC control
Emergency stop and alarm system
Capabilities
Cylindrical Cell 18650, 26650, 32650, and 32700
Power, Voltage, & Current
Welding Power Supply:
Quantity: 2 (Double sides welding)
Input Voltage: AC 380 V; Three Phases; 50/60 Hz
Output Voltage: 10 V
Power: 15 KVA
Maximum Current: 5,000 A
Automatic XY stage:
Voltage: AC 220V; Single Phase;
Power: 1.2 KW
Current: 5A
PLC Control:
Voltage: AC 220 V 50/60 Hz
Power: 12 Watts
Welding
2 welding power supply for the top and bottom side welding with Fan cooling
LCD touch screen
Welding needle: Alumina copper with 1.7 mm diameter x 85 mm length
Welding current: 800 A - 5000 A
Welding time: 0 - 299 ms
0-49% Adjustable
Nickle thickness: 0.1 mm - 0.2 mm

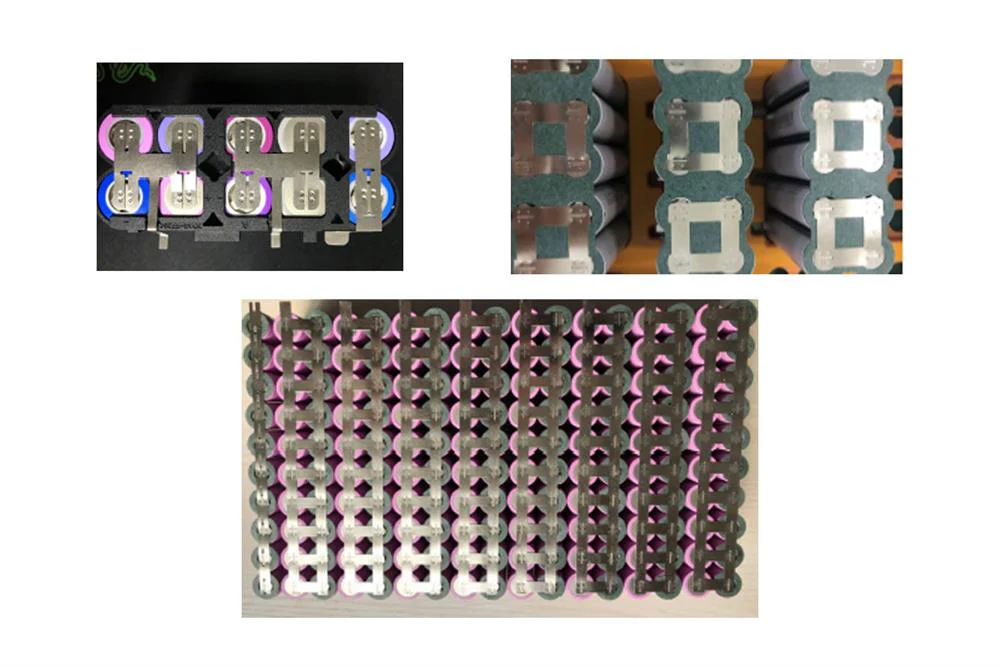

Welding performance: 0.15 mm thickness nickel tab with the tension 6 kg force maximum
Automatic XY stage
Required air pressure: 0.4 Mpa
Triaxial servo motor with 400 watts power
Working range:
X-axis: 450 mm
Y-axis: 250 mm
PLC Control
Up to 35 saved programs
Default USB communication port for the program upload and download
Each program includes the pack dimension, battery cell diameter, numbers, the nickel tab dimension. and the frame informationÂ

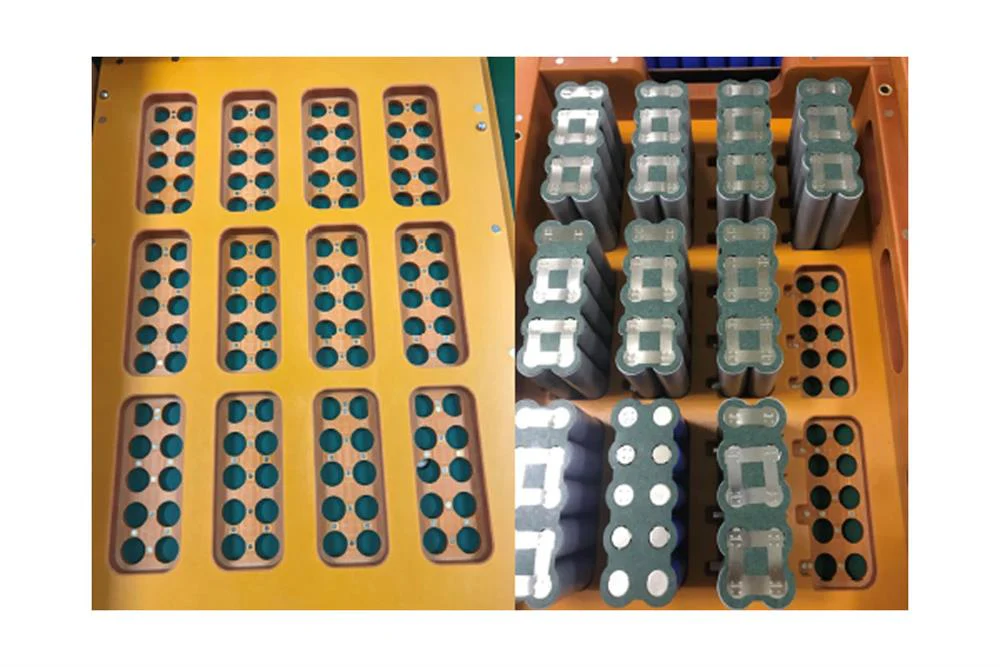

Battery cell holder
2 sets of the insulative wood cylindrical cell 18650 holders included in the standard package
Any customized cell holder is available at the extra cost
Input Air Pressure
0.4 - 0.8 Mpa ( air compressor is required, please order at related product below )
Attention: If a gas cylinder is used instead of the air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.
pic1 pic2
Operation Temperature
-20 - 40
Certificate
CE certified.
With additional certification fee, MTI can arrange NRTL to perform UL/CSA inspection and label the machine per customer's request.Â
Automatic alarm system to avoid poor quality welding
Arbitrary point restarting after the welding adjustment
The welding time is less than 1 second and the discharging time for the battery cell is about 1 ms.
Welding programmable; It enables to skip welding one or more battery cells by programming
Fan cooling the welding needle
Two sides welding at the same time
PLC control
Emergency stop and alarm system
Capabilities
Cylindrical Cell 18650, 26650, 32650, and 32700
Power, Voltage, & Current
Welding Power Supply:
Quantity: 2 (Double sides welding)
Input Voltage: AC 380 V; Three Phases; 50/60 Hz
Output Voltage: 10 V
Power: 15 KVA
Maximum Current: 5,000 A
Automatic XY stage:
Voltage: AC 220V; Single Phase;
Power: 1.2 KW
Current: 5A
PLC Control:
Voltage: AC 220 V 50/60 Hz
Power: 12 Watts
Welding
2 welding power supply for the top and bottom side welding with Fan cooling
LCD touch screen
Welding needle: Alumina copper with 1.7 mm diameter x 85 mm length
Welding current: 800 A - 5000 A
Welding time: 0 - 299 ms
0-49% Adjustable
Nickle thickness: 0.1 mm - 0.2 mm
Welding performance: 0.15 mm thickness nickel tab with the tension 6 kg force maximum
Automatic XY stage
Required air pressure: 0.4 Mpa
Triaxial servo motor with 400 watts power
Working range:
X-axis: 450 mm
Y-axis: 250 mm
PLC Control
Up to 35 saved programs
Default USB communication port for the program upload and download
Each program includes the pack dimension, battery cell diameter, numbers, the nickel tab dimension. and the frame informationÂ
Battery cell holder
2 sets of the insulative wood cylindrical cell 18650 holders included in the standard package
Any customized cell holder is available at the extra cost
Input Air Pressure
0.4 - 0.8 Mpa ( air compressor is required, please order at related product below )
Attention: If a gas cylinder is used instead of the air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.
pic1 pic2
Operation Temperature
-20 - 40
Certificate
CE certified.
With additional certification fee, MTI can arrange NRTL to perform UL/CSA inspection and label the machine per customer's request.Â
