4" Dia. High Vacuum Heating Plate upto 800C for Sputtering Coater DIY - HVHP-100

HVHP- 100 is a 4" heating place designed for use in a high vacuum chamber and a glove box.  It is widely used as a heatable sample holder up to 800ºC for a DIY sputtering or evaporation coater.

SPECIFICATIONS:

Power & Heating Element	The heating elements: FeCrAl resistance wire         Max. working temperature: 800ºC < 8hrs (Air, vacuum or inert gas)\ K type thermocouple is included Input Voltage: 110-120 VAC, 50/60Hz, single phase Power: 850W

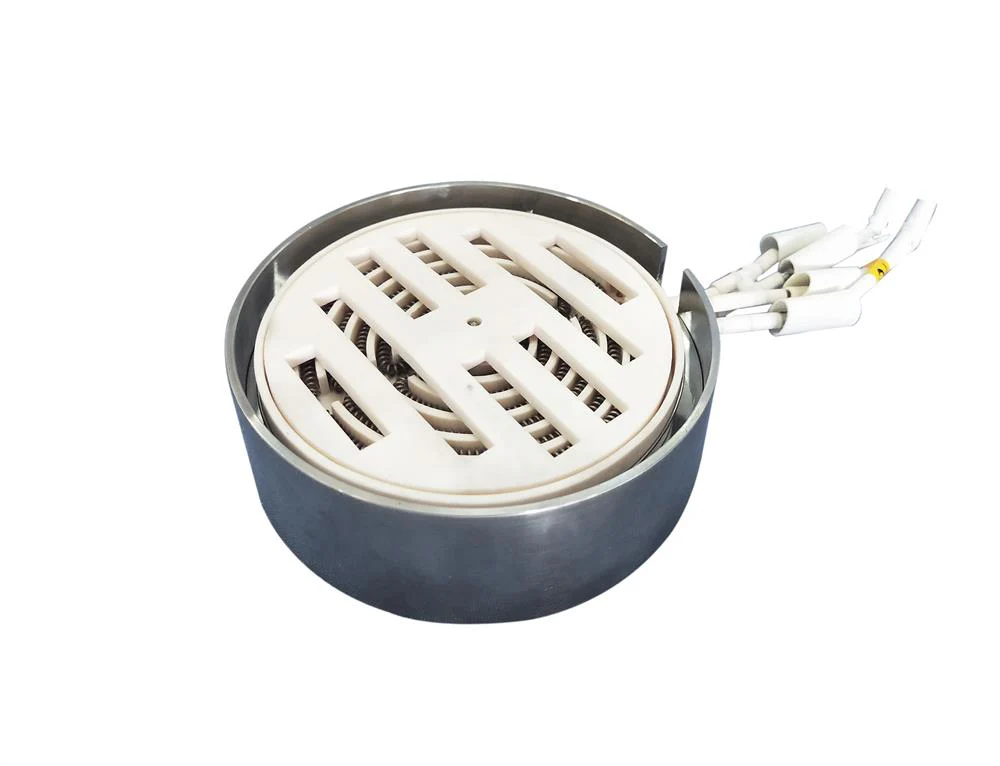

Heating Plate	Dimension: Φ130 mm OD x 50 mm H   Heating area:100 mm diameter with +/- 5ºC Heating Rate: 5ºC/minute recommended Thermocouple: K Type

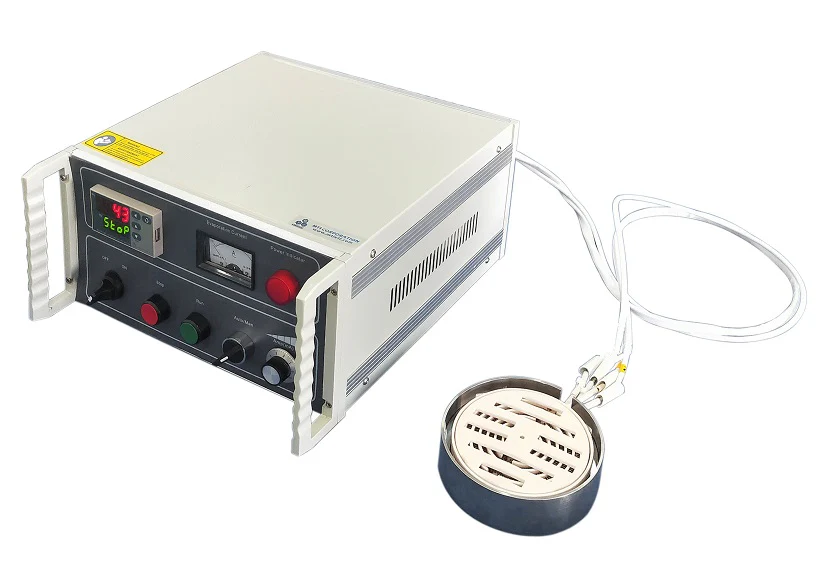

Temperature Control	SCR Temperature Controller 30 segment programmable PID digital autotune +/-1 °C  accuracy
Feedthrough ( optional)	KF25/40 feedthrough is available to put the heater inside a glove box. Please click the link below for details.  For high-vacuum applications, please connect MTI for the technical details.
Dimension
Net Weight	4 lbs
Warranty	One year limited with lifetime support
Compliance	NRTL or CSA certification is available upon request at the extra cost.
DIY Suggestions	Sputtering           Evaporing            CSS       CVD
Operation Instructions and Video
