2 Dia. High Vacuum Heating Plate upto 1000C for Sputtering Coater DIY - HVHP-50

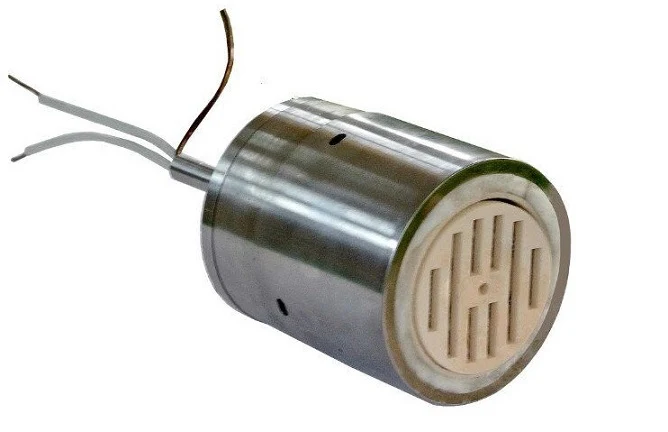

HVHP- 50 is a high vacuum heating plate with  2" dia. uniform temperature zone.  It is designed as a heatable sample holder with optional Max. 800ºC and Max. 1000ºC for DIY a sputtering or Evaporation coater at a lower cost.

SPECIFICATIONS:

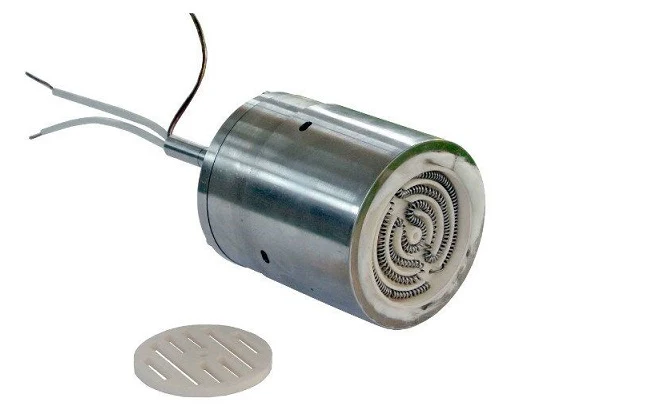

Heating Element & Input Power	Optional for two Kinds of heating elements ( pls choose from product options bar ) FeCrAl Resistance wire:           Max. 800ºC < 8hrs @ 400W (Air, vacuum or inert gas) Mo resistance wire:               Max. 1000ºC < 8hrs @ 800W  (Vacuum or inert gas) Input Voltage:   0 - 35 VAC 50/50Hz single phase
Heating Plate	Dimension                   78 mm OD x 85 mm H   + . support rod ( 10 mm dia x 62 mm L ) Heating area     51 mm diameter with +/- 5ºC Heating Rate:                  5ºC/minute recommended Thermal Couple:             K Type           Optional:    Rotating heater with speed (0 - 5 RPM) is available upon request at extra cost.

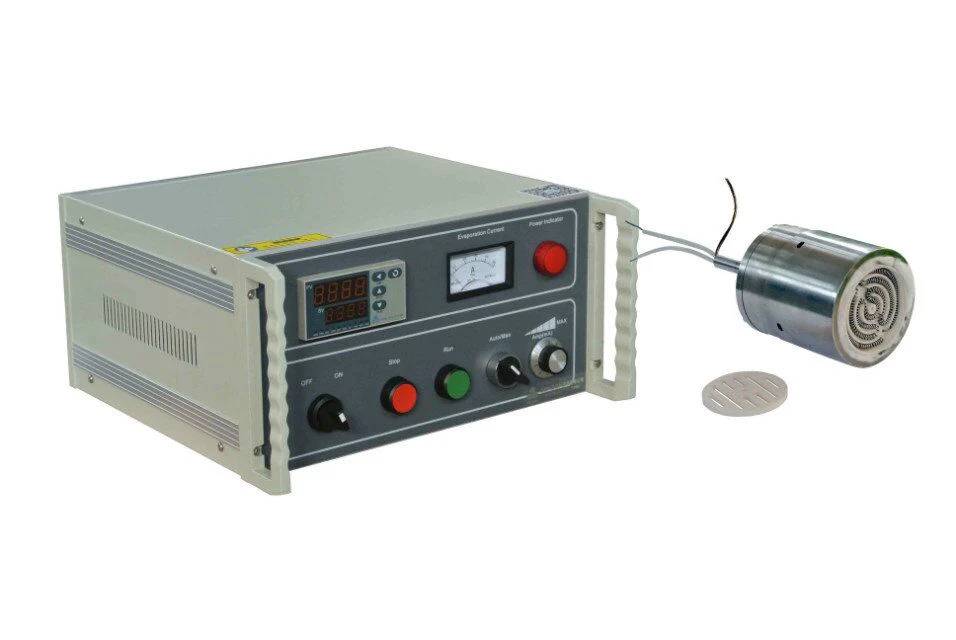

Temperature Control	SCR Temperature Controller 30 segment programmable PID digital autotune +/-1 °C  accuracy

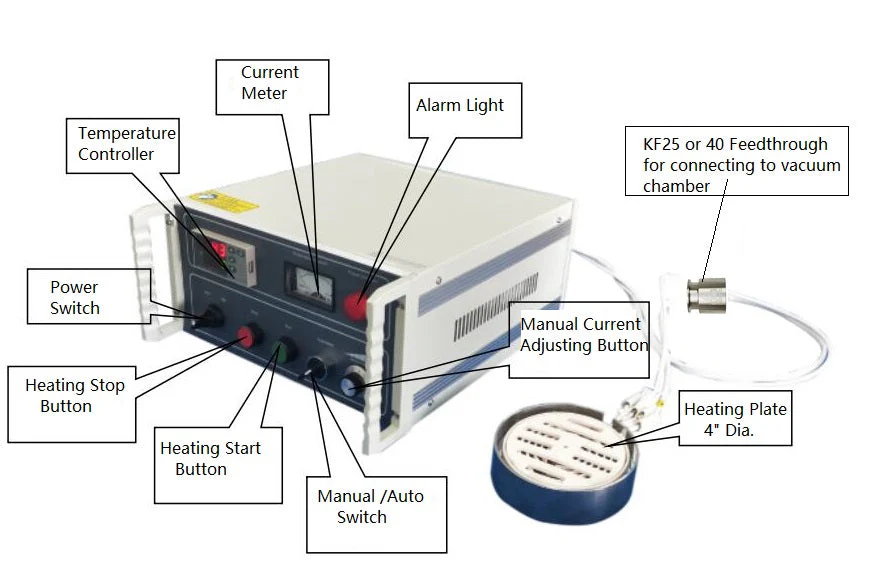

Feedthrough ( optional)	You may need KF40 feedthrough to put heater inside the vacuum chamber. Please click the link below to order:
Dimension	Click the picture to see
Net Weight	2 lbs
Compliance	NRTL or CSA certification is available upon request at the extra cost
Warranty	One year limited with lifetime support

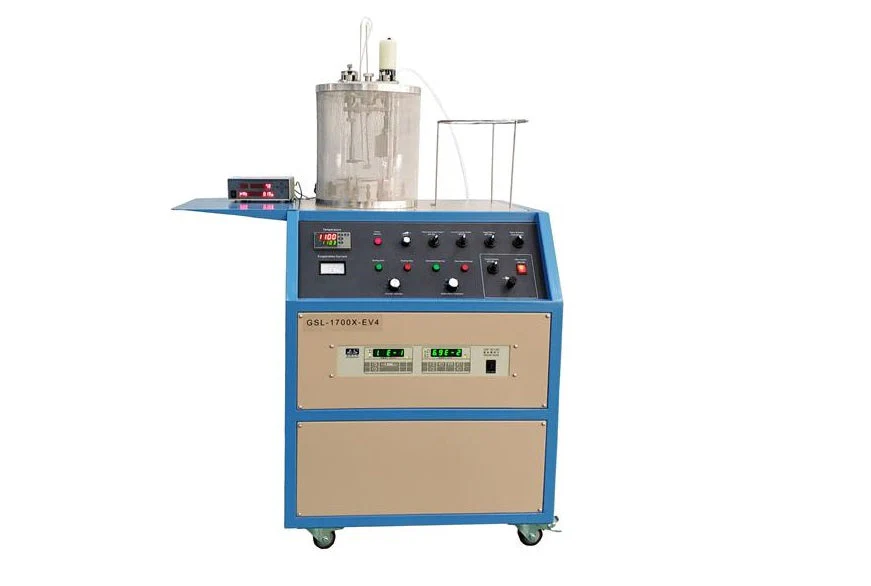

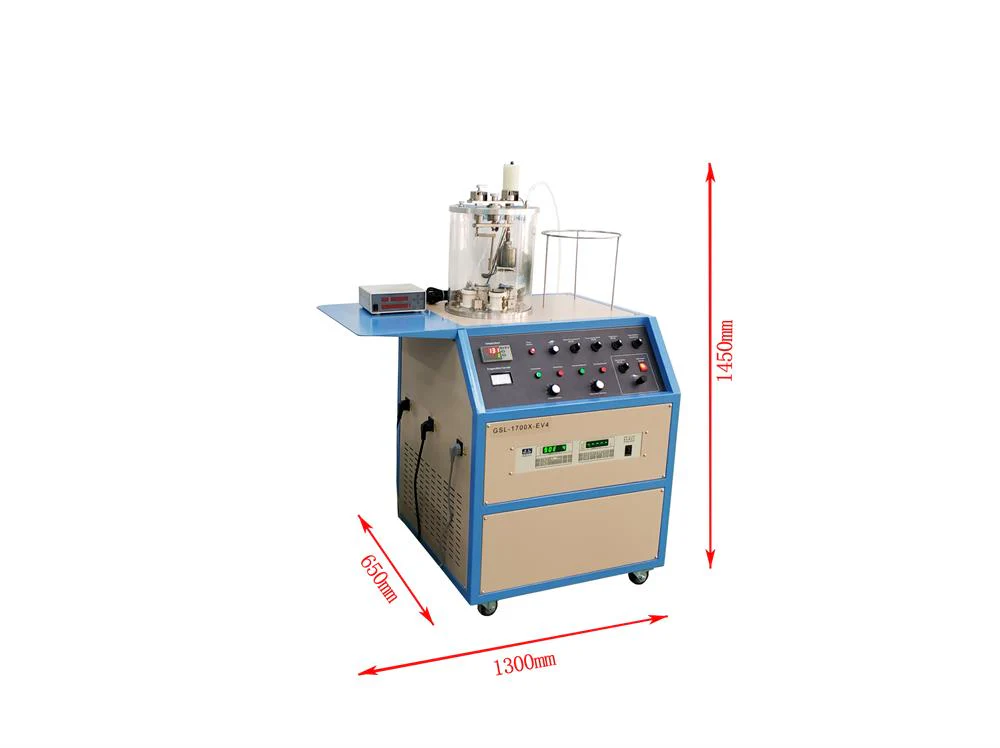

DIY Suggestions	Sputtering             Evaporing                   CSS                    CVD

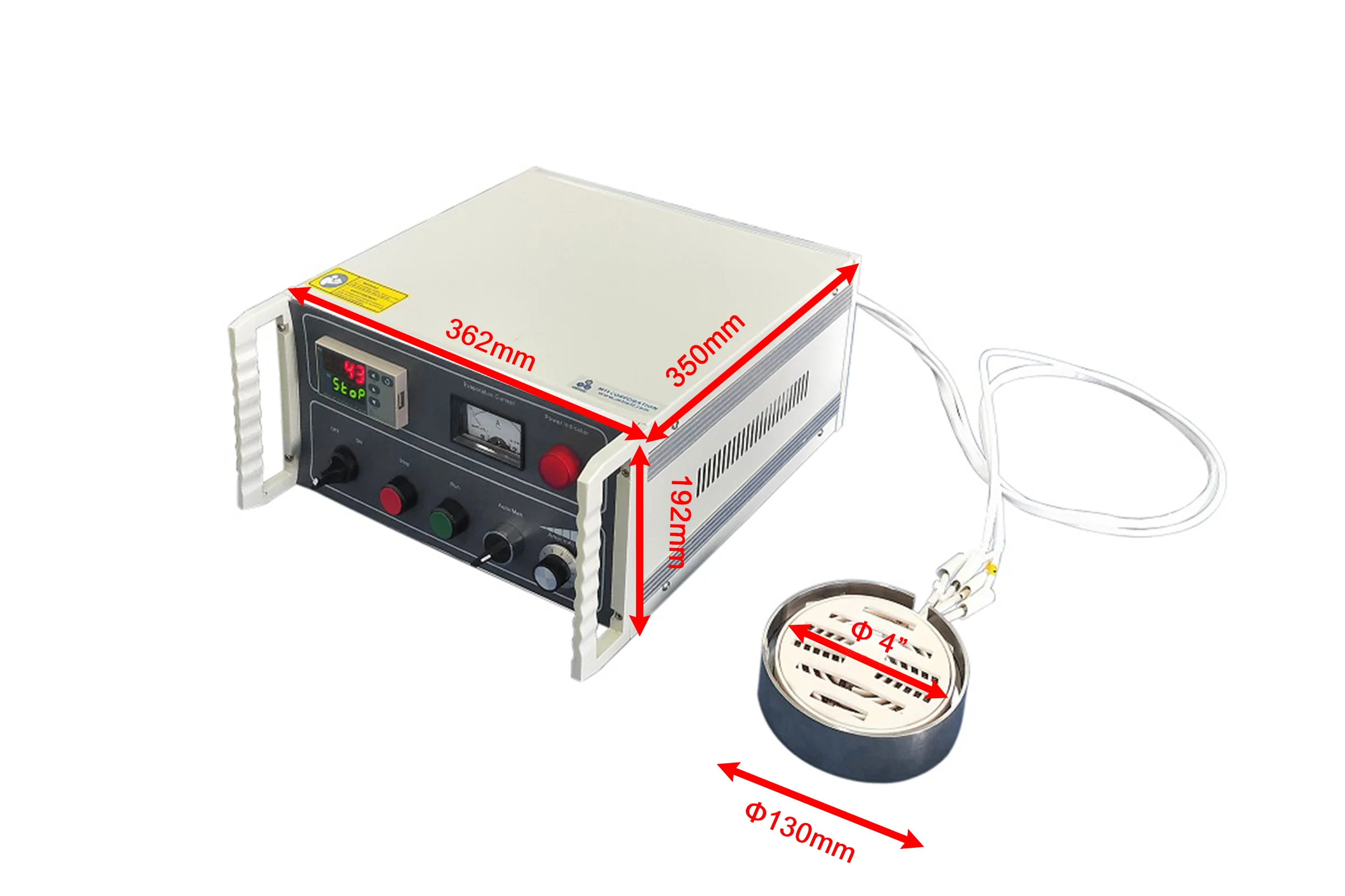

More Sputter Components	Click the picture above for more products.
