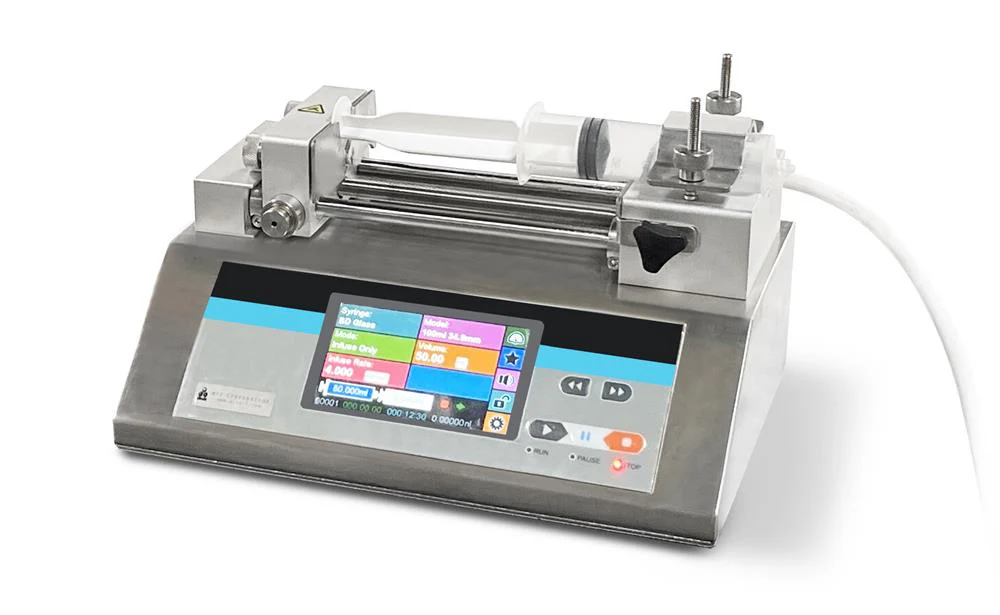

Digital Controlled Infusion Syringe Pump ( 2uL-295mL/min) - 200SP
HomeStore

Digital Controlled Infusion Syringe Pump ( 2uL-295mL/min) - 200SP

Digital Controlled Infusion Syringe Pump ( 2uL-295mL/min) - 200SP

SPECIFICATIONS:

Features
  • Easy to use control panel screen
  • High-precision control
  • Holds small or big syringes up to 200 mL
  • Pumps continuously until stopped by the operator or reached the limit.
  • The infusion rate can be adjusted while pumping
  • Remembers previous settings on power-up
  • Power failure mode allows the pump to continue pumping after resetting
  • Multiple operating modes: Infuse only, Withdraw only, Infuse/Withdraw, Withdraw/Infuse
  • Displays total volume dispensed in mL units
  • Pumping rate range: 1.963μL/min minimum and 294.524mL/min maximum with a 50mm ID syringe
  • The movement speed of the plunger: 150 mm/min (Max) 0.001 mm/min (Min)
  • Selectable infusion rate units: µL/min and mL/min
                        Input Power Requirement
                        • 220VAC 50/60Hz
                        • 220W
                        Syringe
                        • A 200ml syringe is included in the standard package
                        • Acceptable syringe OD: 25 ~ 50mm
                         Dimensions
                        • 290mm(L) x 200mm(W) x 185mm(H)
                        weight
                        • 10kg
                        Applications notes

                        		    Pre-metered Horizontal-Dipping Process

                        Such syringe pump can precisely control the volume of the solution per unit coating area been fed into the gap between the cylindrical barrier and the glass substrate.
                        Doctor-Blade (or Wire-Bar) Coating
                        Such a Syringe Pump can be used for adding a solvent at various concentrations. By using multiple syringe pumps, you can add an ingredient in a certain weight ratio to a mixed solution. Similar to the Horizontal-dipping Process, the blended organic solution is introduced into the space between the barrier and the substrate by such pumps' capillary action. The Doctor-Blade is transported horizontally at a given constant velocity, a thin solution layer is then spread and formed evenly on the substrate.
                            Dip Coating
                        Wet solution coating such as dip coating has been the most popular method for solution-processed devices.
                          DIY an Ultrasonic Spray and Electrospinning device
                        Operation instructions
                        Options Click the Picture below to order Heat-able and multi-channel Syringe Pump
