2000ÂșC Max. Fast Heating Crystal Growth Furnace with High Vacuum Chamber -RTP-CZ-2000

2000ÂșC Max. Fast Heating Crystal Growth Furnace with High Vacuum Chamber -RTP-CZ-2000

RTP-CZ-2000 is designed for growing diamond fiber and crystal from liquid metal.  It heats rapidly a graphite crucible via resistance up to 2000 °C in a high vacuum SS chamber, and pulls a crystal at a variable speed.  This compact CZ grower can also grow various metallic crystal samples up to a 2000 °C melting point

 Specifications

Power
  • Voltage:  220VAC +/- 10%, three phase
  • 17 KW

 Heating
  • Heating element: graphite crucible with dimensions of 171 L x  28W x 25 H ( mm)
  • Max. working temperature: 2000 °C
  • Max. heating rate: 80  °C/S
  • IR temperature control with +/- 1°C accuracy

Vacuum Chamber




  • Water cooling chamber made of stainless steel with sie 350 D x 380 mm
  • An air-tight pulling mechanism is installed on the top of the vacuum chamber
  • Pulling distance: 100 mm
  • Pulling rate: 0.5 - 50 mm/ h, adjustable
  • Quick-moving speed:  60mm/min
  • One quartz window of 35 mm diameter for the IR sensor
  • One KF 40 port for connecting a vacuum pump
  • One KF16 port for an optional vacuum gauge
  • One 1/4" gas inlet and two 1/4" gas outlets with the needle valves
  • One mechanical pressure gauge ( -0.1 - 0.15 MPa)
  • One set of graphite insulation for the crucible is included

Control Panel
  • The control panel is in a separate unit
  • Manual and automatic temperature control are selectable by a switch.
  • Automatic temperature control is via an IR sensor and a 30-segment programmable controller with +/- 1.0 °C accuracy
  • Manual temperature control is via an adjustable knob.
  • A touch screen panel is installed on the control unit to set up the temperature profile, pulling speed, and display pressure value.
Vacuum Pump
and
Gas Purification System
(Optional)
  • 10E-2 torr via dual-stage mechanical vacuum pump (Pic. 2)
  • 10E-5 torr via Turbopump (Pic. 1)
  • The vacuum pump is optional. Please click here to choose a vacuum pump.
  • For oxygen-sensitive material, suggest using a recirculating gas purification system ( H2O, O2 < 1 ppm) to replace the turbopump (Pic. 3)
  •  Pic. 1 Pic. 2  Pic. 3

Water Chiller
(Optional)

  • Digital Temperature Controlled Recirculating Water Chiller with 75L/min Flow, 30K BTU/hr is required, please click the picture left to order as an option

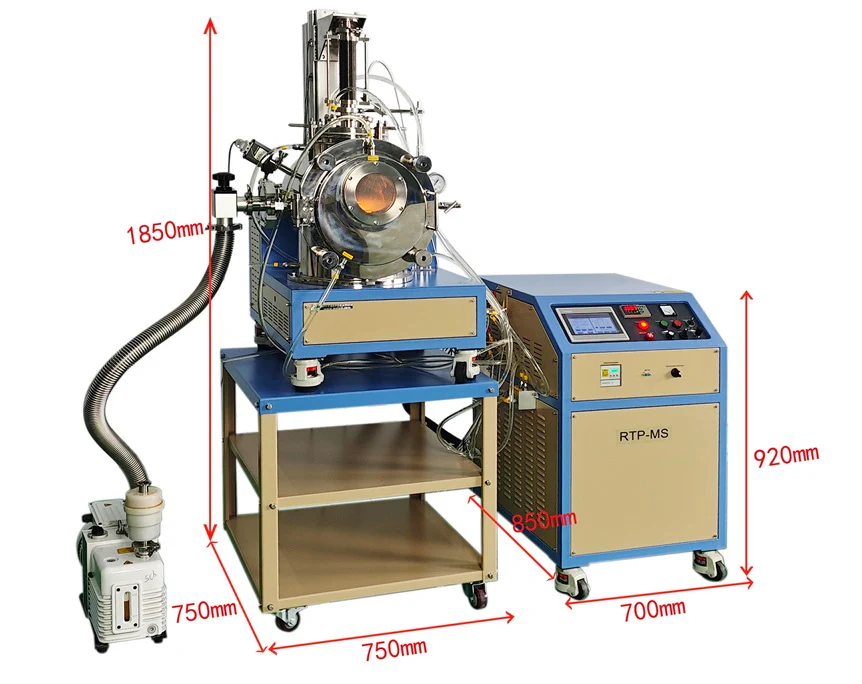

Dimension & Weight
  • Net weight:   350Kg
  • Size:
  • Growing unit:  L750* W750*H1850mm
  • Control unit:    L700 W 850 H 920mm
Compliance
  • NRTL certification is available upon request
Warranty
  • One-year limited warranty
Installation and Training
  • Installation and training are required and available



$20,994.75

Original: $59,985.00

-65%
2000ÂșC Max. Fast Heating Crystal Growth Furnace with High Vacuum Chamber -RTP-CZ-2000—

$59,985.00

$20,994.75

More Images

2000ÂșC Max. Fast Heating Crystal Growth Furnace with High Vacuum Chamber -RTP-CZ-2000 - Image 2

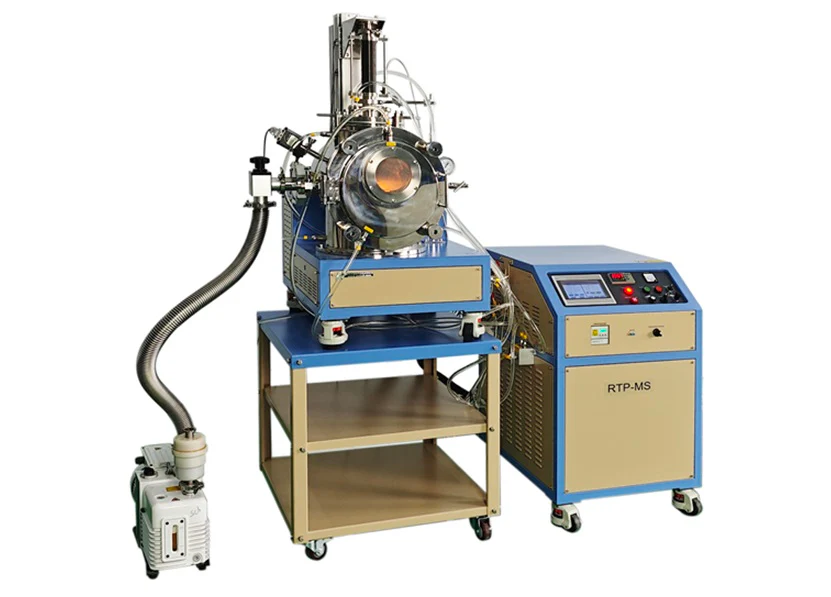

2000ÂșC Max. Fast Heating Crystal Growth Furnace with High Vacuum Chamber -RTP-CZ-2000 - Image 3

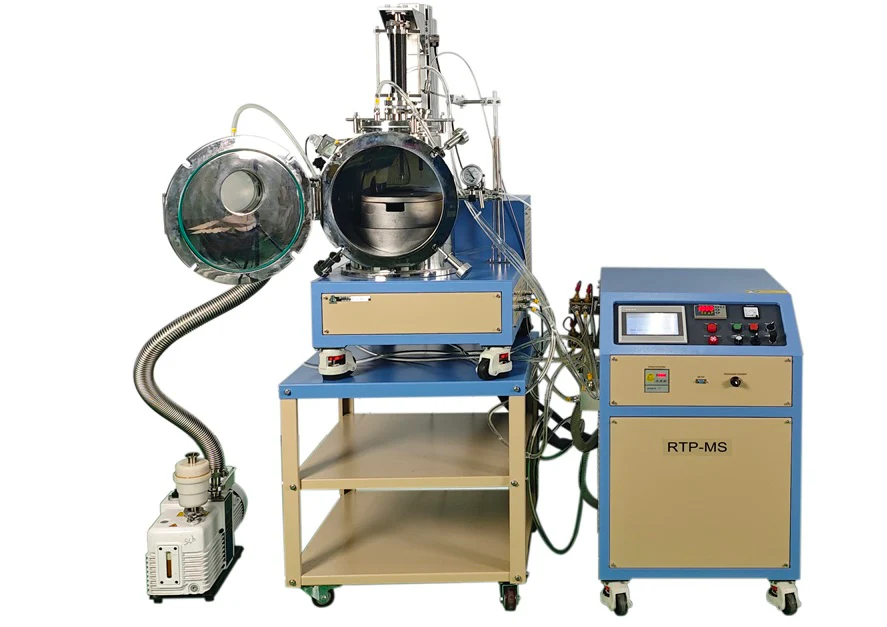

2000ÂșC Max. Fast Heating Crystal Growth Furnace with High Vacuum Chamber -RTP-CZ-2000 - Image 4
2000ÂșC Max. Fast Heating Crystal Growth Furnace with High Vacuum Chamber -RTP-CZ-2000 - Image 5

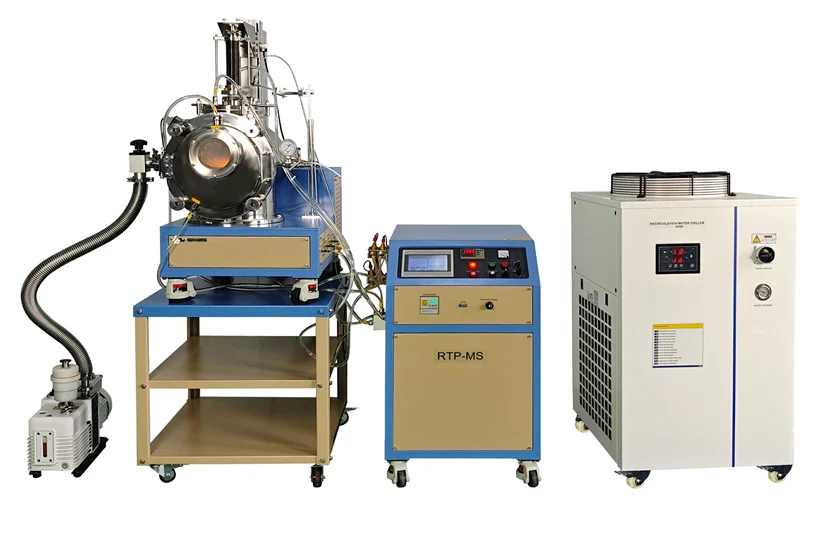

2000ÂșC Max. Fast Heating Crystal Growth Furnace with High Vacuum Chamber -RTP-CZ-2000 - Image 6
