20 pcs 2" Die / IC Tray (500 Pockets of 48x46x22 mil or 1.22x1.17x0.56 mm) - NH20-48-46-22

20 pcs 2" Die / IC Tray (500 Pockets of 48x46x22 mil or 1.22x1.17x0.56 mm) - NH20-48-46-22

20 pcs 2" Die / IC Tray (500 Pockets of 48x46x22 mil or 1.22x1.17x0.56 mm) - NH20-48-46-22

Specifications:

TYPE: NH20-48*46-22

Material: Natural ABS With ESD Coating

Surface Resistivity (ohms/sq.)): 10⁹ - 10¹¹

Temp. Limit: 70 centigrade

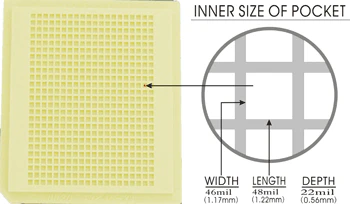

POCKET DETAILS:
Pocket Size(mil): L48*W46*D22

Pocket Size(mm): L1.22*W1.17*D0.56

Array (Capacity): 20*25 =500

Package: sold in 20 pcs per box

OVERALL TRAY SIZE

Size = 50.67mm

Height = 3.94mm

Flatness = 0.30mm

Note:

This series provides a kind of safe and convenient packing and delivery solution for bare die, CSP, opto-electronics and other microelectronics devices.
For cover and clamp, please see related product below
