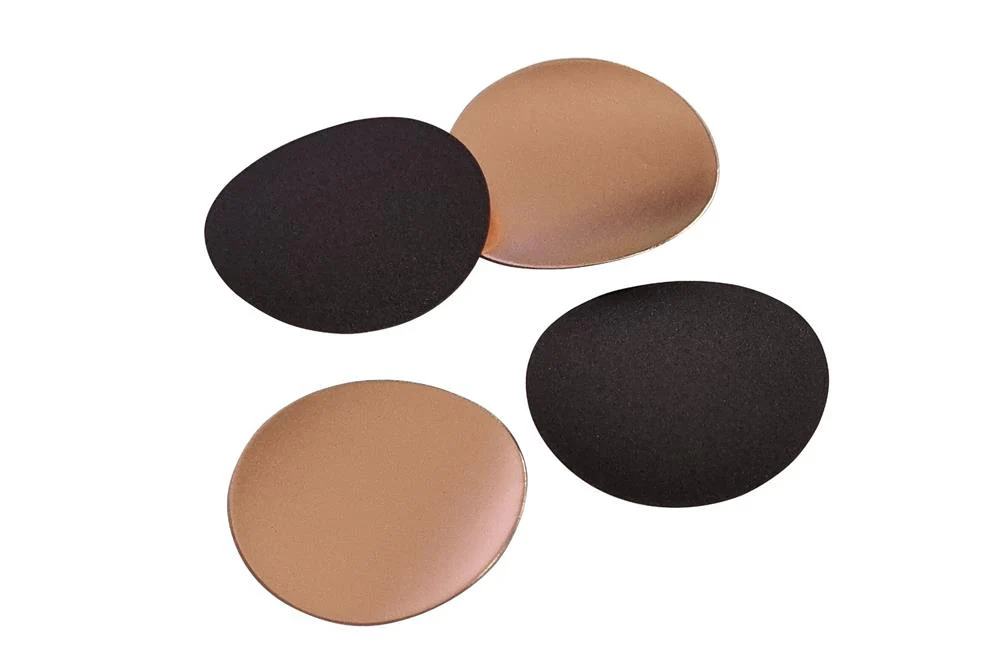

16 mm Dia Si/C Single Side Coated Cathode Electrode Disk for CR20XX Coin Cells, 100 pcs/ pack - bccf-SiCss-D16
16 mm Dia Si/C Single Side Coated Cathode Electrode Disk for CR20XX Coin Cells, 100 pcs/ pack - bccf-SiCss-D16
This electrode sheet is based on copper foil coated with silicon-carbon composite (Si/C) on a single side and is used as an anode of Li-Ion battery.
Specifications
-
Current collector (substrate):Ā Copper foil, 9 micron
-
AnodeĀ material: Silicon-Carbon composite (Si/C, Si:C = 1:9)
- Binder: SBR+CMC (2.5% SBR, 2% CMC), conductive carbon" Super P, 2.5%Ā
- Single-side coating material density: 5.0 Ā± 0.2 mg/cm2
- Compaction density: 1.2Ā Ā± 0.1 g/cm3
- Active Material Proportion in Powder: 94%
- Total Thickness: ~50 um (single-side coated)
- Foil Thickness: 9 um (Volume Destiny: 8.94 g/cm3, and Area Destiny: 8.046 mg/cm2)
- Specific Capacity: 425 mAh/g
- Warning: Please dry in vacuum oven before using and store it inside the glovebox after opening the package. The recommended temperature and time can be 80-120 Ā°C for 6-12h.Ā
SDS for Copper foil
SDS for Composite Graphite
SDS for SBR
SDS for CMC
$86.80
Original: $248.00
-65%16 mm Dia Si/C Single Side Coated Cathode Electrode Disk for CR20XX Coin Cells, 100 pcs/ pack - bccf-SiCss-D16ā
$248.00
$86.8016 mm Dia Si/C Single Side Coated Cathode Electrode Disk for CR20XX Coin Cells, 100 pcs/ pack - bccf-SiCss-D16
This electrode sheet is based on copper foil coated with silicon-carbon composite (Si/C) on a single side and is used as an anode of Li-Ion battery.
Specifications
-
Current collector (substrate):Ā Copper foil, 9 micron
-
AnodeĀ material: Silicon-Carbon composite (Si/C, Si:C = 1:9)
- Binder: SBR+CMC (2.5% SBR, 2% CMC), conductive carbon" Super P, 2.5%Ā
- Single-side coating material density: 5.0 Ā± 0.2 mg/cm2
- Compaction density: 1.2Ā Ā± 0.1 g/cm3
- Active Material Proportion in Powder: 94%
- Total Thickness: ~50 um (single-side coated)
- Foil Thickness: 9 um (Volume Destiny: 8.94 g/cm3, and Area Destiny: 8.046 mg/cm2)
- Specific Capacity: 425 mAh/g
- Warning: Please dry in vacuum oven before using and store it inside the glovebox after opening the package. The recommended temperature and time can be 80-120 Ā°C for 6-12h.Ā
SDS for Copper foil
SDS for Composite Graphite
SDS for SBR
SDS for CMC
