10KN Hot-Press (260x160 mm ) for Pouch Cell SEI Formation, 150C Max. - YLJHP10KN
HomeStore

10KN Hot-Press (260x160 mm ) for Pouch Cell SEI Formation, 150C Max. - YLJHP10KN

10KN Hot-Press (260x160 mm ) for Pouch Cell SEI Formation, 150C Max. - YLJHP10KN

MSK-YLJ-HP10KN is a 150°C max. pneumatic hot press with precise and constant pressure delivery up 1,000 kg. It is designed to provide an even pressure load and temperature environment for the tested pouch battery to achieve a more efficient and high-quality SEI formation. Meanwhile, the pouch shaping can be optimized through this process. It is also an ideal tool for testing the pressure effect on solid-state battery performance when an elevated temperature is needed.

SPECIFICATIONS:
Pneumatic Press
  • Max. Load: 10KN ( 1,000 kg )
  • Max. The pressure is dependent on the sample area ( Load Force / Area = P)
  • Pneumatic cylinder travel distance 95 mm Max.
  • Working area: 260 mm W x 160 mm D
Power Requirement
  • AC220V ±10%, 50Hz/60Hz
  • 2,100 W
Driven Gas
  • Driven by any standard air compressor, which is not included. Please click the picture on the left to order.
  • 0.7MPa
  • Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.
Heating Platens
  • Two heating platens with independent PID temperature control up to 150°C ± 5
  • Working area: 260 mm W x 160 mm L
  • Platen is made of Die Steel with HRC60°±2°
  • The parallelism of top & bottom platens <15um
Pressure
  • Digital pressure display with a timing control
  • Frontal manual adjustable valve for pressure tuning, 0.2~0.7MPa (1KN~4KN)
  • Pressure Accuracy: +/- 0.5 kg
Compliance
  • CE approval
  • NRTL certification is available upon request at extra cost. Please contact our sales representatives for a quote.
Optional
  • A battery analyzer is available upon request, and please choose at the link below:
  • Battery & Super-capacitor Analyzer





$19,998.00
10KN Hot-Press (260x160 mm ) for Pouch Cell SEI Formation, 150C Max. - YLJHP10KN—
$19,998.00

More Images

10KN Hot-Press (260x160 mm ) for Pouch Cell SEI Formation, 150C Max. - YLJHP10KN - Image 2

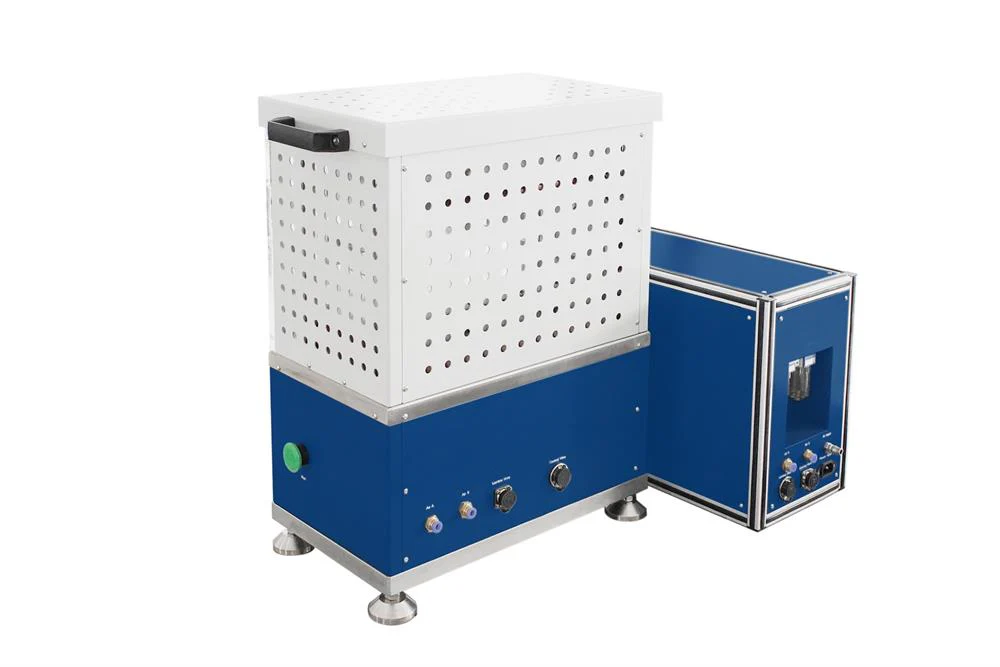

10KN Hot-Press (260x160 mm ) for Pouch Cell SEI Formation, 150C Max. - YLJHP10KN - Image 3

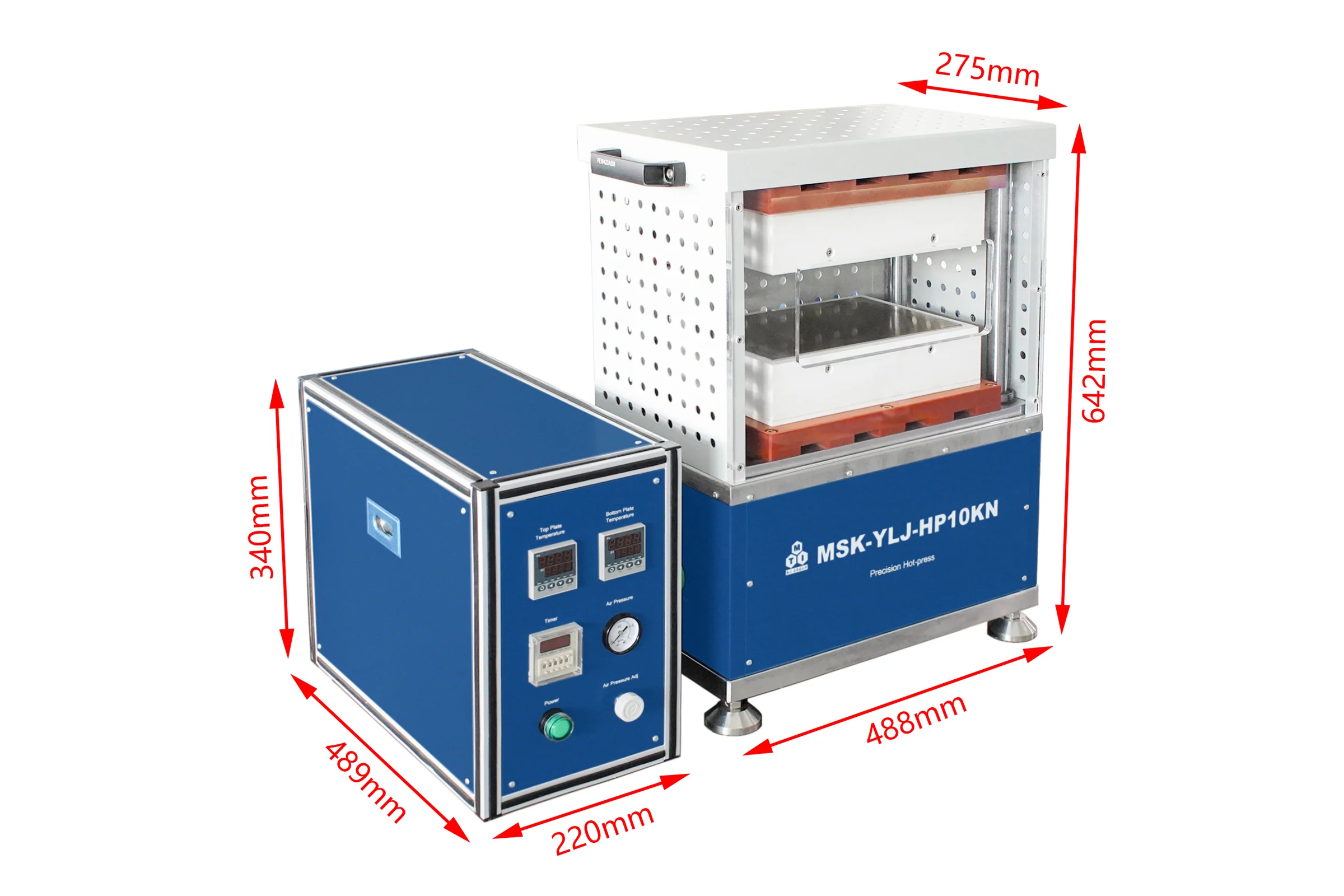

10KN Hot-Press (260x160 mm ) for Pouch Cell SEI Formation, 150C Max. - YLJHP10KN - Image 4
