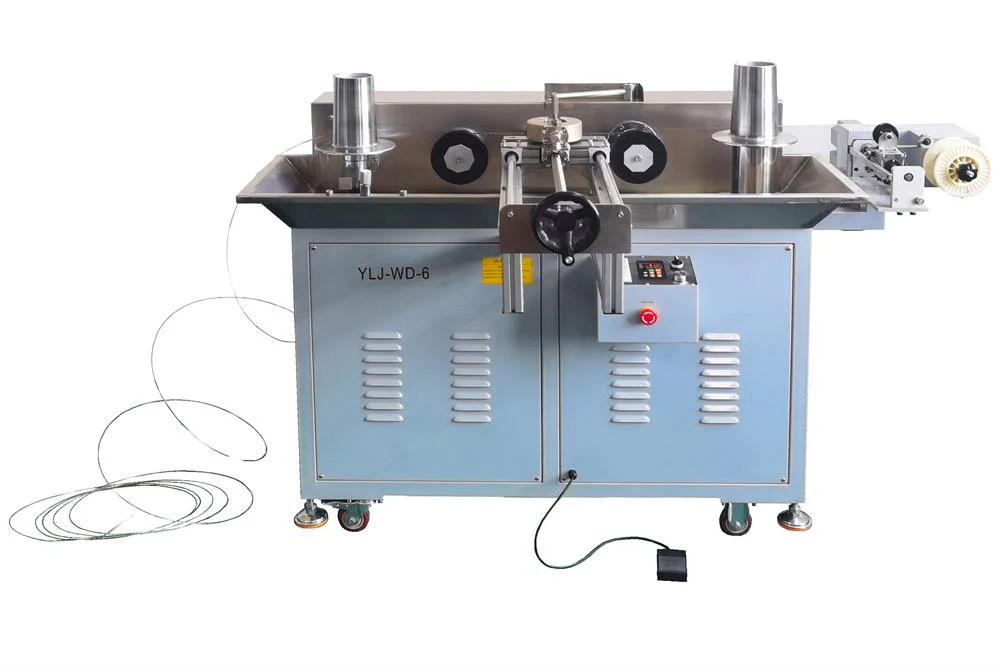

Wire Drawing Machine From 1.0 mm to 0. 2mm for WAAM - YLJ-WD-6
HomeStore

Wire Drawing Machine From 1.0 mm to 0. 2mm for WAAM - YLJ-WD-6

Wire Drawing Machine From 1.0 mm to 0. 2mm for WAAM - YLJ-WD-6

YLJ-WD-6 is a wire drawing machine with a series of diamond dies to make thin wire from 1 mm to 0.2 mm. This device is necessary for wire preparation of metallic wire for AM (Click here to see details) or called WAAM ( Wire Arc Additive manufacture )

SPECIFICATIONS:

Power
  • 208- 240V, single phase, 50/60Hz
  • 2.5 KW AC motor
  • 380VAC, three-phase is available upon request
Wire Drawing Die
  • Two sets of 12-hole diamond die plates are included for precision wire drawing
    • The first set of hole diameters: 1.0, 0.9, 0.8, 0.7, 0.65, 0.60, 0.55, 0.50, 0.45, 0.425, 0.40, 0.375 ( mm)
    • The second set of hole diameters: 0.35, 0.325, 0.30, 0.275, 0.25, 0.225, 0.20 ( mm)
  • For the most metallic with RC < 50, can draw to 0.2 mm
  • A coolant praying head is included
  • The automatic winding device is built in
  • Note: Diamond die is consumable
  • Customize the die is available
Drawing Speed
  • 0 - 50 mm/minute adjustable
Compliance
  • CE Certified
  • NRTL certification is available upon request at an extra cost
Application Note
  • Never draw materials with hardness > 50HRC
  • For some material, you may need to anneal it in a furnace after each rolling to avoid work hardening



$10,149.30

Original: $28,998.00

-65%
Wire Drawing Machine From 1.0 mm to 0. 2mm for WAAM - YLJ-WD-6—

$28,998.00

$10,149.30

More Images

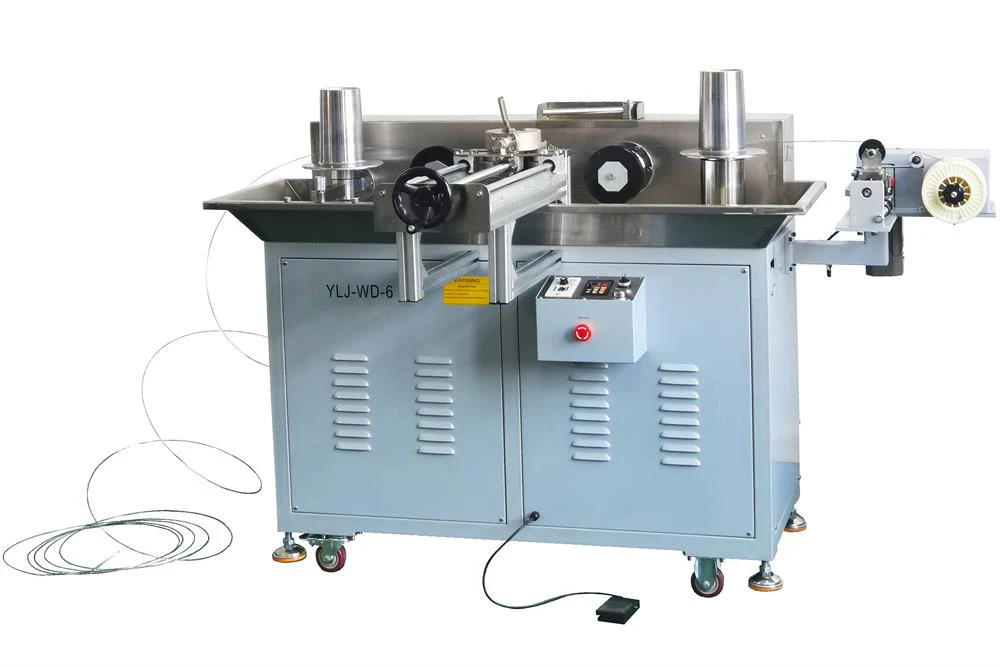

Wire Drawing Machine From 1.0 mm to 0. 2mm for WAAM - YLJ-WD-6 - Image 2

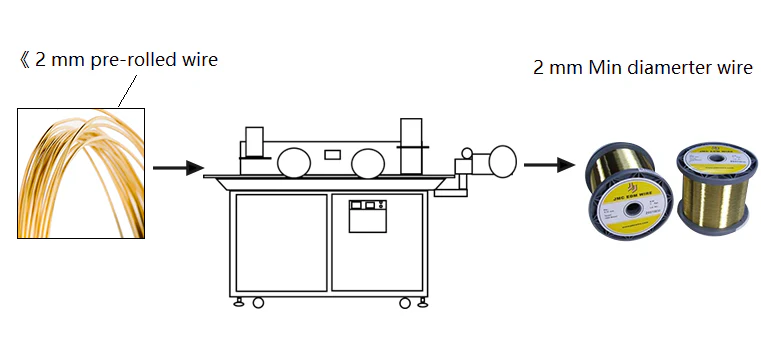

Wire Drawing Machine From 1.0 mm to 0. 2mm for WAAM - YLJ-WD-6 - Image 3

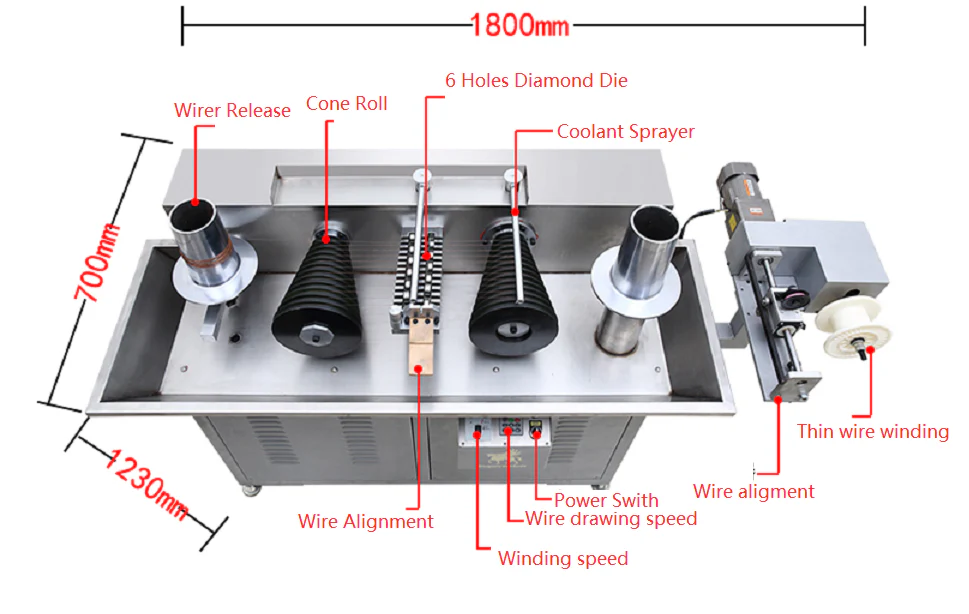

Wire Drawing Machine From 1.0 mm to 0. 2mm for WAAM - YLJ-WD-6 - Image 4

Wire Drawing Machine From 1.0 mm to 0. 2mm for WAAM - YLJ-WD-6

YLJ-WD-6 is a wire drawing machine with a series of diamond dies to make thin wire from 1 mm to 0.2 mm. This device is necessary for wire preparation of metallic wire for AM (Click here to see details) or called WAAM ( Wire Arc Additive manufacture )

SPECIFICATIONS:

Power
  • 208- 240V, single phase, 50/60Hz
  • 2.5 KW AC motor
  • 380VAC, three-phase is available upon request
Wire Drawing Die
  • Two sets of 12-hole diamond die plates are included for precision wire drawing
    • The first set of hole diameters: 1.0, 0.9, 0.8, 0.7, 0.65, 0.60, 0.55, 0.50, 0.45, 0.425, 0.40, 0.375 ( mm)
    • The second set of hole diameters: 0.35, 0.325, 0.30, 0.275, 0.25, 0.225, 0.20 ( mm)
  • For the most metallic with RC < 50, can draw to 0.2 mm
  • A coolant praying head is included
  • The automatic winding device is built in
  • Note: Diamond die is consumable
  • Customize the die is available
Drawing Speed
  • 0 - 50 mm/minute adjustable
Compliance
  • CE Certified
  • NRTL certification is available upon request at an extra cost
Application Note
  • Never draw materials with hardness > 50HRC
  • For some material, you may need to anneal it in a furnace after each rolling to avoid work hardening



Product Information

Shipping & Returns

Description

YLJ-WD-6 is a wire drawing machine with a series of diamond dies to make thin wire from 1 mm to 0.2 mm. This device is necessary for wire preparation of metallic wire for AM (Click here to see details) or called WAAM ( Wire Arc Additive manufacture )

SPECIFICATIONS:

Power
  • 208- 240V, single phase, 50/60Hz
  • 2.5 KW AC motor
  • 380VAC, three-phase is available upon request
Wire Drawing Die
  • Two sets of 12-hole diamond die plates are included for precision wire drawing
    • The first set of hole diameters: 1.0, 0.9, 0.8, 0.7, 0.65, 0.60, 0.55, 0.50, 0.45, 0.425, 0.40, 0.375 ( mm)
    • The second set of hole diameters: 0.35, 0.325, 0.30, 0.275, 0.25, 0.225, 0.20 ( mm)
  • For the most metallic with RC < 50, can draw to 0.2 mm
  • A coolant praying head is included
  • The automatic winding device is built in
  • Note: Diamond die is consumable
  • Customize the die is available
Drawing Speed
  • 0 - 50 mm/minute adjustable
Compliance
  • CE Certified
  • NRTL certification is available upon request at an extra cost
Application Note
  • Never draw materials with hardness > 50HRC
  • For some material, you may need to anneal it in a furnace after each rolling to avoid work hardening



You may also like

-65%NEW
Thumbnail 1

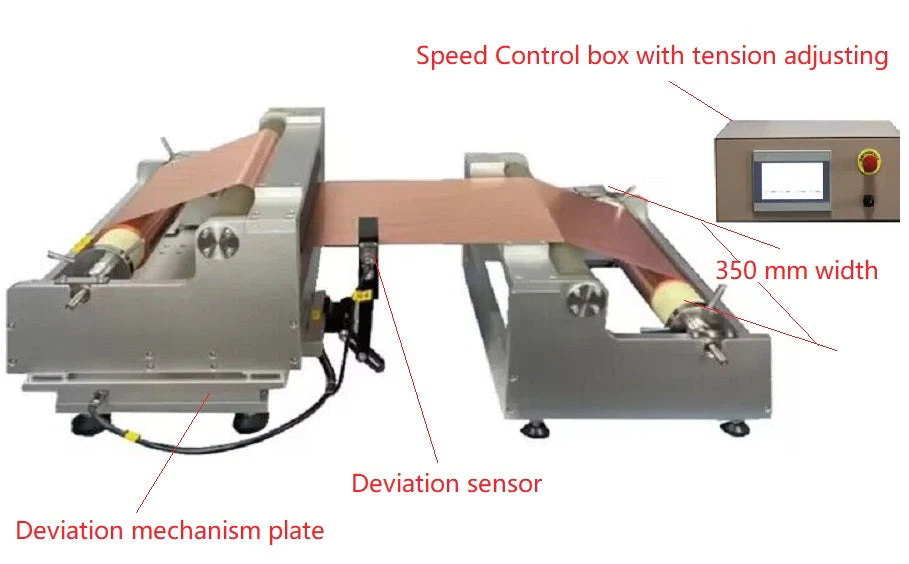

R2R Winding Device with Alignment up to 350 mm Web Width - MSK-RR-350

$22,998.00

$8,049.30

-65%NEW
Thumbnail 1Thumbnail 2

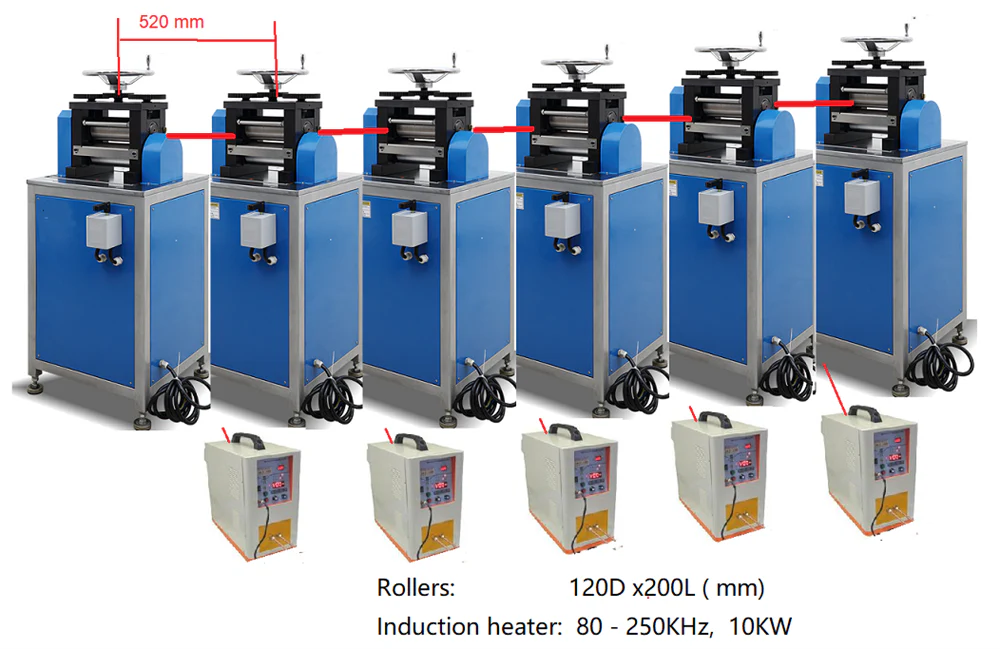

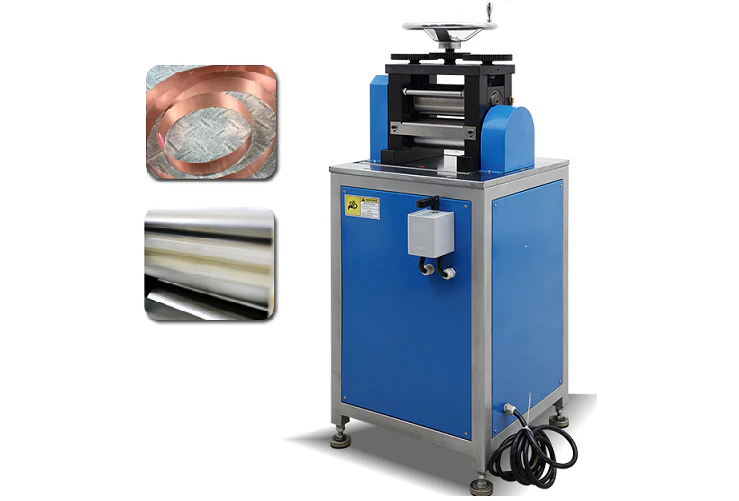

Continuous Rolling Press with 6 Stations and 5 Induction Heaters - MSK-1220-6S

$219,965.00

$76,987.75

NEW
Thumbnail 1Thumbnail 2

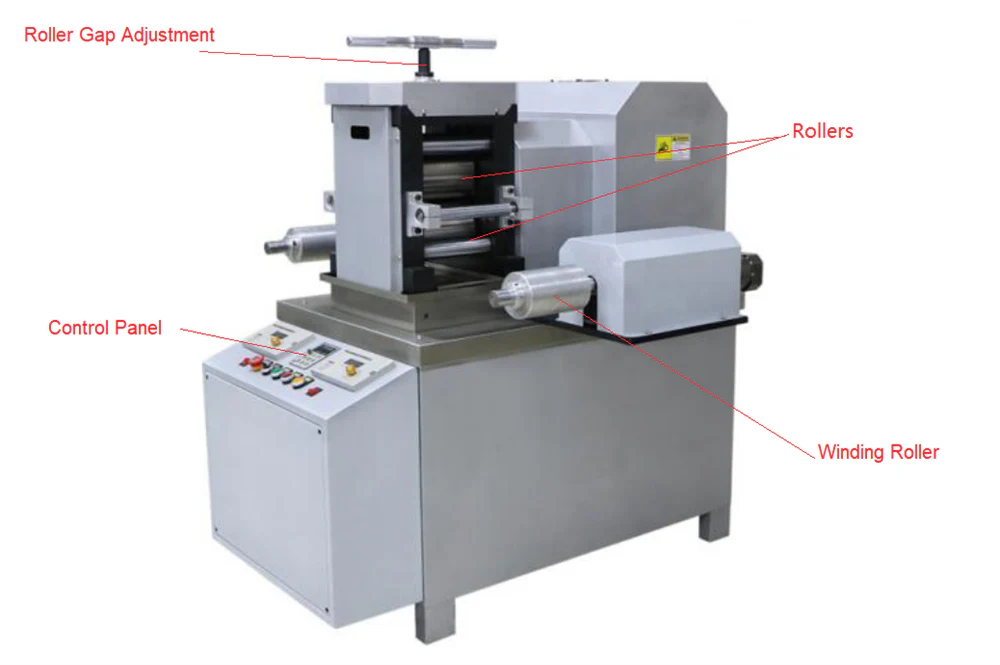

Roll to Roll Heavy Duty Rolling Press (180W x 142D, mm) w/ Variable Speed - MSK-1814-RR

$37,998.00

-65%NEW
Thumbnail 1Thumbnail 2

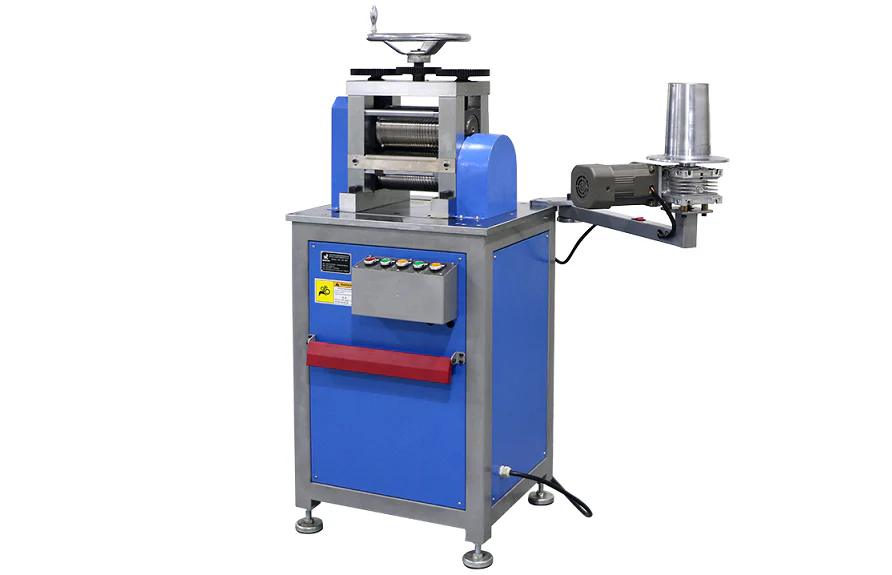

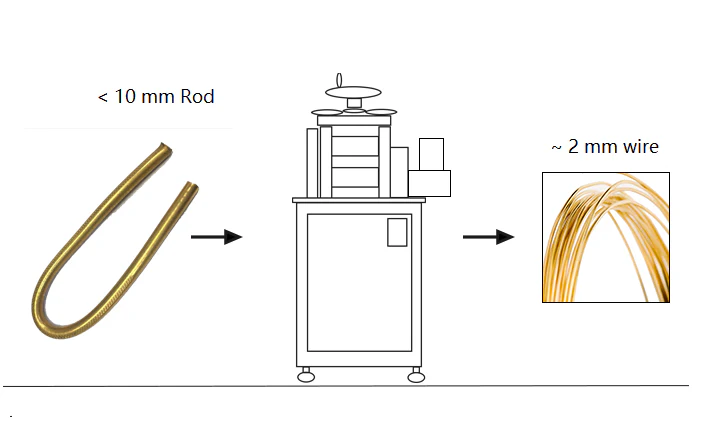

5.5 KW Wire Rolling Mill with Rewinding Collector for Metallic Wire from 10mm to 1 mm - YLJ-1220-W
