500°C Vacuum Lamination Press w/ Optional Platen from 4" to 15" Square and 20-40T -YLJ-5VHP
HomeStore

500°C Vacuum Lamination Press w/ Optional Platen from 4" to 15" Square and 20-40T -YLJ-5VHP

500°C Vacuum Lamination Press w/ Optional Platen from 4" to 15" Square and 20-40T -YLJ-5VHP

YLJ-VHP5 is a vacuum hot lamination hot press designed for wafer bonding, thin-film transformations, and LCP lamination with heating area 100 mm x 100 mm or 300 mm x 300 mm. It has the max. the working temperature of 500 ÂșC along with the max. the pressure of 20-40 Metric Tons.
Update: MTI YLJ series Pressers were CE approved on Mar. 2015 and integrated pressure guged in control panel since July 2019

SPECIFICATIONS:

Product Number
  • YLJ-VHP5-4
  • YLJ-VHP5-12
  • YLJ-VHP-16

Voltage and Power

 AC 208 - 240 V, 50/60 Hz
Single Phase 2,000 W		 AC 208 - 240 V, 50/60 Hz,
Single Phase 5,000 W		 AC 208-240 V, 50/60 Hz,
Single Phase 6,500 W
Heating Plantens Area 100x100 mm ( ~4x4") 300 x 300 mm (12x12") 400 x 400 mm (~16 x16")
Max. Opening of Two Plantens 30 mm 40 mm 40 mm
Chamber Size & Capacity 525 L x 480 W x 450 H (mm)
~ 75 Liters		 614 L x 574 W x 514 H (mm)
~ 170 Liters

700 L x650 W x 550H (mm)
~250 liter

Max. Pressing Force
on Heated Platen

 10 Metric Tons at 500°C
20 Metric Tons at RT		 20 Metric Tons at 500°C
30 Metric Tons at RT
30 Metric Tons at 500°C
40 Metric Tons at RT
Vacuum Hot Press Structure


  • Two flat heating platens made of high-temperature alloy with max. the working temperature of 500ÂșC
  • The Heating element is inserted into the center of the heating plates for fast heating
  • Two precision temperature controllers which control two heating plates separately with 30 programmable segments
  • Water cooling jackets are built on both the top & bottom of the heating plates for assisting cooling. Cooling water inlet and outlet are for 12mm O.D polyurethane tube.

Hydraulic Pump
  • The modified electric hydraulic press is installed under the table and connected to a vacuum chamber.
  • Max. the travel distance of the bottom ram: 15 mm
  • Automatic max. pressure controlled via a digital pressure gauge.
  • Pressure accuracy: +/-0.01 Mpa ( 0.1 kg/cmÂČ)
  • Water cooling (>16L/min) is required to cool the heating plates when the temperatureis over 200 ÂșC.

Temperature control and Pressure Display
  • Two precision temperature controllers with 30 programmable segments control the heating plates separately with +/1°C accuracy.
  • The temperature controllers have PID auto-tune function, over-temperature protection, and thermal couple broken protection
  • Max. Temperature: 500°C with inert gas or vacuum with accuracy +/-1°C
  • Max. Heating rate: 5°C/min
  • A digital pressure meter ( controller ) is built in the control panel. You can set pressure at the desired value which can stop the electric hydraulic press automatically

Vacuum Chamber
  • Electric hydraulic press and heating plates are placed inside the vacuum chamber
  • The vacuum chamber is made of SS304
  • 300mm dia. vacuum-sealed hinged type door with 150mm Dia. the quartz glass window is installed for easy sample loading and observation
  • Silicone O-ring can be used for all vacuum sealings
  • One precision digital vacuum gauge ( 10E-4 torr ) is installed on the vacuum chamber
Options

 Optional equipment is available at extra cost:
  • One recirculating water chiller for the cooling-heating plate from over-heated and faster cooling is required. please picture left to order.
  • Vacuum level for the mechanical pump can reach 300mTorr, and can reach 10E-4 torr with quality turbopump (Pleases click the picture left to choose one)


Compliance
  • CE Certified
  • NRTL or CSA certification is available upon request at the extra cost.
Application Note
  • The hot press can be used for measuring the thermoelectric generator module ( top hot and bottom cool) Pic. 1
     Pic. 1



Select Heating Plate Area
From $17,498.25

Original: $49,995.00

-65%
500°C Vacuum Lamination Press w/ Optional Platen from 4" to 15" Square and 20-40T -YLJ-5VHP—

$49,995.00

$17,498.25

More Images

500°C Vacuum Lamination Press w/ Optional Platen from 4" to 15" Square and 20-40T -YLJ-5VHP - Image 2

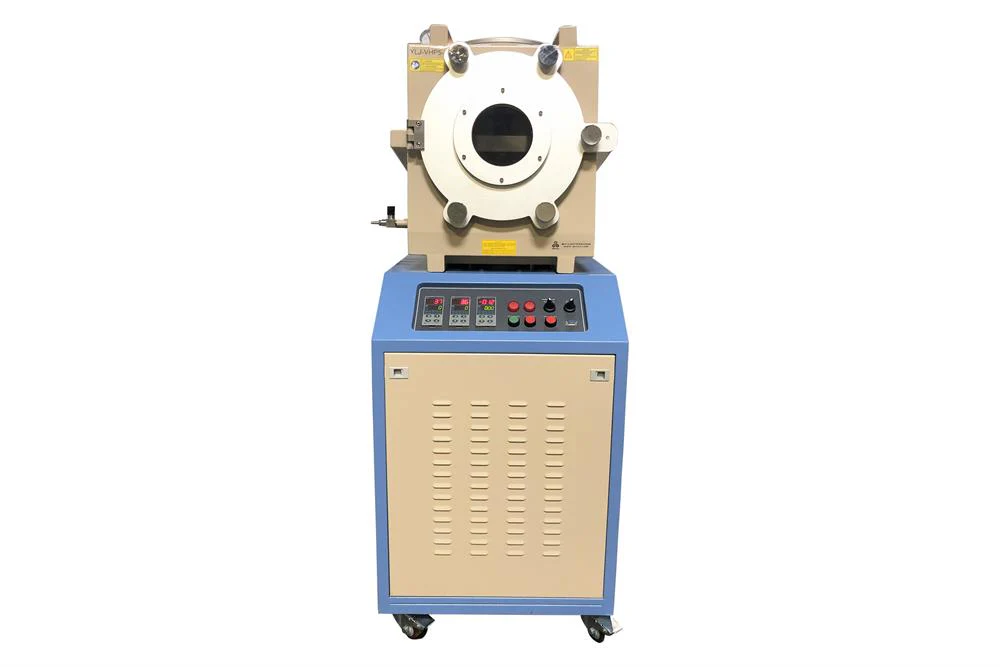

500°C Vacuum Lamination Press w/ Optional Platen from 4" to 15" Square and 20-40T -YLJ-5VHP - Image 3

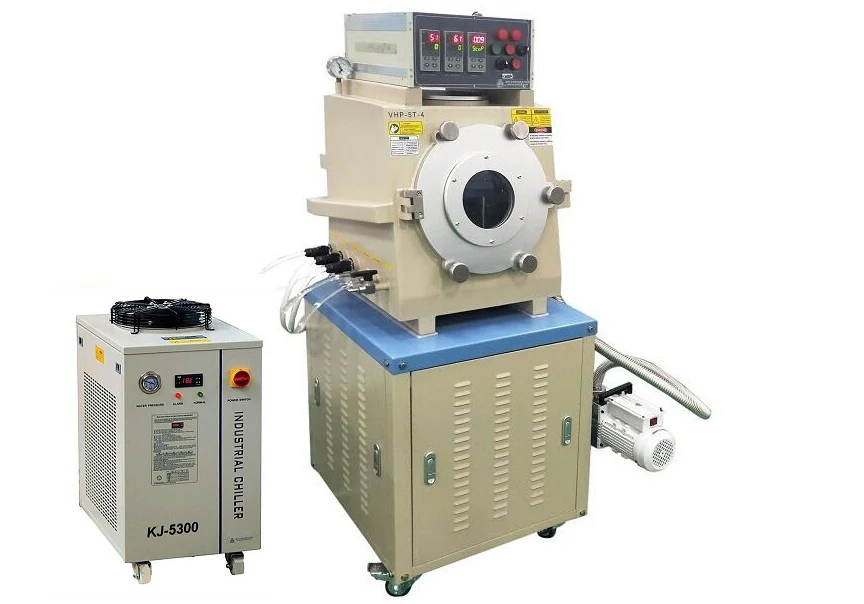

500°C Vacuum Lamination Press w/ Optional Platen from 4" to 15" Square and 20-40T -YLJ-5VHP - Image 4

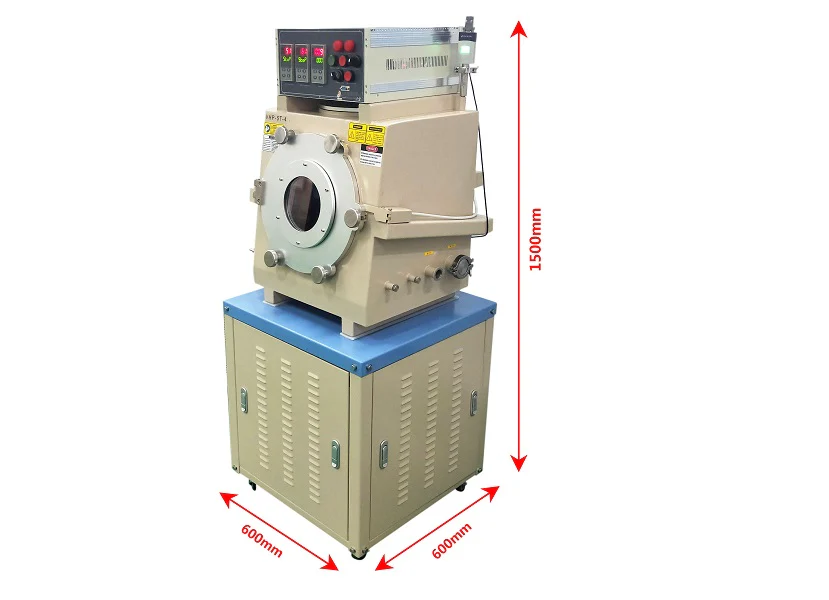

500°C Vacuum Lamination Press w/ Optional Platen from 4" to 15" Square and 20-40T -YLJ-5VHP - Image 5
