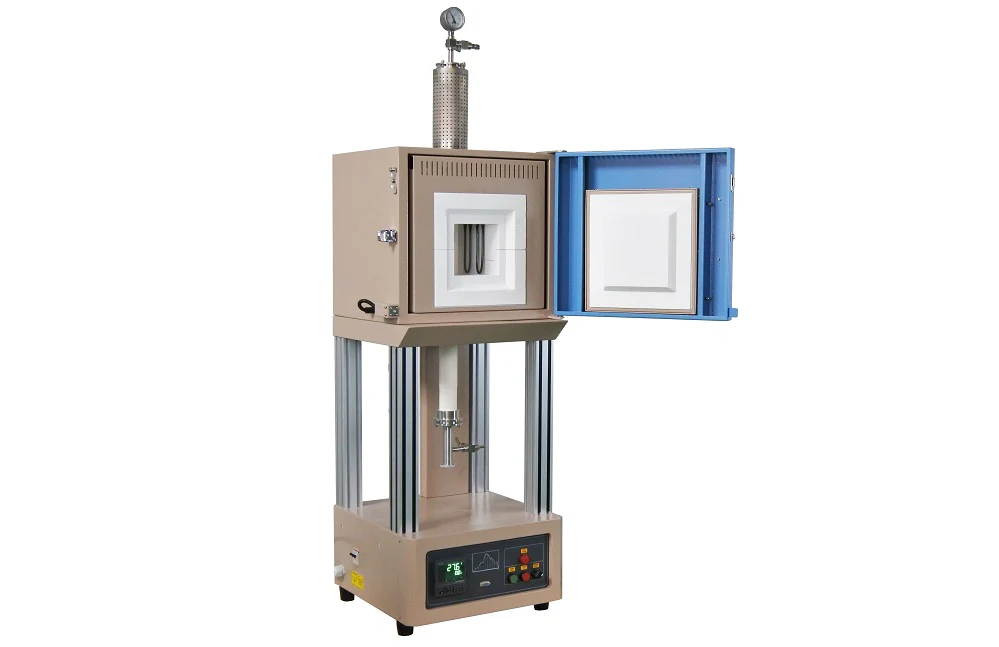

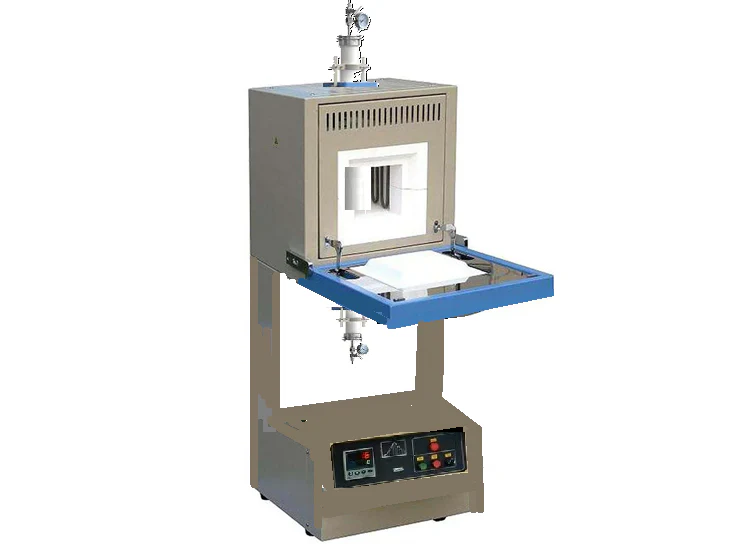

1500 °C Vertical Hybrid Furnace with 25 mm Alumina Tube For Fuel Cell of SOFC - KSL-1500X-VT

Furnace

• 120x120x120 mm  ( 4.7”x 4.7“ x 4.7") heating chamber with SiC heating elements
• Max. 1500 °C working temperature

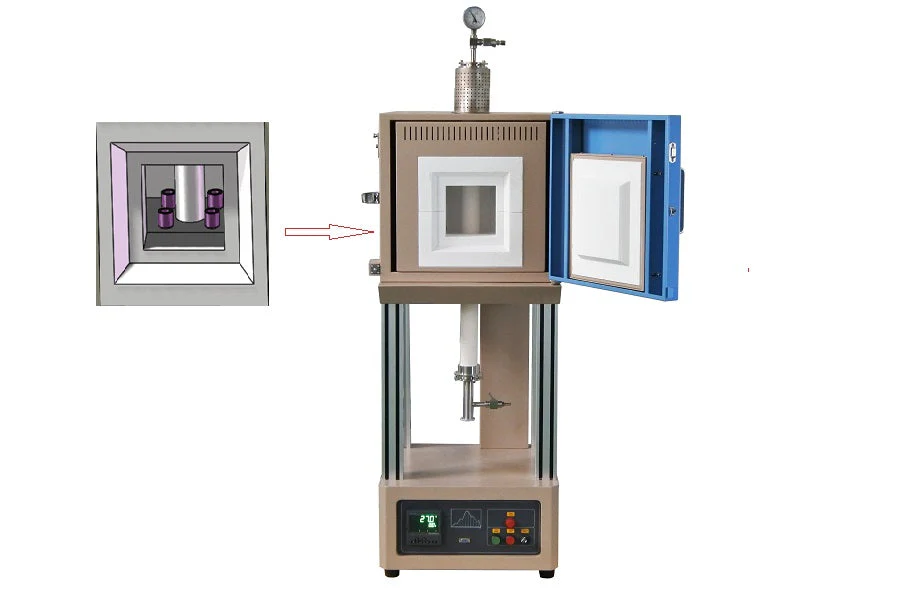

• Two 1" holes are opened on the bottom and top of the heating chamber to insert an alumina tube for processing a sample in a controlled atmosphere or testing the coin cell of SOFC

Power

•  Single Phase, 220V AC, 50/60 Hz
• Max. 2.5 KW

 Working Temperature:

• 1500 ^oC Max.
• Heating Rate:  10 ^oC / min Max.
• Uniform temperatre Zone:   50x50x50 mm within +/- 5%

Temperature Control

• 30-segment programmable temperature controller
• S-type thermal couple
• Built-in over-temperature alarm and thermocouple failure alarm
• +/- 1 ºC temperature control accuracy
• DB9 PC communication port is installed for the optional PC and the software

Processing Tube

• Tube Size: ID: 19 mm; OD: 25 mm x Length  760 mm
• 99.5 % high purity Al₂O₃ Ceramic.
• Two fibrous ceramic tube blocks are included for blocking heat radiation from the inside tube. (Ceramic blocks must be fully inserted into the furnace chamber before heating)

Vacuum Sealing Flanges

• One pair of sealing flanges with a double silicone high-temperature O-ring is included.
• Two SS needle valves and one dial vacuum gauge are installed with the flange for immediate use..

Vacuum Level

Fuel cell testing fixture (optional)

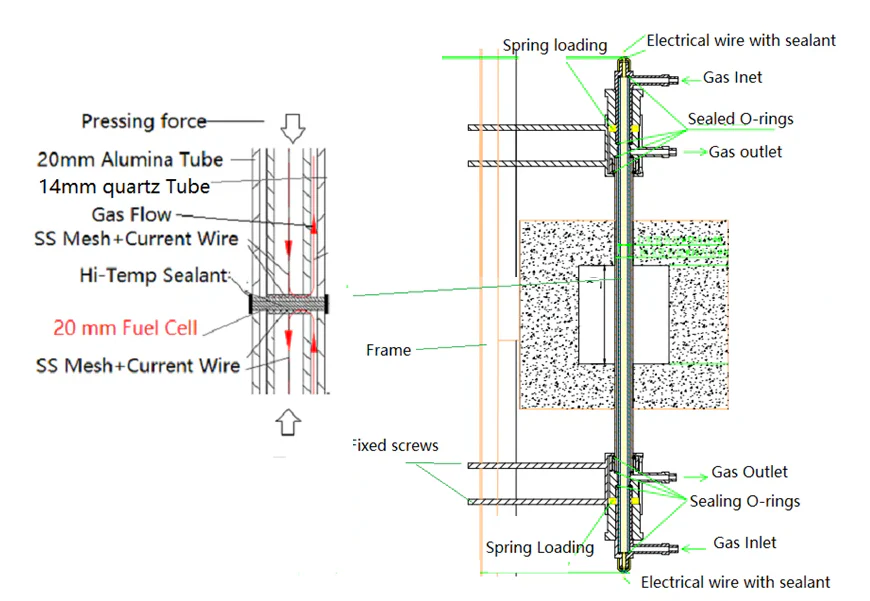

• Coin-type fuel cell ( 20 mm) testing fixture is optional, which includes   20 mm alumina tube, 14 mm quartz tube, a pair of flanges with gas inlet and outlet, a spring load, Pt wire and mess as well as high temperature adhesive for immediate use. Click the picture here to see the details
• You may need a gas delivery system. Please click here to order
•

Certificates

• CE Certified
• NRTL or CSA certification is available upon request at extra cost.

Warranty

• One-year limited wrranty
