Name: Heavy Duty (12") Precision Grinding / Polishing Machine with Complete Accessories - UNIPOL1210
Brand: MTI Online Store
SKU: unipol1210
Availability: InStock

🚚 Free Worldwide Shipping on All Orders!Shop Now

Home Store

Heavy Duty (12") Precision Grinding / Polishing Machine with Complete Accessories - UNIPOL1210

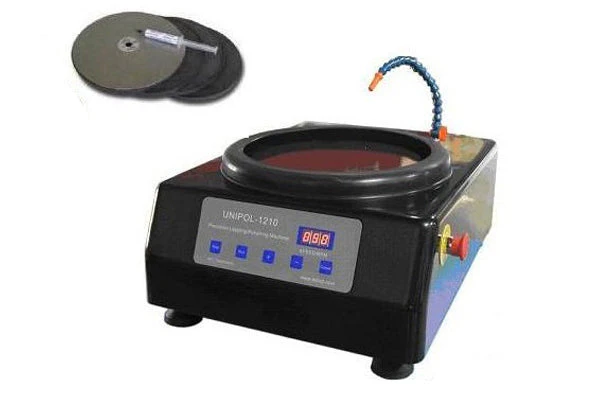

UNIPOL-1210 grinding/polishing machine is equipped with a 12" lapping plate and can be used as a standard manual grinder, or lapping/polishing machine for both flat sample and metallographic samples. It is the most cost-effective solution for the material research lab to prepare metallographic samples and failure analysis.

SPECIFICATIONS

Power	DC 24V An AC 110 - 240V to DC 24V power adapter is included.
Motor	300 W high torque DC motor with one year warranty
Features	Digital control panel with "touch button" operation Water resistance 12" Aluminum master plate with a magneticpad and steel buffer sheet for an easy diamond plate and sandpaper replacement
Variable speed	50 - 600 RPM with digital display
Emergency stop	Emergency stop possible
Dimensions	600 L x 460 W x 280 H (mm)
Hose Diameter	Water hoses (for water inlet and outlet) were included Hose I.D for the water outlet: 25mm Hose I.D for the water inlet: 15mm
Net weight	32 kg
Dimensions of shipment	48" x 40" x 25"
Weight of shipment	140 Lbs
Accessories	One 12" diameter aluminum metal plate was pre-installed with a magnetic pad. (EQ-MagnetP12) Five steel buffer sheets (Zinc coated) for carrying sandpaper and polishing pad, which can be attached to the magnetic plate stable and easy detachment Two 12" PSA Diamond Lapping plates with 600 mesh and 800 mesh separately One 12" PSA black polishing pads for final polishing One 10g diamond paste for testing polishing. Optional: Please click the link below to order diamond polishing paste or sandpaper
Compliance	CE Certified NRTL certification is available at the extra cost
Operation Instructions
Warranty	One year limited with lifetime support Rusting and damage due to improper storage condition or maintenance are not covered by warranty

STANDARD PACKAGE:
(Updated 2017.02.23)

Part No	Description	Quantity	Picture
EQ-Unipol-1210	Heavy Duty (12") Precision Grinding / Polishing Machine	1 unit
Unipol-1210-1	Pre-installed 12" diameter aluminum metal plate with a magnetic pad. (EQ-MagnetP12)	1 set
Unipol-1210-2	Anti-Splash Plastic safeguard ring (Pre-installed)	1 set
EQ-PP-12PSA-PC	Ø12" Polishing Pad (Frosted Leather) (Black)	1 set
EQ-PFP012	12" Polyamide Foam Polishing Pad (Brown)	1 set
EQ-PP-12SL	Ø12" Polishing Pad (Synthetic Leather) (White)	1 set
EQ-SteelBF12	Five steel buffer sheets (Zinc coated) for carrying sandpaper and polishing pad, which can be attached to magnetic plate stable	5 pcs
EQ-MW	One 10g diamond paste for testing polishing	1 set
EQ-DGP	Two 12" PSA Diamond Lapping plates with 600 mesh and 800 mesh separately	1 set
Consumables & Accessories (Click to view recommended spare parts list) * Optional parts are not included in the standard package. You have to order separately. Prices are subject to change without notification.
