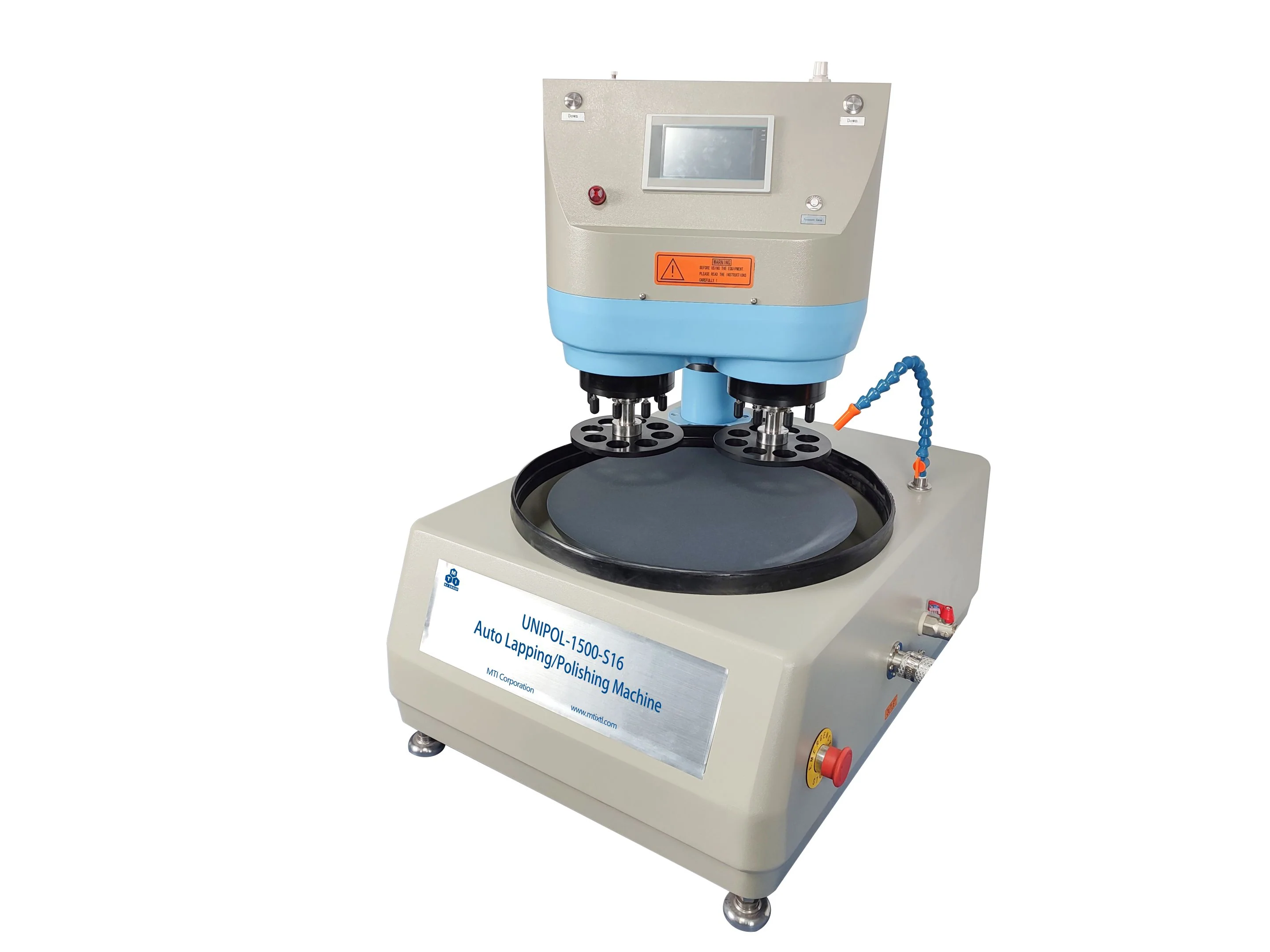

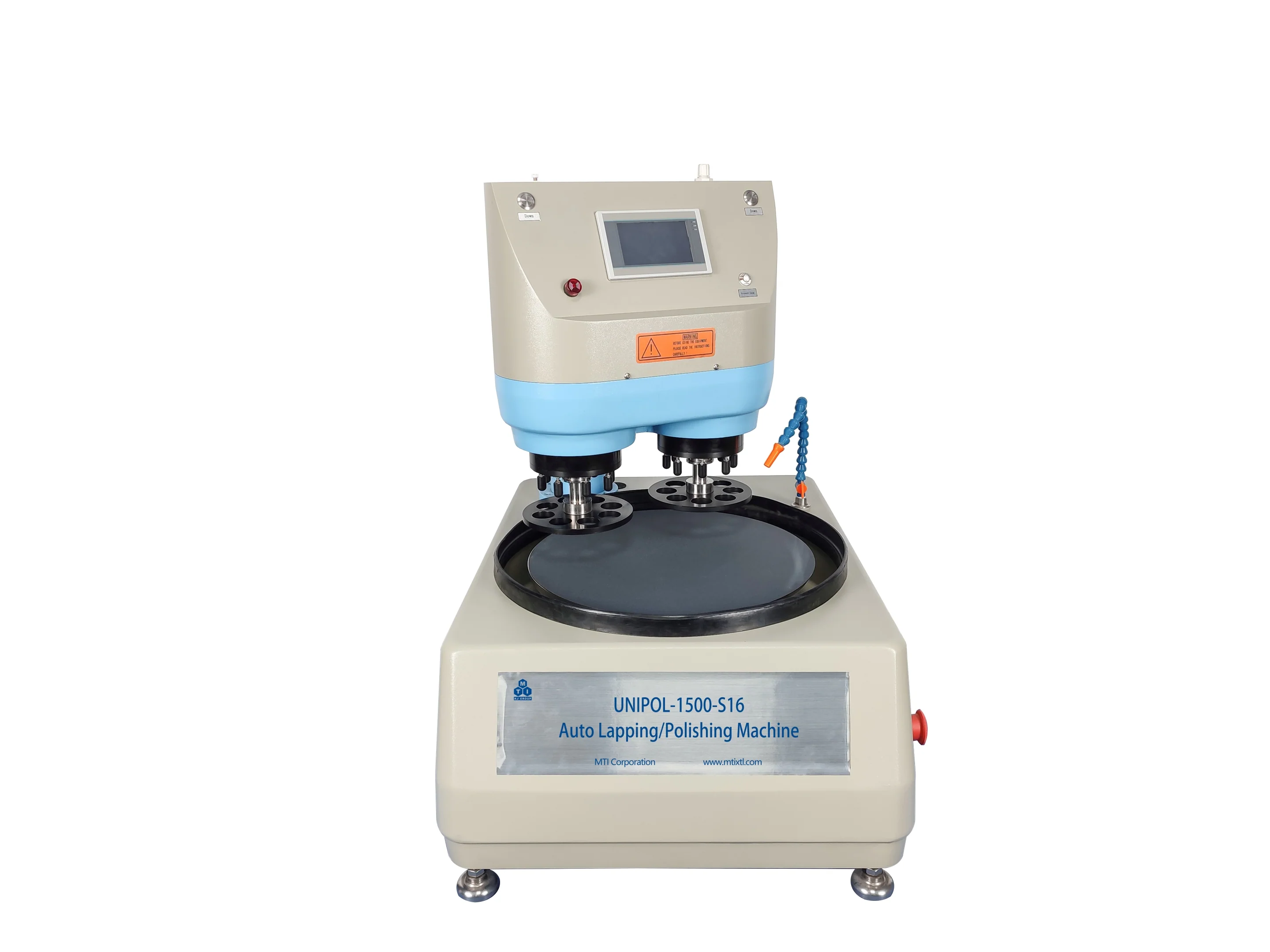

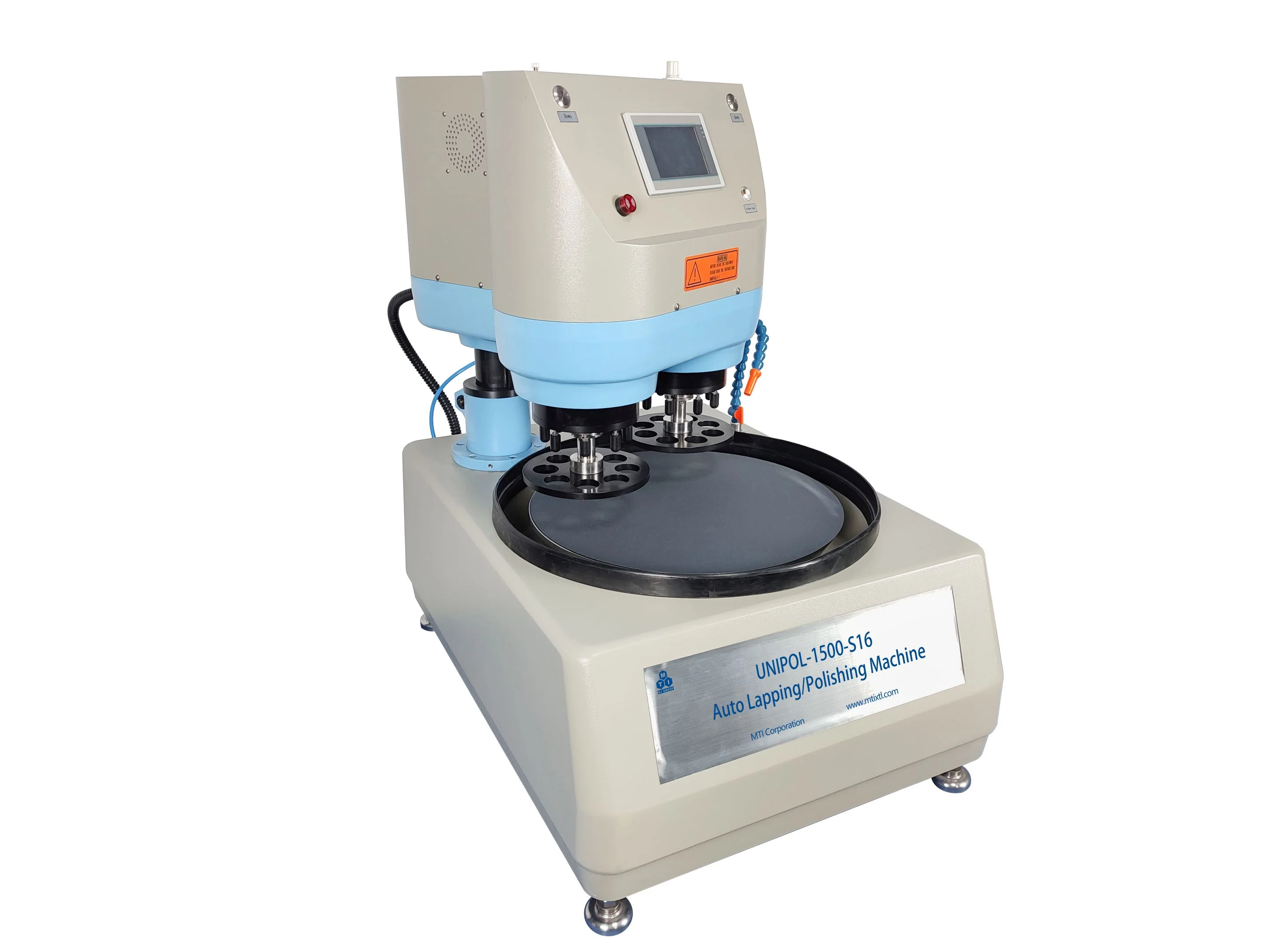

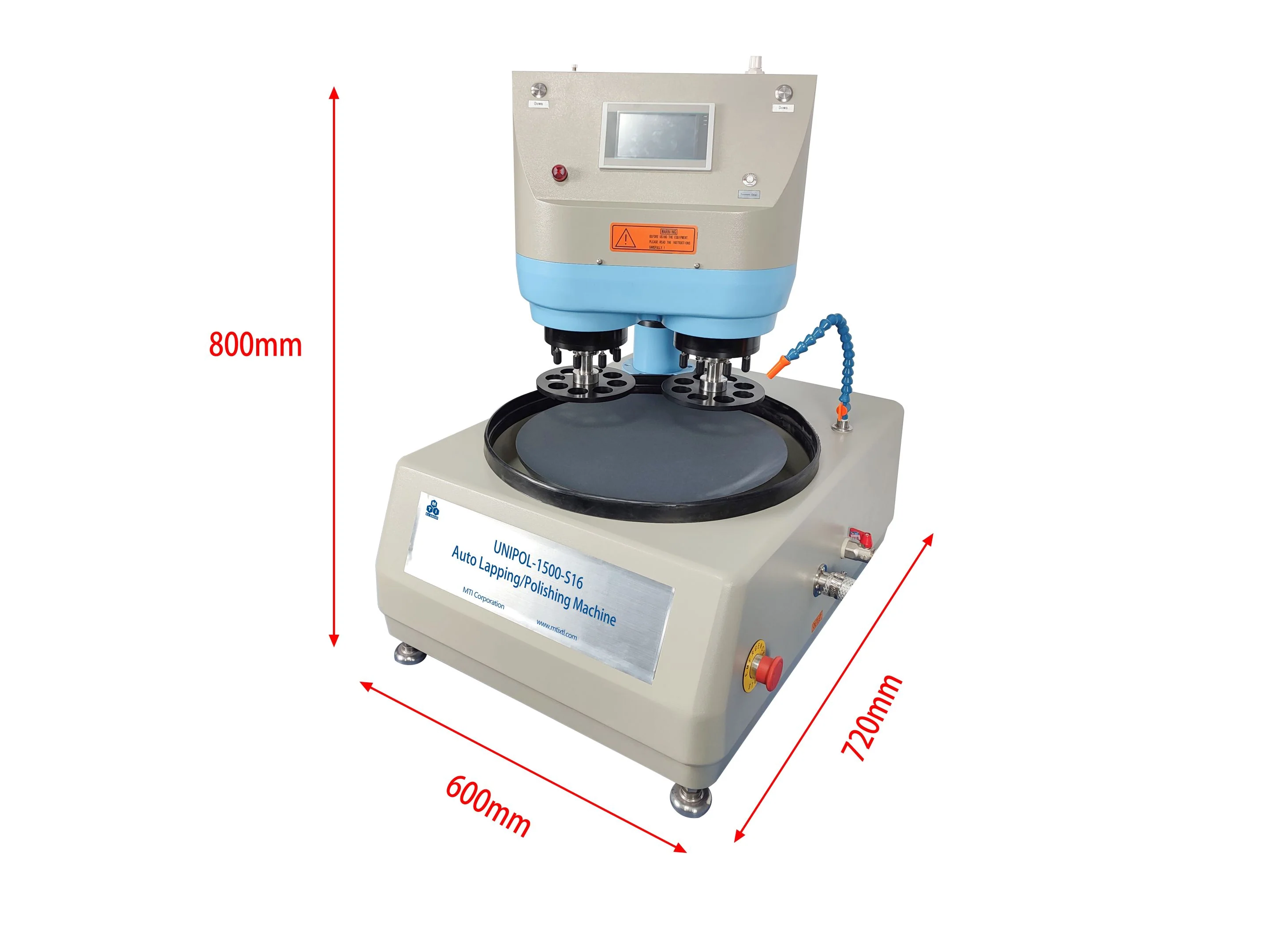

16 samples Automatic Polisher for High Throughput Metallographic Sample Preparation - Unipol-1500-S16

Unipol-1500-S is a 15" automatic pressure-controlled lapping and polishing machine with two sample holders which can polish 16 samples (1" diameter Max.) at one batch. It is an excellent tool for the high-throughput research of alloy metallography. It can be used for lapping or polishing various material samples, such as metal, crystal, glass, ceramic, refractory, rocks, and polymers. The user can adjust the pressing force between the top-loading plate and the bottom mater lapping plate and set the polishing timer to achieve automatic alloy polishing.

SPECIFICATIONS

Features	One 15" Dia. mater lapping plate (bottom) and two sample plates (top), which can hold 16 pcs sample (<25 mm Dia.) at one batch Color touch screen controller for polishing parameter settings  Adjustable the pressing force (0.5 - 20 kg force) for different polishing conditions and materials Adjustable the speed for both sample loading plate and polishing plates Adjustable the time for polishing Automatic slurry feeding with controlled speed is available with an optional slurry feeder
Power	208 - 240 VAC, 50 / 60 Hz, 1500 VA 120 VAC is also available upon request.
Sample Holder (Top)	Size: Ø150 mm for eight 1" sample Speed: 10 - 100 rpm adjustable Total 16 samples Optional size Ø22-35 mm
Polishing Plate (Bottom)	Size: 380 mm Dia. Speed: 50-300 rpm adjustable
Pressing Force	0.5 - 20 kgf
Control Panel	Start menu (Pic #1), auto mode menu (Pic #2), manual mode menu (Pic #3)
Optional	4 channel suspension slurry feeder is recommended mounting press for metallographic sample preparation (Click Pic #2 for details) Consumables for lapping/polishing, such as sandpaper discs (Pic #4), polishing pads (Pic #5), magnetic & buffer steel plates (Pic #6) and diamond polishing paste (Pic #7), can be ordered at MTI Pic 1 Pic 2 Pic 3 Pic 4 Pic 5 Pic 6 Pic 7
Compliance	CE Certified NRTL certification is NOT available temporarily.
