Two-phase Step Motor for MTI Product
HomeStore

Two-phase Step Motor for MTI Product

Two-phase Step Motor for MTI Product

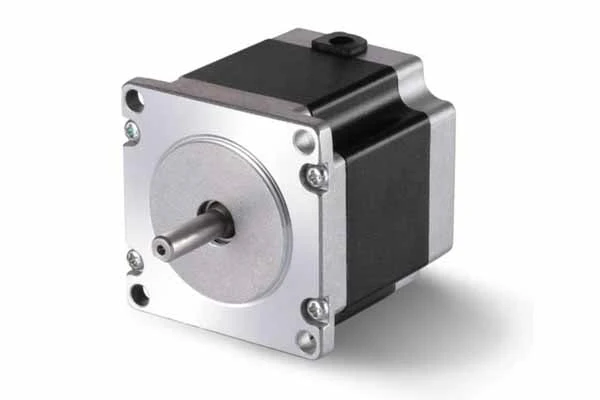

Two-phase Stepper Motor for Model MTI-STX202, MTI-STX202-SM

Specification:

Type: Two-phase Stepper Motor for Model MTI-STX202, MTI-STX202-SM
Replacment
Small Precision Diamond Wire Saw With Touch Screen Control -- STX-202A
5-Position Programmable Dip Coater with Speed 1-200 mm/min & Heating Chamber 200Ā°C max. - PTL-OV5P
Specifications


Model ForĀ
Step Angle
Ā°
Length
L(mm)
Holding Torque
(N.m)
Current
(A/Phase)
Resistance
(Ī©)
Inductance
(mH)
Rotor inertia
(g.cm2)
Weight
(Kg)
Diameter of axle
(mm)
BS57HB56-02 STX-202 1.8 56 0.9 2.0 0.75 1.1 300 0.7

 6.35
BS57HB56-01 PTL-OV5P 1.8 1.0
Stepper Motor/Driver DMD402A



Connections
Must order 7-pin with the motor
Connecting Male and Female Metal Aviation Plug Replacement for MTI , MTI-APlug
$43.75

Original: $125.00

-65%
Two-phase Step Motor for MTI Productā€”

$125.00

$43.75

Two-phase Step Motor for MTI Product

Two-phase Stepper Motor for Model MTI-STX202, MTI-STX202-SM

Specification:

Type: Two-phase Stepper Motor for Model MTI-STX202, MTI-STX202-SM
Replacment
Small Precision Diamond Wire Saw With Touch Screen Control -- STX-202A
5-Position Programmable Dip Coater with Speed 1-200 mm/min & Heating Chamber 200Ā°C max. - PTL-OV5P
Specifications


Model ForĀ
Step Angle
Ā°
Length
L(mm)
Holding Torque
(N.m)
Current
(A/Phase)
Resistance
(Ī©)
Inductance
(mH)
Rotor inertia
(g.cm2)
Weight
(Kg)
Diameter of axle
(mm)
BS57HB56-02 STX-202 1.8 56 0.9 2.0 0.75 1.1 300 0.7

 6.35
BS57HB56-01 PTL-OV5P 1.8 1.0
Stepper Motor/Driver DMD402A



Connections
Must order 7-pin with the motor
Connecting Male and Female Metal Aviation Plug Replacement for MTI , MTI-APlug

Product Information

Shipping & Returns

Description

Two-phase Stepper Motor for Model MTI-STX202, MTI-STX202-SM

Specification:

Type: Two-phase Stepper Motor for Model MTI-STX202, MTI-STX202-SM
Replacment
Small Precision Diamond Wire Saw With Touch Screen Control -- STX-202A
5-Position Programmable Dip Coater with Speed 1-200 mm/min & Heating Chamber 200Ā°C max. - PTL-OV5P
Specifications


Model ForĀ
Step Angle
Ā°
Length
L(mm)
Holding Torque
(N.m)
Current
(A/Phase)
Resistance
(Ī©)
Inductance
(mH)
Rotor inertia
(g.cm2)
Weight
(Kg)
Diameter of axle
(mm)
BS57HB56-02 STX-202 1.8 56 0.9 2.0 0.75 1.1 300 0.7

 6.35
BS57HB56-01 PTL-OV5P 1.8 1.0
Stepper Motor/Driver DMD402A



Connections
Must order 7-pin with the motor
Connecting Male and Female Metal Aviation Plug Replacement for MTI , MTI-APlug
