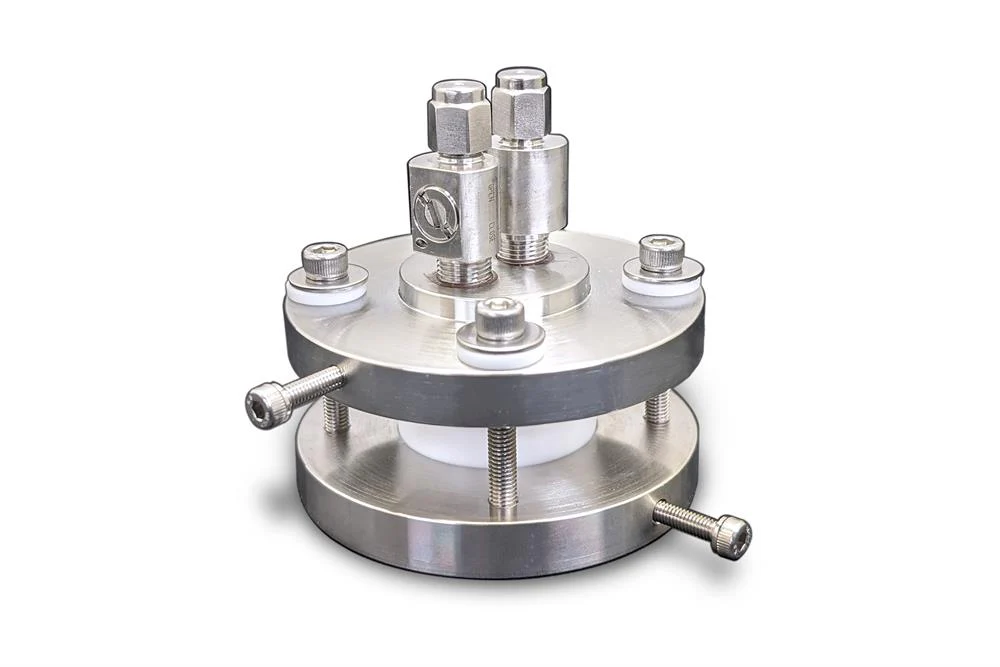

Split Test Cell for Lithium Air Battery Research: Optional Au Coating - EQ-STC-LI-AIR

The EQ-STC-LI-AIR is Split Test Cell for Lithium-Air Battery Research. You can control airflow pressure and test various anode and cathode materials.
This cell has been successfully demonstrated in the Science paper of "A room temperature rechargeable Li2O-based lithium-air battery enabled by a solid electrolyte".
Note: Customized (Au coated) test cells are non-returnable and non-exchangeable.


SPECIFICATIONS:

Structure	SS304 steel Structure with internal Silver-Clad surface treatment ensures high electrical conductivity and good corrosion protection Two electrodes design Electrolyte corrosive-proof PTFE Guide Sleeve and Sealing O-rings Compact design fits in any benchtop glove boxes The grooved area on the lower split to the fixed position of the anode electrode
Cell Thickness	1~3mm (cathode + separator + anode)
Bottom Recess Area	16mm Dia. (The recessed area can accommodate the electrodes with size up to 16mm Dia.)
Max. Working Temperature	200°C
Valves & Fittings	Two Stainless Steel needle valves and 1/16" tube connector is installed on both gas inlet and outlet
Dimensions	Φ80×62mm
Optional	Anti-corrosive Au coating on the cell internal and inserts is an option. $696 surcharge will apply. Please click here to order your own gold plating kit. Please order spare 1/16 Fittings.
Demo Video (new version in-situ cell may be different from the one shown in video)
