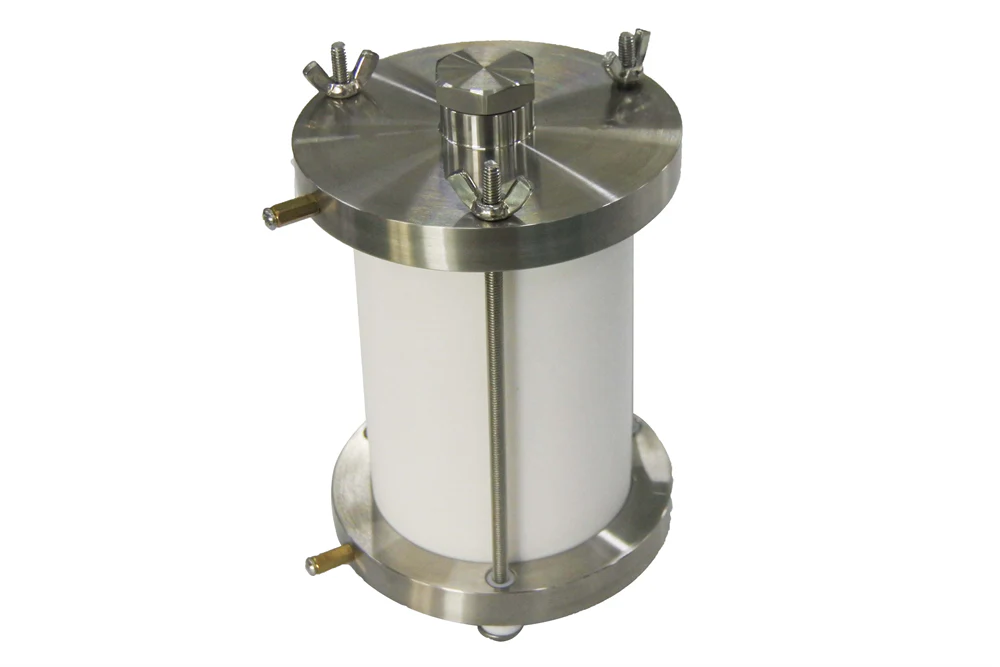

Split Type Cell for 4680 Cylindrical Battery SC-4680

SC-4680 is a split-type kit specially designed for the study of 4680 cylindrical batteries. Easy and fast disassembly and assembly for testing electrode cycling behavior and structural changes
Note: Customized (Au coated) test cells are non-returnable and non-exchangeable.
MTI has granted the patent 2016205320104 for the Split Type Cells for the Cylindrical Batteries with PTFE/Quartz Liner since June 2016.

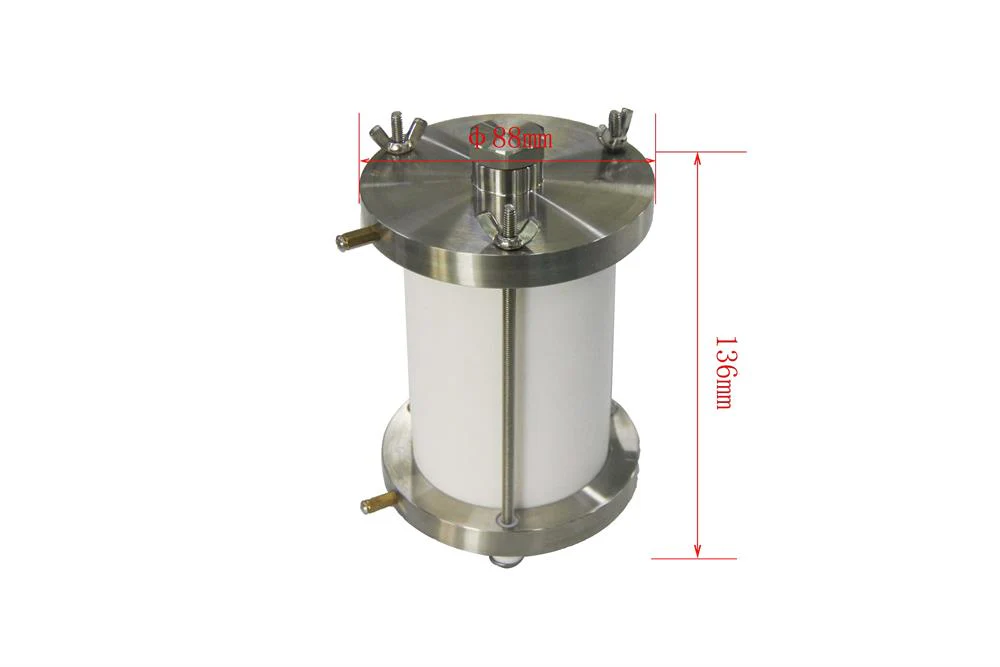

Dimensions	I.D. of PTFE Body (liner): 46mm Height of PTFE Body: 80mm	OD of the cap: 88mm                      Height the kit: 136mm Screw size is M4

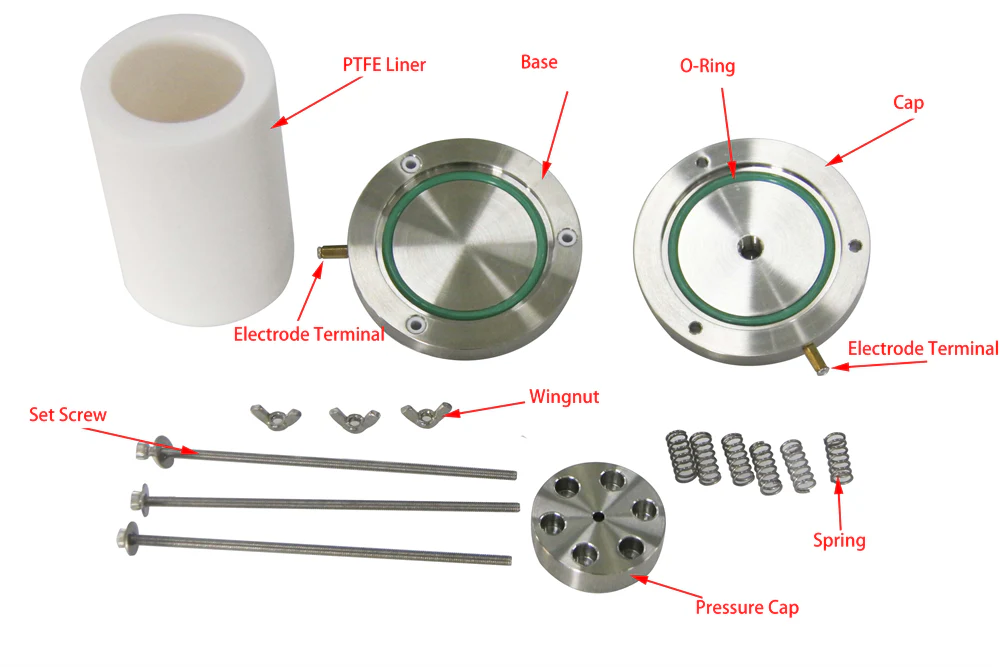

Material	Full Stainless steel 304 end caps Electrolyte corrosion-proof PTFE liner(quartz with special request) can withstand temperature up to 200ºC Sealed by electrolyte corrosion-proof fluorinated rubber O-rings
